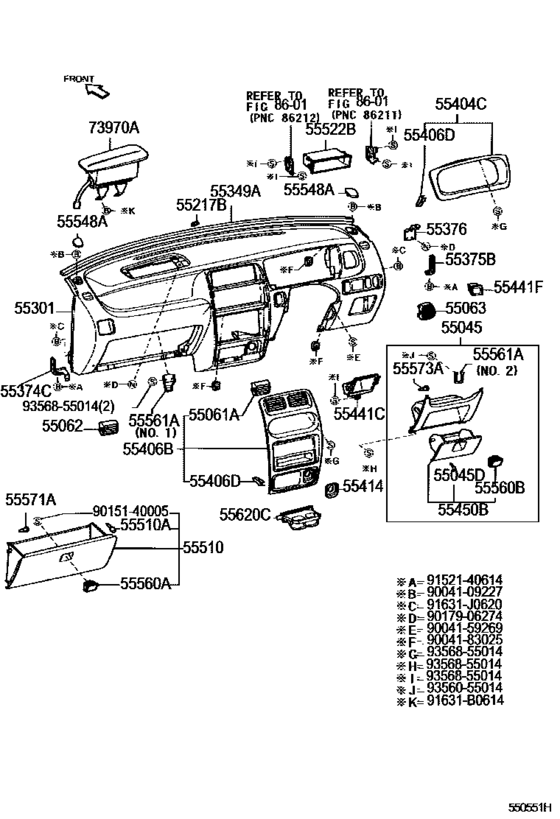

Instrument Panel & Glove Compartment ([09.1998 - 05.2000] (9809-0005)) Diagram Toyota DUET
- Year
- 1998 - 2000
- Sales region
- Japan
- Frame
- M100A
- grade
- X
- ENGINE
- EJDE
- TRANSMISSION
- ATM
- From
- 09.1998
- To
- 05.2000
- Gear Shift Type
- 4AT
- Fuel Induction
- LVVT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55045
|
55045
55045-97201-03 Panel Sub-Assy, Instrument Panel Finish, Lower[09.1998 - 12.2001] M10#,11# DARK GRAY,TRIMS6 |
55045-97201-03 |
US $42.81 |
||
|
55045D
|
55045D
90045-40163 Cushion, Glove Compartment[09.1998 - 12.2001] M10#,11# |
90045-40163 |
US $3.35 |
||
|
55061A
|
55061A
55061-97201 Register Sub-Assy, Instrument Panel[09.1998 - 05.2000] M100,110 |
55061-97201 |
US $21.84 |
||
| replacement | |||||
|
55061A
|
55061A
55061-97201-01 Register Sub-Assy, Instrument Panel[09.1998 - 05.2000] M100,110 |
55061-97201-01 |
US $21.84 |
||
|
55062
|
55062
55062-87203-03 Register Sub-Assy, Instrument Panel, N0.2[09.1998 - 12.2001] M10#,11# DARK GRAY,TRIMS6 |
55062-87203-03 |
US $21.11 |
||
| replacement | |||||
|
55062
|
55062
55062-87203-S2 Register Sub-Assy, Instrument Panel, N0.2[09.1998 - 12.2001] M10#,11# DARK GRAY,TRIMS6 |
55062-87203-S2 |
US $22.13 |
||
|
55063
|
55063
55063-97201 Register Sub-Assy, Instrument, No.3[09.1998 - 05.2000] M100,110 |
55063-97201 |
US $21.11 |
||
| replacement | |||||
|
55063
|
55063
55063-97201-03 Register Sub-Assy, Instrument, No.3[09.1998 - 05.2000] M100,110 |
55063-97201-03 |
US $28.10 |
||
|
55217B
|
55217B
55217-97201 Retainer, Dash Panel Silencer[09.1998 -] M10#,11# |
55217-97201 |
US $1.89 |
||
|
55301
|
55301
55311-97201-03 Panel Sub-Assy, Instrument[09.1998 - 12.2001] M10#,11# DARK GRAY,TRIMS6 |
55311-97201-03 |
US $610.06 |
||
|
55349A
|
55349A
55349-97202 Cushion, Instrument Panel[03.1999 - 06.1999] M100,110 |
55349-97202 |
US $4.51 |
||
| replacement | |||||
|
55349A
|
55349A
55349-97401 Cushion, Instrument Panel[03.1999 - 06.1999] M100,110 |
55349-97401 |
US $20.24 |
||
|
55349A
|
55349A
55349-97203 Cushion, Instrument Panel[07.1999 - 05.2000] M100,110 |
55349-97203 |
US $9.17 |
||
|
55374C
|
55374C
55374-97203 Bracket, Instrument Panel Lower Mounting, No.1[09.1998 - 12.2001] M10#,11# |
55374-97203 |
US $9.46 |
||
|
55375B
|
55375B
55375-97203 Bracket, Instrument Panel Lower Mounting, No.2[09.1998 -] M10#,11# |
55375-97203 |
US $6.55 |
||
|
55376
|
55376
55376-97201 Bracket, Instrument Panel Mounting, No.1[09.1998 - 12.2001] M10#,11# |
55376-97201 |
US $18.64 |
||
|
55404C
|
55404C
55404-97201 Panel Sub-Assy, Instrument Cluster Finish, No.2[09.1998 - 05.2000] M100,110 |
55404-97201 |
US $72.80 |
||
|
55404C
|
55404C
55404-97202 Panel Sub-Assy, Instrument Cluster Finish, No.2[09.1998 - 12.2000] M101,111;M100,110..X ﾓｸﾒ |
55404-97202 |
US $192.19 |
||
|
55406B
|
55406B
55406-97201 Panel Sub-Assy, Instrument Cluster Finish, Lower Center[09.1998 - 05.2000] M100,110 |
55406-97201 |
US $97.55 |
||
|
55406B
|
55406B
55406-97203 Panel Sub-Assy, Instrument Cluster Finish, Lower Center[09.1998 - 12.2000] M101,111;M100,110..X ﾓｸﾒ |
55406-97203 |
US $251.89 |
||
|
55406D
|
55406D
90044-68091 Clip(For Panel, Instrument Cluster Finish)[09.1998 - 12.2001] M10#,11# |
90044-68091 |
US $1.60 |
||
| replacement | |||||
|
55406D
|
55406D
90044-68324 Clip(For Panel, Instrument Cluster Finish)[09.1998 - 12.2001] M10#,11# |
90044-68324 |
US $1.92 |
||
|
55414
|
55414
55414-97201
Bezel, Cigar Lighter Hole
[09.1998 - 12.2001] M10#,11# |
55414-97201 |
— | ||
|
55441C
|
55441C
55441-97201-03 Box, Instrument Panel Coin[09.1998 - 12.2001] M10#,11# DARK GRAY,TRIMS6 |
55441-97201-03 |
US $27.66 |
||
|
55450B
|
55450B
55450-97201-03 Box Assy, Coin[09.1998 - 12.2001] M10#,11# DARK GRAY,TRIMS6 |
55450-97201-03 |
US $25.19 |
||
|
55510
|
55510
55501-97201-03 Door Assy, Glove Compartment[09.1998 - 12.2001] M10#,11# DARK GRAY,TRIMS6 |
55501-97201-03 |
US $177.63 |
||
|
55510A
|
55510A
90045-40163 Cushion, Glove Compartment[09.1998 - 12.2001] M10#,11# |
90045-40163 |
US $3.35 |
||
|
55522B
|
55522B
55522-87209 Cover, Radio Tuner Opening[09.1998 - 05.2000] M100,110..V; M100,110..X ﾅｼ(ﾗｼﾞｵ) |
55522-87209 |
US $23.88 |
||
|
55548A
|
55548A
55545-97201-03 Cover, Instrument Panel Hole[09.1998 - 12.2001] M10#,11# DARK GRAY,TRIMS6,右側 |
55545-97201-03 |
US $6.70 |
||
|
55548A
|
55548A
55546-97201-03 Cover, Instrument Panel Hole[09.1998 - 12.2001] M10#,11# DARK GRAY,TRIMS6,左側 |
55546-97201-03 |
US $6.70 |
||
|
55560A
|
55560A
55560-87702-23 Lock Assy, Glove Compartment Door[09.1998 - 12.2001] M10#,11# DARK GRAY,TRIMS6 |
55560-87702-23 |
US $14.41 |
||
| replacement | |||||
|
55560A
|
55560A
55560-97201-33 Lock Assy, Glove Compartment Door[09.1998 - 12.2001] M10#,11# DARK GRAY,TRIMS6 |
55560-97201-33 |
US $22.42 |
||
|
55560B
|
55560B
55560-87702-23 Lock Assy, Glove Compartment Door[09.1998 - 12.2001] M10#,11# DARK GRAY,TRIMS6 |
55560-87702-23 |
US $14.41 |
||
| replacement | |||||
|
55560B
|
55560B
55560-97201-33 Lock Assy, Glove Compartment Door[09.1998 - 12.2001] M10#,11# DARK GRAY,TRIMS6 |
55560-97201-33 |
US $22.42 |
||
|
55561A
|
55561A
55561-97201 Striker, Glove Compartment Door Lock[09.1998 - 12.2001] M10#,11# ＮＯ．１ |
55561-97201 |
US $10.63 |
||
|
55561A
|
55561A
55561-97202 Striker, Glove Compartment Door Lock[09.1998 - 12.2001] M10#,11# ＮＯ．２ |
55561-97202 |
US $5.68 |
||
|
55571A
|
55571A
55571-87101 Hinge, Glove Compartment Door[09.1998 - 12.2001] M10#,11# |
55571-87101 |
US $6.99 |
||
|
55573A
|
55573A
55571-87101 Hinge, Glove Compartment Door[09.1998 - 12.2001] M10#,11# |
55571-87101 |
US $6.99 |
||
|
55620C
|
55620C
55620-97201 Holder, Instrument Panel Cup[09.1998 - 05.2000] M100,110 |
55620-97201 |
US $62.32 |
||
| replacement | |||||
|
55620C
|
55620C
55620-97201-C0 Holder, Instrument Panel Cup[09.1998 - 05.2000] M100,110 |
55620-97201-C0 |
US $81.54 |
||
|
73970A
|
73970A
73970-97201-03 Air Bag Assy, Instrument Panel Passenger[09.1998 - 05.2000] M100,110 DARK GRAY,TRIMS6 |
73970-97201-03 |
US $1,718.08 |
||
|
91631B0614
|
91631B0614
91631-B0614 BOLT WWASHER |
91631-B0614 |
from US $0.92 |
||
|
91631J0620
|
91631J0620
91631-J0620 New Genuine Part |
91631-J0620 |
US $0.44 |
||
|
9004109227
|
9004109227
90041-09227 New Genuine Part |
90041-09227 |
US $3.06 |
||
|
9004159269
|
9004159269
90041-59269 New Genuine Part |
90041-59269 |
US $1.60 |
||
|
9004183025
|
9004183025
90041-83025 New Genuine Part |
90041-83025 |
US $1.92 |
||
|
9015140005
|
9015140005
90151-40005 New Genuine Part |
90151-40005 |
US $0.44 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9152140614
|
9152140614
91521-40614
New Genuine Part
|
91521-40614 |
— | ||
|
9356055014
|
9356055014
93560-55014 SCREW |
93560-55014 |
from US $0.70 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
