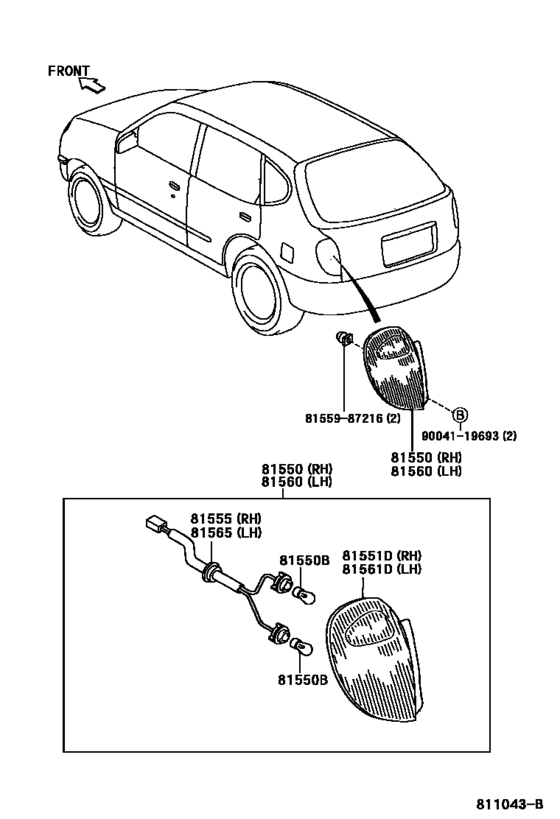

Rear Combination Lamp ([09.1998 - 05.2000] (9809-0005)) Diagram Toyota DUET
- Year
- 1998 - 2000
- Sales region
- Japan
- Frame
- M100A
- grade
- X
- ENGINE
- EJDE
- TRANSMISSION
- ATM
- From
- 09.1998
- To
- 05.2000
- Gear Shift Type
- 4AT
- Fuel Induction
- LVVT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-97206 Lamp Assy, Rear Combination, Rh[09.1998 - 05.2000] M100,110 |
81550-97206 |
US $262.08 |
||
|
81550B
|
81550B
90049-51128 Bulb (For Front Turn Signal Lamp)[09.1998 - 12.2001] M10#,11# １２Ｖ ２１Ｗ,イエロー |
90049-51128 |
US $5.82 |
||
| replacement | |||||
|
81550B
|
81550B
90049-51148 Bulb (For Front Turn Signal Lamp)[09.1998 - 12.2001] M10#,11# １２Ｖ ２１Ｗ,イエロー |
90049-51148 |
US $6.08 |
||
|
81550B
|
81550B
99132-21210 Bulb, Cornering Lamp[09.1998 - 05.2000] M100,110 １２Ｖ ２１／５Ｗ |
99132-21210 |
from US $3.04 |
||
|
81551D
|
81551D
81551-97201 Lens & Body, Rear Combination Lamp, Rh[09.1998 - 05.2000] M100,110 |
81551-97201 |
US $200.93 |
||
|
81555
|
81555
81555-97201 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[09.1998 - 05.2000] M100,110 |
81555-97201 |
US $48.05 |
||
|
81560
|
81560
81560-97206 Lamp Assy, Rear Combination, Lh[09.1998 - 05.2000] M100,110 |
81560-97206 |
US $262.08 |
||
|
81561D
|
81561D
81561-97201 Lens & Body, Rear Combination Lamp, Lh[09.1998 - 05.2000] M100,110 |
81561-97201 |
US $200.93 |
||
|
81565
|
81565
81555-97201 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[09.1998 - 05.2000] M100,110 |
81555-97201 |
US $48.05 |
||
|
8155987216
|
8155987216
81559-87216 Moulding, Rear Combination Lamp, Rh |
81559-87216 |
US $2.48 |
||
|
9004119693
|
9004119693
90041-19693 New Genuine Part |
90041-19693 |
US $1.76 |
||
