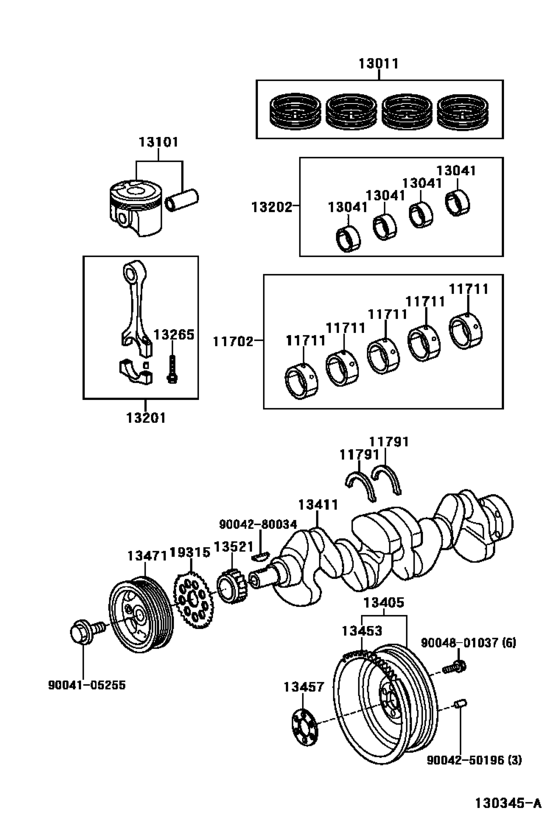

Crankshaft & Piston ([05.2000 - ] (0005- )K3VE) Diagram Toyota DUET
- Year
- 2000 - 2004
- Sales region
- Japan
- Frame
- M111A
- grade
- VS
- ENGINE
- K3VE
- TRANSMISSION
- MTM
- From
- 05.2000
- To
- 05.2004
- Gear Shift Type
- 5F
- Fuel Induction
- WVVT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11702
|
11702
11704-97401
Bearing Set, Crankshaft
[05.2000 -] K3VE..M101,111 Ｕ／Ｓ ０．２５ |
11704-97401 |
— | ||
| replacement | |||||
|
11702
|
11702
11704-B1021 Bearing Set, Crankshaft 0.25[05.2000 -] K3VE..M101,111 Ｕ／Ｓ ０．２５ |
11704-B1021 |
US $131.04 |
||
|
11711
|
11711
11701-97401-02
Bearing, Crankshaft
[05.2000 -] K3VE..M101,111 MARK 2,マーク ２ |
11701-97401-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-B1021-02 Bearing, Crankshaft[05.2000 -] K3VE..M101,111 MARK 2,マーク ２ |
11701-B1021-02 |
US $26.21 |
||
|
11711
|
11711
11701-97401-03
Bearing, Crankshaft
[05.2000 -] K3VE..M101,111 MARK 3,マーク ３ |
11701-97401-03 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-B1021-03 Bearing, Crankshaft[05.2000 -] K3VE..M101,111 MARK 3,マーク ３ |
11701-B1021-03 |
US $32.50 |
||
|
11711
|
11711
11701-97401-04
Bearing, Crankshaft
[05.2000 -] K3VE..M101,111 MARK 4,マーク ４ |
11701-97401-04 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-B1021-04 Bearing, Crankshaft[05.2000 -] K3VE..M101,111 MARK 4,マーク ４ |
11701-B1021-04 |
US $32.50 |
||
|
11711
|
11711
11701-97401-05
Bearing, Crankshaft
[05.2000 -] K3VE..M101,111 MARK 5,マーク ５ |
11701-97401-05 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-B1021-05 Bearing, Crankshaft[05.2000 -] K3VE..M101,111 MARK 5,マーク ５ |
11701-B1021-05 |
US $26.21 |
||
|
11791
|
11791
11791-97401
Washer Set, Crankshaft Thrust
[05.2000 -] K3VE..M101,111 ＳＴＤ |
11791-97401 |
— | ||
| replacement | |||||
|
11791
|
11791
11791-B1020 Washer, Crankshaft Thrust, Upper[05.2000 -] K3VE..M101,111 ＳＴＤ |
11791-B1020 |
from US $11.84 |
||
|
11791
|
11791
11792-97401
Washer Set, Crankshaft Thrust
[05.2000 -] K3VE..M101,111 Ｏ／Ｓ ０．１２５ |
11792-97401 |
— | ||
| replacement | |||||
|
11791
|
11791
11792-B1020 Washer, Crankshaft Thrust, Upper[05.2000 -] K3VE..M101,111 Ｏ／Ｓ ０．１２５ |
11792-B1020 |
US $9.61 |
||
|
11791
|
11791
11793-97401
Washer Set, Crankshaft Thrust
[05.2000 -] K3VE..M101,111 Ｏ／Ｓ ０．２５ |
11793-97401 |
— | ||
| replacement | |||||
|
11791
|
11791
11793-B1020 Washer, Crankshaft Thrust, Upper[05.2000 -] K3VE..M101,111 Ｏ／Ｓ ０．２５ |
11793-B1020 |
US $10.05 |
||
|
13011
|
13011
13011-97401
Ring Set, Piston (STD)
[05.2000 -] K3VE..M101,111 ＳＴＤ |
13011-97401 |
— | ||
| replacement | |||||
|
13011
|
13011
13011-97404 Ring Set, Piston (STD)[05.2000 -] K3VE..M101,111 ＳＴＤ |
13011-97404 |
from US $93.91 |
||
|
13011
|
13011
13013-97401
Ring Set, Piston 0.50
[05.2000 -] K3VE..M101,111 Ｏ／Ｓ ０．５０ |
13013-97401 |
— | ||
| replacement | |||||
|
13011
|
13011
13013-B1010 Ring Set, Piston 0.50[05.2000 -] K3VE..M101,111 Ｏ／Ｓ ０．５０ |
13013-B1010 |
US $180.54 |
||
|
13041
|
13041
13041-97401 Bearing, Connecting Rod[05.2000 -] K3VE..M101,111 |
13041-97401 |
US $33.20 |
||
|
13101
|
13101
13101-97403 Piston Sub-Assy, W/pin[05.2000 -] K3VE..M101,111..V,VS ＳＴＤ |
13101-97403 |
US $93.18 |
||
| replacement | |||||
|
13101
|
13101
13101-B4010 Piston Sub-Assy, W/pin[05.2000 -] K3VE..M101,111..V,VS ＳＴＤ |
13101-B4010 |
US $93.18 |
||
|
13101
|
13101
13103-97403 Piston Sub-Assy, W/pin[05.2000 -] K3VE..M101,111..V,VS Ｏ／Ｓ ０．５０ |
13103-97403 |
US $72.80 |
||
| replacement | |||||
|
13101
|
13101
13103-B4010 Piston Sub-Assy, W/pin[05.2000 -] K3VE..M101,111..V,VS Ｏ／Ｓ ０．５０ |
13103-B4010 |
US $93.18 |
||
|
13201
|
13201
13201-97401
Rod Sub-Assy, Connecting
[05.2000 -] K3VE..M101,111 |
13201-97401 |
— | ||
|
13202
|
13202
13204-97401
Bearing Set, Connecting Rod (0.25)
[05.2000 -] K3VE..M101,111 Ｕ／Ｓ ０．２５ |
13204-97401 |
— | ||
| replacement | |||||
|
13202
|
13202
13204-B1010 Bearing Set, Connecting Rod (0.25)[05.2000 -] K3VE..M101,111 Ｕ／Ｓ ０．２５ |
13204-B1010 |
US $106.29 |
||
|
13265
|
13265
13265-97401 Bolt, Connecting Rod[05.2000 -] K3VE..M101,111 |
13265-97401 |
US $4.96 |
||
|
13405
|
13405
13405-97401 Flywheel Sub-Assy[05.2000 -] K3VE..M101,111..5F |
13405-97401 |
US $275.18 |
||
|
13411
|
13411
13411-97401 Crankshaft[05.2000 -] K3VE..M101,111 |
13411-97401 |
US $711.98 |
||
|
13453
|
13453
13453-87104 Gear, Flywheel Ring[05.2000 -] K3VE..M101,111..5F |
13453-87104 |
US $110.66 |
||
|
13457
|
13457
13457-97401 Ring, Flywheel Spacer[05.2000 -] K3VE..M101,111..5F |
13457-97401 |
US $15.87 |
||
|
13471
|
13471
13470-97401 Pulley, Crankshaft[05.2000 -] K3VE..M101,111 |
13470-97401 |
US $279.55 |
||
|
13521
|
13521
13521-97401 Gear Or Sprocket, Crankshaft Timing[05.2000 -] K3VE..M101,111 |
13521-97401 |
US $27.20 |
||
|
19315
|
19315
19315-97401 Plate, Crank Angle Sensor, No.1[05.2000 -] K3VE..M101,111 |
19315-97401 |
US $15.66 |
||
|
9004105255
|
9004105255
90041-05255 Bolt(For Crankshaft Pulley Set) |
90041-05255 |
US $5.59 |
||
|
9004250196
|
9004250196
90042-50196 Pin, Straight(For Flywheel) |
90042-50196 |
US $2.04 |
||
|
9004280034
|
9004280034
90042-80034 Pin, Straight(For Crankshaft) |
90042-80034 |
US $3.68 |
||
|
9004801037
|
9004801037
90048-01037 Bolt(For Flywheel) |
90048-01037 |
US $3.52 |
||
