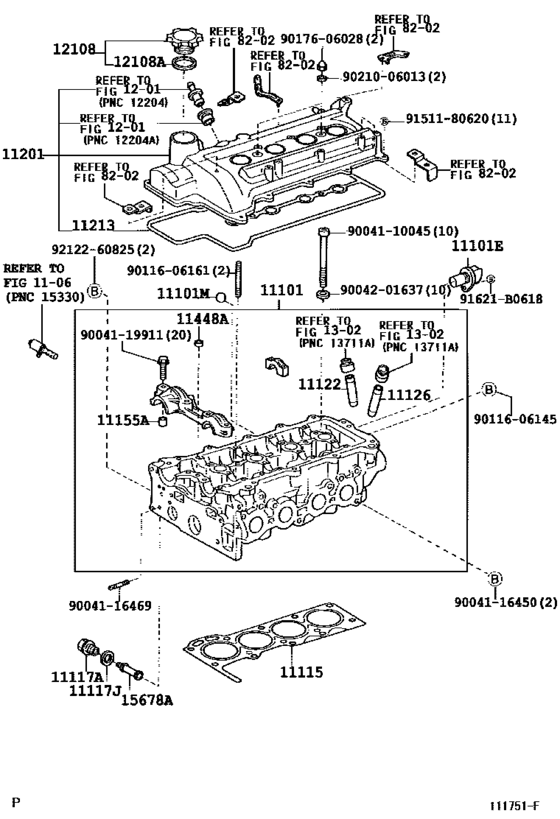

Cylinder Head ([05.2000 - ] (0005- )K3VE) Diagram Toyota DUET
- Year
- 2000 - 2004
- Sales region
- Japan
- Frame
- M111A
- grade
- VS
- ENGINE
- K3VE
- TRANSMISSION
- MTM
- From
- 05.2000
- To
- 05.2004
- Gear Shift Type
- 5F
- Fuel Induction
- WVVT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-97404 Head Sub-Assy, Cylinder[05.2000 - 11.2002] K3VE..M101,111 |
11101-97404 |
US $1,164.80 |
||
| replacement | |||||
|
11101
|
11101
11101-B9302 Head Sub-assy, Cylinder[05.2000 - 11.2002] K3VE..M101,111 |
11101-B9302 |
US $1,164.80 |
||
|
11101
|
11101
11101-97412 Head Sub-Assy, Cylinder[12.2002 - 04.2004] K3VE..M101,111 |
11101-97412 |
US $1,164.80 |
||
| replacement | |||||
|
11101
|
11101
11101-B9302 Head Sub-assy, Cylinder[12.2002 - 04.2004] K3VE..M101,111 |
11101-B9302 |
US $1,164.80 |
||
|
11101E
|
11101E
90919-05024 Sensor, Cam Position[05.2000 -] K3VE..M101,111 |
90919-05024 |
from US $62.78 |
||
|
11101M
|
11101M
90043-41078 Ball No.1(For Cylinder Head)[05.2000 -] K3VE..M101,111 |
90043-41078 |
US $2.18 |
||
|
11115
|
11115
11115-97401
Gasket, Cylinder Head
[05.2000 -] K3VE..M101,111 |
11115-97401 |
— | ||
| replacement | |||||
|
11115
|
11115
11115-97403 Gasket, Cylinder Head[05.2000 -] K3VE..M101,111 |
11115-97403 |
US $81.54 |
||
|
11117A
|
11117A
90341-14013 Plug, W/head Taper Screw, No.1[05.2000 -] K3VE..M101,111 |
90341-14013 |
from US $1.92 |
||
|
11117J
|
11117J
90430-14009 Gasket(For Cylinder Head Screw Plug)[05.2000 -] K3VE..M101,111 |
90430-14009 |
US $1.28 |
||
|
11122
|
11122
11122-21010 Bush, Intake Valve Guide[05.2000 -] K3VE..M101,111 ＳＴＤ |
11122-21010 |
US $8 |
||
|
11122
|
11122
11123-21010 Bush, Intake Valve Guide[05.2000 -] K3VE..M101,111 Ｏ／Ｓ ０．０５ |
11123-21010 |
US $6.33 |
||
|
11126
|
11126
11122-21010 Bush, Intake Valve Guide[05.2000 -] K3VE..M101,111 ＳＴＤ |
11122-21010 |
US $8 |
||
|
11126
|
11126
11123-21010 Bush, Intake Valve Guide[05.2000 -] K3VE..M101,111 Ｏ／Ｓ ０．０５ |
11123-21010 |
US $6.33 |
||
|
11155A
|
11155A
90042-53010 Pin, Ring(For Camshaft Bearing Cap Setting)[05.2000 -] K3VE..M101,111 |
90042-53010 |
US $3.04 |
||
|
11201
|
11201
11201-97404 Cover Sub-Assy, Cylinder Head[05.2000 - 04.2004] K3VE..M101,111 |
11201-97404 |
US $209.66 |
||
| replacement | |||||
|
11201
|
11201
11201-97408 Cover Sub-Assy, Cylinder Head[05.2000 - 04.2004] K3VE..M101,111 |
11201-97408 |
US $343.62 |
||
|
11213
|
11213
11213-97401 Gasket, Cylinder Head Cover[05.2000 -] K3VE..M101,111 |
11213-97401 |
from US $27.21 |
||
|
11448A
|
11448A
11448-87201 Orifice, Cylinder Block Oil[05.2000 -] K3VE..M101,111 |
11448-87201 |
US $2.85 |
||
|
12108
|
12108
12180-97401 Cap Sub-Assy, Oil Filler[05.2000 -] K3VE..M101,111 |
12180-97401 |
US $12.96 |
||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[05.2000 -] K3VE..M101,111 |
90430-37140 |
from US $1.25 |
||
|
15678A
|
15678A
15678-21010 Filter, Oil Control Valve[05.2000 -] K3VE..M101,111 |
15678-21010 |
from US $5.34 |
||
|
91621B0618
|
91621B0618
91621-B0618
New Genuine Part
|
91621-B0618 |
— | ||
| replacement | |||||
|
91621B0618
|
91621B0618
91651-B0620 New Genuine Part |
91651-B0620 |
US $1.12 |
||
|
9004110045
|
9004110045
90041-10045 Bolt(For Cylinder Head Set) |
90041-10045 |
from US $1.66 |
||
| replacement | |||||
|
9004110045
|
9004110045
90910-02143 Bolt(For Cylinder Head Set) |
90910-02143 |
US $4.96 |
||
|
9004116450
|
9004116450
90041-16450 Bolt, Stud(For Manifold To Cylinder Head) |
90041-16450 |
US $3.36 |
||
|
9004116469
|
9004116469
90041-16469 New Genuine Part |
90041-16469 |
US $2.45 |
||
|
9004119911
|
9004119911
90041-19911 Bolt(For Head To Camshaft Bearing Cap) |
90041-19911 |
US $2.48 |
||
|
9004201637
|
9004201637
90042-01637 Washer, Plate(For Cylinder Head Set) |
90042-01637 |
US $1.92 |
||
|
9011606145
|
9011606145
90116-06145 Bolt, Stud(For Oil Pan) |
90116-06145 |
US $1.92 |
||
|
9011606161
|
9011606161
90116-06161 Bolt, Stud(For Head To Cylinder Head Cover) |
90116-06161 |
US $2.04 |
||
|
9017606028
|
9017606028
90176-06028 Nut, Cap(For Cylinder Head Cover) |
90176-06028 |
from US $1.09 |
||
|
9021006013
|
9021006013
90210-06013 Washer, Seal(For Cylinder Head Cover) |
90210-06013 |
from US $0.84 |
||
|
9151180620
|
9151180620
91511-80620 Direct |
91511-80620 |
US $1.76 |
||
|
9212260825
|
9212260825
92122-60825 Bolt, Stud(For Manifold To Carburetor) |
92122-60825 |
US $1.31 |
||
