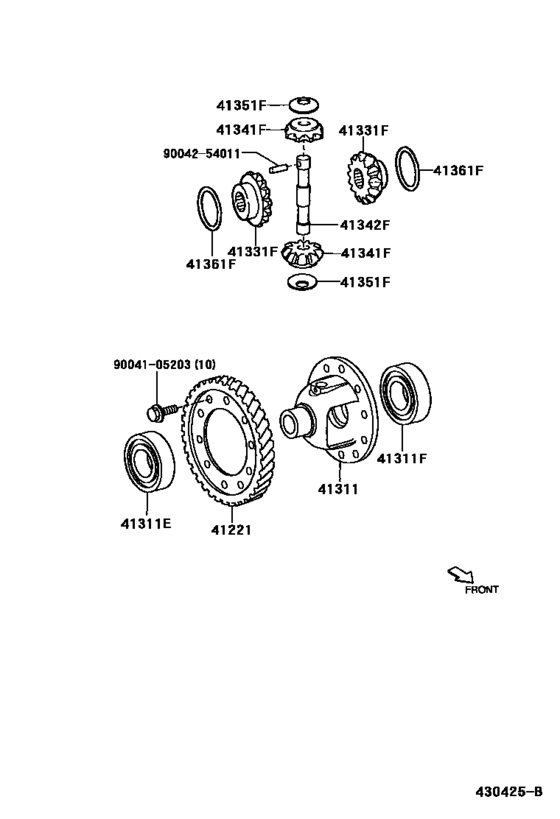

Front Axle Housing & Differential ([09.1998 - ] (9809- )5F) Diagram Toyota DUET
- Year
- 2000 - 2004
- Sales region
- Japan
- Frame
- M111A
- grade
- VS
- ENGINE
- K3VE
- TRANSMISSION
- MTM
- From
- 05.2000
- To
- 05.2004
- Gear Shift Type
- 5F
- Fuel Induction
- WVVT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
41221
|
41221
41221-97208 Gear, Front Differential Ring[05.2000 - 09.2002] M10#,111..5F |
41221-97208 |
US $195.10 |
||
| replacement | |||||
|
41221
|
41221
41221-97242 Gear, Front Differential Ring[05.2000 - 09.2002] M10#,111..5F |
41221-97242 |
US $206.75 |
||
|
41221
|
41221
41221-97242 Gear, Front Differential Ring[10.2002 -] M10#,111..5F |
41221-97242 |
US $206.75 |
||
|
41311
|
41311
41311-97402
Case, Front Differential
[05.2000 -] M111..5F |
41311-97402 |
— | ||
|
41311E
|
41311E
90043-63300 Bearing, Tapered Roller (For Front Differential Case Front)[11.2003 -] M10#,11#..5F |
90043-63300 |
US $23.06 |
||
|
41311E
|
41311E
97100-06008 Bearing, Tapered Roller (For Front Differential Case Front)[09.1998 - 10.2003] M10#,11#..5F |
97100-06008 |
US $13.98 |
||
|
41311F
|
41311F
90043-63286 Bearing[04.2000 -] M10#,11#..5F |
90043-63286 |
US $22.89 |
||
|
41331F
|
41331F
41331-97202 Gear, Rear Differential Side[05.2000 -] M101,111..5F |
41331-97202 |
US $54.86 |
||
|
41341F
|
41341F
41341-97401 Pinion, Front Differential[05.2000 -] M101,111..5F |
41341-97401 |
US $33.05 |
||
|
41342F
|
41342F
41342-97401 Shaft, Front Differential Pinion, No.1[05.2000 -] M101,111..5F |
41342-97401 |
US $22.42 |
||
|
41351F
|
41351F
41351-97201 Washer, Front Differential Pinion Thrust[05.2000 -] M101,111..5F |
41351-97201 |
US $5.82 |
||
|
41361F
|
41361F
41361-87201 Washer, Front Differential Side Gear Thrust, No.1[09.1998 -] M10#,11#..5F 厚さ＝０．８ |
41361-87201 |
US $5.97 |
||
|
9004105203
|
9004105203
90041-05203 New Genuine Part |
90041-05203 |
US $3.35 |
||
|
9004254011
|
9004254011
90042-54011 New Genuine Part |
90042-54011 |
US $1.60 |
||
