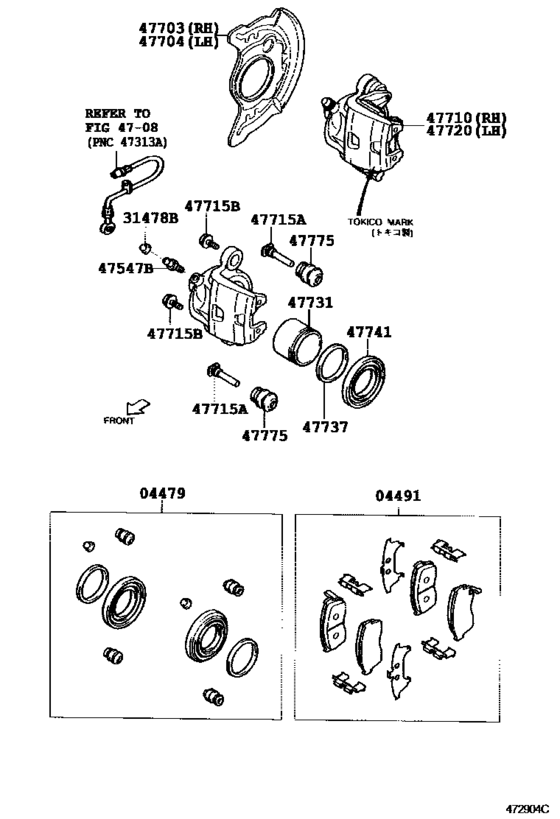

Front Disc Brake Caliper & Dust Cover ([12.2001 - ] (0112- )VS) Diagram Toyota DUET
- Year
- 2000 - 2004
- Sales region
- Japan
- Frame
- M111A
- grade
- VS
- ENGINE
- K3VE
- TRANSMISSION
- MTM
- From
- 05.2000
- To
- 05.2004
- Gear Shift Type
- 5F
- Fuel Induction
- WVVT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04479
|
04479
04479-97201
Cylinder Kit, Disc Brake, Front
[09.1998 - 12.2001] M10#,11# |
04479-97201 |
— | ||
|
04479
|
04479
04479-97401 Cylinder Kit, Disc Brake, Front[12.2001 -] M101,111..VS |
04479-97401 |
US $32.76 |
||
| replacement | |||||
|
04479
|
04479
04478-B2151 Cylinder Kit, Disc Brake, Front[12.2001 -] M101,111..VS |
04478-B2151 |
US $43.32 |
||
|
04491
|
04491
04491-97401 Pad Kit, Disc Brake, Front[05.2000 - 12.2001] M10#,11# |
04491-97401 |
US $120.85 |
||
| replacement | |||||
|
04491
|
04491
04491-B4010 Pad Kit, Disc Brake, Front[05.2000 - 12.2001] M10#,11# |
04491-B4010 |
US $120.85 |
||
|
04491
|
04491
04491-97402 Pad Kit, Disc Brake, Front[12.2001 -] M101,111..VS |
04491-97402 |
US $131.04 |
||
| replacement | |||||
|
04491
|
04491
04491-B1060 Pad Kit, Disc Brake, Front[12.2001 -] M101,111..VS |
04491-B1060 |
US $131.04 |
||
|
31478B
|
31478B
47548-87303 Cap, Bleeder Plug(For Front Disc Brake)[09.1998 - 12.2001] M10#,11# |
47548-87303 |
US $2.18 |
||
| replacement | |||||
|
31478B
|
31478B
47548-B3010 Cap, Bleeder Plug(For Front Disc Brake)[09.1998 - 12.2001] M10#,11# |
47548-B3010 |
US $2.72 |
||
|
31478B
|
31478B
47548-97401 Cap, Bleeder Plug(For Front Disc Brake)[12.2001 -] M101,111..VS |
47548-97401 |
US $2.72 |
||
|
47547B
|
47547B
47547-87207 Plug, Bleeder(For Front Disc Brake)[09.1998 - 12.2001] M10#,11# |
47547-87207 |
US $5.44 |
||
|
47547B
|
47547B
47547-97401 Plug, Bleeder(For Front Disc Brake)[12.2001 -] M101,111..VS |
47547-97401 |
US $3.79 |
||
| replacement | |||||
|
47547B
|
47547B
47547-B1020 Plug, Bleeder(For Front Disc Brake)[12.2001 -] M101,111..VS |
47547-B1020 |
US $5.44 |
||
|
47703
|
47703
47781-97201 Cover Sub-Assy, Disc Brake Dust, Front Rh[09.1998 - 12.2001] M10#,11# |
47781-97201 |
US $13.83 |
||
| replacement | |||||
|
47703
|
47703
47781-97402 Cover, Disc Brake Dust, Front Rh[09.1998 - 12.2001] M10#,11# |
47781-97402 |
US $17.82 |
||
|
47703
|
47703
47781-97401 Cover Sub-Assy, Disc Brake Dust, Front Rh[12.2001 -] M101,111..VS |
47781-97401 |
US $21.69 |
||
| replacement | |||||
|
47703
|
47703
47781-97403 Cover, Disc Brake Dust, Front Rh[12.2001 -] M101,111..VS |
47781-97403 |
US $15.55 |
||
|
47704
|
47704
47782-97201 Cover Sub-Assy, Disc Brake Dust, Front Lh[09.1998 - 12.2001] M10#,11# |
47782-97201 |
US $13.83 |
||
| replacement | |||||
|
47704
|
47704
47782-97402 Cover, Disc Brake Dust, Front Lh[09.1998 - 12.2001] M10#,11# |
47782-97402 |
US $17.82 |
||
|
47704
|
47704
47782-97401 Cover Sub-Assy, Disc Brake Dust, Front Lh[12.2001 -] M101,111..VS |
47782-97401 |
US $21.69 |
||
| replacement | |||||
|
47704
|
47704
47782-97403 Cover, Disc Brake Dust, Front Lh[12.2001 -] M101,111..VS |
47782-97403 |
US $25.08 |
||
|
47710
|
47710
47710-97401 Caliper Assy, Disc Brake, Front, Rh[05.2000 - 12.2001] M10#,11# |
47710-97401 |
US $576.58 |
||
|
47710
|
47710
47710-97402 Caliper Assy, Disc Brake, Front, Rh[12.2001 -] M101,111..VS |
47710-97402 |
US $410.59 |
||
| replacements | |||||
|
47710
|
47710
04491-B1060 Pad Kit, Disc Brake, Front[12.2001 -] M101,111..VS |
04491-B1060 |
US $131.04 |
||
|
47710
|
47710
04491-B1090 Pad Kit, Disc Brake, Front[12.2001 -] M101,111..VS |
04491-B1090 |
US $109.20 |
||
|
47710
|
47710
47730-B1061 Cylinder Assy, Front Disc Brake, Rh[12.2001 -] M101,111..VS |
47730-B1061 |
US $323.23 |
||
|
47715A
|
47715A
47715-97201 Pin, Front Disc Brake Cylinder Slide[09.1998 - 12.2001] M10#,11# |
47715-97201 |
US $9.60 |
||
|
47715A
|
47715A
47715-97401 Pin, Front Disc Brake Cylinder Slide[12.2001 -] M101,111..VS |
47715-97401 |
US $9.60 |
||
|
47715B
|
47715B
47715-97403 Bolt(For Front Disc Brake Cylinder Slide)[12.2001 -] M101,111..VS |
47715-97403 |
US $2.48 |
||
| replacement | |||||
|
47715B
|
47715B
47715-B1020 Bolt(For Front Disc Brake Cylinder Slide)[12.2001 -] M101,111..VS |
47715-B1020 |
US $3.20 |
||
|
47720
|
47720
47720-97401 Caliper Assy, Disc Brake, Front, Lh[05.2000 - 12.2001] M10#,11# |
47720-97401 |
US $576.58 |
||
|
47720
|
47720
47720-97402 Caliper Assy, Disc Brake, Front, Lh[12.2001 -] M101,111..VS |
47720-97402 |
US $410.59 |
||
| replacements | |||||
|
47720
|
47720
04491-B1060 Pad Kit, Disc Brake, Front[12.2001 -] M101,111..VS |
04491-B1060 |
US $131.04 |
||
|
47720
|
47720
04491-B1090 Pad Kit, Disc Brake, Front[12.2001 -] M101,111..VS |
04491-B1090 |
US $109.20 |
||
|
47720
|
47720
47750-B1051 Cylinder Assy, Disc Brake, Lh[12.2001 -] M101,111..VS |
47750-B1051 |
US $323.23 |
||
|
47731
|
47731
47731-97201 Piston, Front Disc Brake[09.1998 - 12.2001] M10#,11# |
47731-97201 |
US $38.46 |
||
|
47731
|
47731
47731-97401 Piston, Front Disc Brake[12.2001 -] M101,111..VS |
47731-97401 |
US $36.02 |
||
|
47737
|
47737
47737-97201 Seal, Front Disc Brake Cylinder Piston[09.1998 - 12.2001] M10#,11# |
47737-97201 |
US $7.03 |
||
|
47737
|
47737
47737-97401 Seal, Front Disc Brake Cylinder Piston[12.2001 -] M101,111..VS |
47737-97401 |
US $9.28 |
||
|
47741
|
47741
47741-87202 Boot, Front Disc Brake Cylinder[09.1998 - 12.2001] M10#,11# |
47741-87202 |
US $7.86 |
||
|
47741
|
47741
47741-97401 Boot, Front Disc Brake Cylinder[12.2001 -] M101,111..VS |
47741-97401 |
US $8.48 |
||
|
47775
|
47775
47775-97201 Boot, Bush Dust(For Front Disc Brake)[09.1998 - 12.2001] M10#,11# |
47775-97201 |
US $8.80 |
||
|
47775
|
47775
47775-97401
Boot, Bush Dust(For Front Disc Brake)
[12.2001 -] M101,111..VS |
47775-97401 |
— | ||
| replacement | |||||
|
47775
|
47775
47775-B2040 Boot, Bush Dust(For Front Disc Brake)[12.2001 -] M101,111..VS |
47775-B2040 |
US $8.80 |
||
