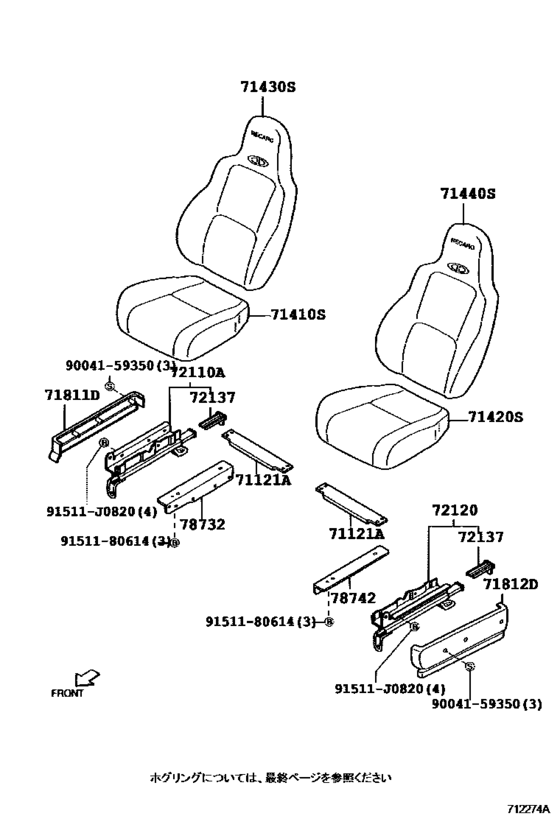

Front Seat & Seat Track ([12.2001 - ] ﾚｶﾛ ｼ-ﾄ (0112- )VS) Diagram Toyota DUET
- Year
- 2000 - 2004
- Sales region
- Japan
- Frame
- M111A
- grade
- VS
- ENGINE
- K3VE
- TRANSMISSION
- MTM
- From
- 05.2000
- To
- 05.2004
- Gear Shift Type
- 5F
- Fuel Induction
- WVVT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71121A
|
71121A
71121-87705 Bracket, Front Seat Cushion, Outer[12.2001 -] M101,111..VS ﾚｶﾛｼ-ﾄ |
71121-87705 |
US $25.92 |
||
|
71410S
|
71410S
71510-97210-03 Cushion Assy, Front Seat, Rh(For Separate Type)[05.2000 - 12.2001] M111..VS;M100,110..V DARK GRAY,TRIMS6 |
71510-97210-03 |
US $719.26 |
||
|
71410S
|
71410S
71510-97210-07 Cushion Assy, Front Seat, Rh(For Separate Type)[05.2000 - 12.2001] M111..VS;M100,110..V GREEN,TRIMS8 |
71510-97210-07 |
US $719.26 |
||
|
71410S
|
71410S
71510-97233-03 Cushion Assy, Front Seat, Rh(For Separate Type)[05.2000 - 12.2001] M101,111 S ﾊﾟﾂｹ-ｼﾞ *(R),DARK GRAY,TRIMS6,S8 |
71510-97233-03 |
US $796.43 |
||
|
71410S
|
71410S
71510-97285-03 Cushion Assy, Front Seat, Rh(For Separate Type)[12.2000 - 12.2001] M101,111 DARK GRAY,TRIMS6,S8 |
71510-97285-03 |
US $796.43 |
||
|
71410S
|
71410S
71510-97286-03 Cushion Assy, Front Seat, Rh(For Separate Type)[12.2000 - 12.2001] M101,111 ｱﾘ(*80,ｻｲﾄﾞ),DARK GRAY,TRIMS6 |
71510-97286-03 |
US $735.28 |
||
|
71410S
|
71410S
71510-97286-07 Cushion Assy, Front Seat, Rh(For Separate Type)[12.2000 - 12.2001] M101,111 ｱﾘ(*80,ｻｲﾄﾞ),GREEN,TRIMS8 |
71510-97286-07 |
US $735.28 |
||
|
71410S
|
71410S
71510-97287-05 Cushion Assy, Front Seat, Rh(For Separate Type)[12.2000 - 12.2001] M10#,11#..V,VS V ｸﾗｼﾂｸ *(C),BEIGE,TRIMS6 |
71510-97287-05 |
US $1,022.11 |
||
|
71410S
|
71410S
71510-97440-01 Cushion Assy, Front Seat, Rh(For Separate Type)[12.2001 -] M101,111..VS BLACK,TRIMS6 |
71510-97440-01 |
US $796.43 |
||
|
71410S
|
71410S
71510-97441-01 Cushion Assy, Front Seat, Rh(For Separate Type)[12.2001 -] M101,111..VS ﾚｶﾛｼ-ﾄ,BLACK,TRIMS6 |
71510-97441-01 |
US $1,003.18 |
||
|
71420S
|
71420S
71420-97278-01 Cushion Assy, Front Seat, Lh (For Separate Type)[12.2001 -] M101,111..VS BLACK,TRIMS6 |
71420-97278-01 |
US $758.58 |
||
|
71420S
|
71420S
71420-97279-01 Cushion Assy, Front Seat, Lh (For Separate Type)[12.2001 -] M101,111..VS ﾚｶﾛｼ-ﾄ,BLACK,TRIMS6 |
71420-97279-01 |
US $1,003.18 |
||
|
71420S
|
71420S
71520-97207-03 Cushion Assy, Front Seat, Lh (For Separate Type)[05.2000 - 12.2001] M10#,11#..V,VS DARK GRAY,TRIMS6 |
71520-97207-03 |
US $773.14 |
||
|
71420S
|
71420S
71520-97207-07 Cushion Assy, Front Seat, Lh (For Separate Type)[05.2000 - 12.2001] M10#,11#..V,VS GREEN,TRIMS8 |
71520-97207-07 |
US $850.30 |
||
|
71420S
|
71420S
71520-97231-03 Cushion Assy, Front Seat, Lh (For Separate Type)[05.2000 - 12.2001] M101,111 S ﾊﾟﾂｹ-ｼﾞ *(R),DARK GRAY,TRIMS6,S8 |
71520-97231-03 |
US $758.58 |
||
|
71420S
|
71420S
71520-97422-05 Cushion Assy, Front Seat, Lh (For Separate Type)[12.2000 - 12.2001] M10#,11#..V,VS V ｸﾗｼﾂｸ *(C),BEIGE,TRIMS6 |
71520-97422-05 |
US $1,010.46 |
||
|
71430S
|
71430S
71430-97474-05 Back Assy, Front Seat, Rh(For Separate Type)[12.2000 - 12.2001] M10#,11#..V,VS V ｸﾗｼﾂｸ *(C) & ｱﾘ(*80,ｻｲﾄﾞ),BEIGE,TRIMS6 |
71430-97474-05 |
US $1,965.60 |
||
|
71430S
|
71430S
71430-97H01-03 Back Assy, Front Seat, Rh(For Separate Type)[05.2000 - 12.2001] M10#,11#..V,VS DARK GRAY,TRIMS6 |
71430-97H01-03 |
US $1,023.57 |
||
|
71430S
|
71430S
71430-97H01-07 Back Assy, Front Seat, Rh(For Separate Type)[05.2000 - 12.2001] M10#,11#..V,VS GREEN,TRIMS8 |
71430-97H01-07 |
US $1,023.57 |
||
|
71430S
|
71430S
71430-97H27-03 Back Assy, Front Seat, Rh(For Separate Type)[05.2000 - 12.2001] M101..V;M111..VS S ﾊﾟﾂｹ-ｼﾞ *(R),DARK GRAY,TRIMS6,S8 |
71430-97H27-03 |
US $995.90 |
||
|
71430S
|
71430S
71430-97H37-03 Back Assy, Front Seat, Rh(For Separate Type)[05.2000 - 12.2001] M10#,11#..V,VS ｱﾘ(*80,ｻｲﾄﾞ),DARK GRAY,TRIMS6 |
71430-97H37-03 |
US $1,630.72 |
||
|
71430S
|
71430S
71430-97H37-07 Back Assy, Front Seat, Rh(For Separate Type)[05.2000 - 12.2001] M10#,11#..V,VS ｱﾘ(*80,ｻｲﾄﾞ),GREEN,TRIMS8 |
71430-97H37-07 |
US $1,630.72 |
||
|
71430S
|
71430S
71430-97H45-03 Back Assy, Front Seat, Rh(For Separate Type)[05.2000 - 12.2001] M101,111..VS S ﾊﾟﾂｹ-ｼﾞ *(R) & ｱﾘ(*80,ｻｲﾄﾞ),DARK GRAY,TRIMS6,S8 |
71430-97H45-03 |
US $1,587.04 |
||
|
71430S
|
71430S
71430-97H46-03 Back Assy, Front Seat, Rh(For Separate Type)[12.2000 - 12.2001] M101,111..VS S ﾊﾟﾂｹ-ｼﾞ *(R) & ｱﾘ(*80,ｻｲﾄﾞ & ｷ- ﾌﾘ- ｼｽﾃﾑ),DARK GRAY,TRIMS6,S8 |
71430-97H46-03 |
US $1,587.04 |
||
|
71430S
|
71430S
71430-97H55-03 Back Assy, Front Seat, Rh(For Separate Type)[12.2000 - 12.2001] M101,111 ｱﾘ(*80,ｻｲﾄﾞ & ｷ- ﾌﾘ- ｼｽﾃﾑ),DARK GRAY,TRIMS6 |
71430-97H55-03 |
US $1,630.72 |
||
|
71430S
|
71430S
71430-97H55-07 Back Assy, Front Seat, Rh(For Separate Type)[12.2000 - 12.2001] M101,111 ｱﾘ(*80,ｻｲﾄﾞ & ｷ- ﾌﾘ- ｼｽﾃﾑ),GREEN,TRIMS8 |
71430-97H55-07 |
US $1,630.72 |
||
|
71430S
|
71430S
71430-97H68-03 Back Assy, Front Seat, Rh(For Separate Type)[12.2000 - 12.2001] M101,111..VS S ﾊﾟﾂｹ-ｼﾞ *(R) & ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ),DARK GRAY,TRIMS6,S8 |
71430-97H68-03 |
US $1,057.06 |
||
|
71430S
|
71430S
71430-97H74-03 Back Assy, Front Seat, Rh(For Separate Type)[12.2000 - 12.2001] M101,111 ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ),DARK GRAY,TRIMS6 |
71430-97H74-03 |
US $982.80 |
||
|
71430S
|
71430S
71430-97H74-07 Back Assy, Front Seat, Rh(For Separate Type)[12.2000 - 12.2001] M101,111 ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ),GREEN,TRIMS8 |
71430-97H74-07 |
US $982.80 |
||
|
71430S
|
71430S
71430-97H76-05 Back Assy, Front Seat, Rh(For Separate Type)[12.2000 - 12.2001] M10#,11#..V,VS V ｸﾗｼﾂｸ *(C),BEIGE,TRIMS6 |
71430-97H76-05 |
US $1,374.46 |
||
|
71430S
|
71430S
71430-97H84-01 Back Assy, Front Seat, Rh(For Separate Type)[12.2001 -] M101,111..5F..VS BLACK,TRIMS6 |
71430-97H84-01 |
US $1,046.86 |
||
|
71430S
|
71430S
71430-97H90-01 Back Assy, Front Seat, Rh(For Separate Type)[12.2001 -] M101,111..VS ﾚｶﾛｼ-ﾄ,BLACK,TRIMS6 |
71430-97H90-01 |
US $1,776.32 |
||
|
71430S
|
71430S
71430-97L76-01 Back Assy, Front Seat, Rh(For Separate Type)[12.2001 -] M101,111..5F..VS ｱﾘ(*80,ｻｲﾄﾞ),BLACK,TRIMS6 |
71430-97L76-01 |
US $1,046.86 |
||
|
71440S
|
71440S
71440-97252-01 Back Assy, Front Seat, Lh(For Separate Type)[12.2001 -] M101,111..VS BLACK,TRIMS6 |
71440-97252-01 |
US $987.17 |
||
|
71440S
|
71440S
71440-97254-01 Back Assy, Front Seat, Lh(For Separate Type)[12.2001 -] M101,111..VS ﾚｶﾛｼ-ﾄ,BLACK,TRIMS6 |
71440-97254-01 |
US $1,776.32 |
||
|
71440S
|
71440S
71440-97269-01 Back Assy, Front Seat, Lh(For Separate Type)[12.2001 -] M101,111..VS ｱﾘ(*80,ｻｲﾄﾞ),BLACK,TRIMS6; M101..4ATS..VS ｱﾘ(VSC & *80,ｻｲﾄﾞ),BLACK,TRIMS6 |
71440-97269-01 |
US $987.17 |
||
|
71440S
|
71440S
71540-97417-05 Back Assy, Front Seat, Lh(For Separate Type)[12.2000 - 12.2001] M10#,11#..V,VS V ｸﾗｼﾂｸ *(C),BEIGE,TRIMS6 |
71540-97417-05 |
US $1,061.42 |
||
|
71440S
|
71440S
71540-97419-05 Back Assy, Front Seat, Lh(For Separate Type)[12.2000 - 12.2001] M10#,11#..V,VS V ｸﾗｼﾂｸ *(C) & ｱﾘ(*80,ｻｲﾄﾞ),BEIGE,TRIMS6 |
71540-97419-05 |
US $1,514.24 |
||
|
71440S
|
71440S
71540-97H11-03 Back Assy, Front Seat, Lh(For Separate Type)[05.2000 - 12.2001] M101..V;M111..VS S ﾊﾟﾂｹ-ｼﾞ *(R),DARK GRAY,TRIMS6,S8 |
71540-97H11-03 |
US $781.87 |
||
|
71440S
|
71440S
71540-97H32-03 Back Assy, Front Seat, Lh(For Separate Type)[05.2000 - 12.2001] M10#,11#..V,VS DARK GRAY,TRIMS6 |
71540-97H32-03 |
US $803.71 |
||
|
71440S
|
71440S
71540-97H32-07 Back Assy, Front Seat, Lh(For Separate Type)[05.2000 - 12.2001] M10#,11#..V,VS GREEN,TRIMS8 |
71540-97H32-07 |
US $803.71 |
||
|
71440S
|
71440S
71540-97H33-03 Back Assy, Front Seat, Lh(For Separate Type)[05.2000 - 12.2001] M10#,11#..V,VS ｱﾘ(*80,ｻｲﾄﾞ),DARK GRAY,TRIMS6 |
71540-97H33-03 |
US $1,259.44 |
||
|
71440S
|
71440S
71540-97H33-07 Back Assy, Front Seat, Lh(For Separate Type)[05.2000 - 12.2001] M10#,11#..V,VS ｱﾘ(*80,ｻｲﾄﾞ),GREEN,TRIMS8 |
71540-97H33-07 |
US $1,259.44 |
||
|
71440S
|
71440S
71540-97H38-03 Back Assy, Front Seat, Lh(For Separate Type)[05.2000 - 12.2001] M101,111 S ﾊﾟﾂｹ-ｼﾞ *(R) & ｱﾘ(*80,ｻｲﾄﾞ),DARK GRAY,TRIMS6,S8 |
71540-97H38-03 |
US $1,234.69 |
||
|
71811D
|
71811D
71811-97207-01 Shield, Front Seat Cushion, Rh[12.2001 -] M101,111..VS ﾚｶﾛｼ-ﾄ,BLACK,TRIMS6 |
71811-97207-01 |
US $115.02 |
||
|
71811D
|
71811D
71811-97401-13 Shield, Front Seat Cushion, Rh[05.2000 -] M10#,11# DARK GRAY,TRIMS6 |
71811-97401-13 |
US $35.24 |
||
| replacement | |||||
|
71811D
|
71811D
71811-97401-B0 Fastener, Seat Cover[05.2000 -] M10#,11# DARK GRAY,TRIMS6 |
71811-97401-B0 |
US $48.05 |
||
|
71811D
|
71811D
71811-97401-23 Shield, Front Seat Cushion, Rh[05.2000 -] M10#,11# LT.GREENISH GRAY,TRIMS8 |
71811-97401-23 |
US $35.24 |
||
|
71811D
|
71811D
71811-97402-03 Shield, Front Seat Cushion, Rh[05.2000 -] M10#,11# ｱﾘ(*80,ｻｲﾄﾞ),DARK GRAY,TRIMS6 |
71811-97402-03 |
US $43.53 |
||
| replacements | |||||
|
71811D
|
71811D
71811-97401-B0 Fastener, Seat Cover[05.2000 -] M10#,11# ｱﾘ(*80,ｻｲﾄﾞ),DARK GRAY,TRIMS6 |
71811-97401-B0 |
US $48.05 |
||
|
71811D
|
71811D
71825-97201 Label, Side Air Bag Name[05.2000 -] M10#,11# ｱﾘ(*80,ｻｲﾄﾞ),DARK GRAY,TRIMS6 |
71825-97201 |
US $3.64 |
||
|
71811D
|
71811D
71811-97402-23 Shield, Front Seat Cushion, Rh[05.2000 -] M10#,11# ｱﾘ(*80,ｻｲﾄﾞ),LT.GREENISH GRAY,TRIMS8 |
71811-97402-23 |
US $48.05 |
||
| replacements | |||||
|
71811D
|
71811D
71811-97401-23 Shield, Front Seat Cushion, Rh[05.2000 -] M10#,11# ｱﾘ(*80,ｻｲﾄﾞ),LT.GREENISH GRAY,TRIMS8 |
71811-97401-23 |
US $35.24 |
||
|
71811D
|
71811D
71825-97201 Label, Side Air Bag Name[05.2000 -] M10#,11# ｱﾘ(*80,ｻｲﾄﾞ),LT.GREENISH GRAY,TRIMS8 |
71825-97201 |
US $3.64 |
||
|
71812D
|
71812D
71812-97207-01 Shield, Front Seat Cushion, Lh[12.2001 -] M101,111..VS ﾚｶﾛｼ-ﾄ,BLACK,TRIMS6 |
71812-97207-01 |
US $115.02 |
||
|
71812D
|
71812D
71812-97401-13 Shield, Front Seat Cushion, Lh[05.2000 -] M10#,11# DARK GRAY,TRIMS6 |
71812-97401-13 |
US $35.24 |
||
| replacement | |||||
|
71812D
|
71812D
71812-97401-B0 Clip (for Front Seat Cushion Cover)[05.2000 -] M10#,11# DARK GRAY,TRIMS6 |
71812-97401-B0 |
US $48.05 |
||
|
71812D
|
71812D
71812-97401-23 Shield, Front Seat Cushion, Lh[05.2000 -] M10#,11# LT.GREENISH GRAY,TRIMS8 |
71812-97401-23 |
US $35.24 |
||
|
71812D
|
71812D
71812-97402-03 Shield, Front Seat Cushion, Lh[05.2000 -] M10#,11# ｱﾘ(*80,ｻｲﾄﾞ),DARK GRAY,TRIMS6 |
71812-97402-03 |
US $43.53 |
||
| replacements | |||||
|
71812D
|
71812D
71812-97401-B0 Clip (for Front Seat Cushion Cover)[05.2000 -] M10#,11# ｱﾘ(*80,ｻｲﾄﾞ),DARK GRAY,TRIMS6 |
71812-97401-B0 |
US $48.05 |
||
|
71812D
|
71812D
71825-97201 Label, Side Air Bag Name[05.2000 -] M10#,11# ｱﾘ(*80,ｻｲﾄﾞ),DARK GRAY,TRIMS6 |
71825-97201 |
US $3.64 |
||
|
71812D
|
71812D
71812-97402-13 Shield, Front Seat Cushion, Lh[05.2000 -] M10#,11# ｱﾘ(*80,ｻｲﾄﾞ),LT.GREENISH GRAY,TRIMS8 |
71812-97402-13 |
US $48.05 |
||
| replacements | |||||
|
71812D
|
71812D
71812-97401-23 Shield, Front Seat Cushion, Lh[05.2000 -] M10#,11# ｱﾘ(*80,ｻｲﾄﾞ),LT.GREENISH GRAY,TRIMS8 |
71812-97401-23 |
US $35.24 |
||
|
71812D
|
71812D
71825-97201 Label, Side Air Bag Name[05.2000 -] M10#,11# ｱﾘ(*80,ｻｲﾄﾞ),LT.GREENISH GRAY,TRIMS8 |
71825-97201 |
US $3.64 |
||
|
72110A
|
72110A
72110-97209 Track Assy, Front Seat, Outer Rh[12.2001 -] M101,111..VS ﾚｶﾛｼ-ﾄ |
72110-97209 |
US $234.42 |
||
|
72110A
|
72110A
72110-97219 Track Assy, Front Seat, Outer Rh[05.2000 -] M101,111;M100,110..X; M100,110..V V ﾘﾐﾃﾂﾄﾞ & ｱﾘ(*80,ｻｲﾄﾞ);V ﾘﾐﾃﾂﾄﾞ |
72110-97219 |
US $231.50 |
||
|
72120
|
72120
72120-97206 Track Assy, Front Seat, Outer Lh[05.2000 -] M10#,11# |
72120-97206 |
US $186.37 |
||
|
72120
|
72120
72120-97208 Track Assy, Front Seat, Outer Lh[12.2001 -] M101,111..VS ﾚｶﾛｼ-ﾄ |
72120-97208 |
US $234.42 |
||
|
72137
|
72137
72137-97202 Protector, Seat Track Lower Rail, No.1[12.2001 -] M101,111..VS ﾚｶﾛｼ-ﾄ |
72137-97202 |
US $8.01 |
||
|
72137
|
72137
72137-97205 Protector, Seat Track Lower Rail, No.1[10.2002 -] M10#,11# |
72137-97205 |
US $5.24 |
||
|
72137
|
72137
72137-97401 Protector, Seat Track Lower Rail, No.1[05.2000 - 10.2002] M10#,11# |
72137-97401 |
US $6.84 |
||
|
78732
|
78732
78732-97201 Plate, Front Seat Cushion, No.1 Rh[12.2001 -] M101,111..VS ﾚｶﾛｼ-ﾄ |
78732-97201 |
US $99.01 |
||
|
78742
|
78742
78742-97201 Plate, Front Seat Cushion, No.1 Lh[12.2001 -] M101,111..VS ﾚｶﾛｼ-ﾄ |
78742-97201 |
US $99.01 |
||
|
91511J0820
|
91511J0820
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91511-J0820 |
from US $1.07 |
||
|
9004159350
|
9004159350
90041-59350 New Genuine Part |
90041-59350 |
US $1.75 |
||
|
9151180614
|
9151180614
91511-80614 BOLT FLANGE |
91511-80614 |
US $1.12 |
||
