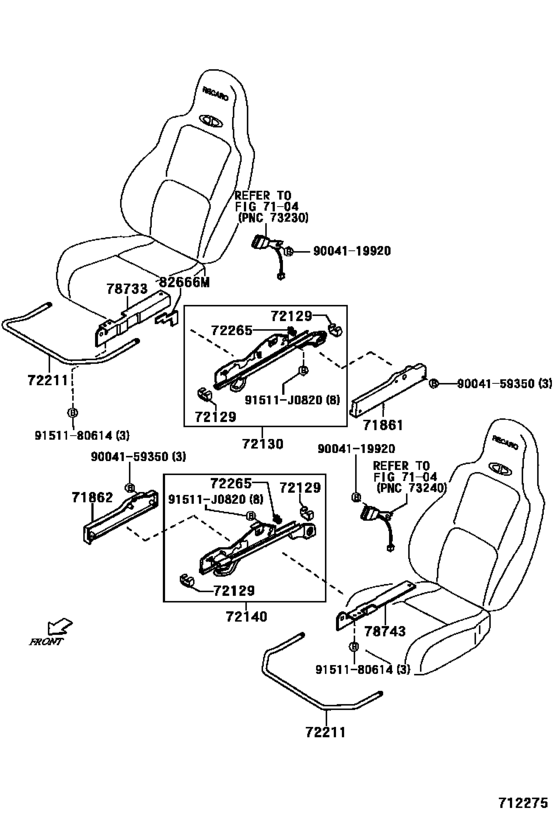

Front Seat & Seat Track ([12.2001 - ] ﾚｶﾛ ｼ-ﾄ (0112- )VS) Diagram Toyota DUET
- Year
- 2000 - 2004
- Sales region
- Japan
- Frame
- M111A
- grade
- VS
- ENGINE
- K3VE
- TRANSMISSION
- MTM
- From
- 05.2000
- To
- 05.2004
- Gear Shift Type
- 5F
- Fuel Induction
- WVVT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71861
|
71861
71861-97401-13 Shield, Front Seat Cushion, Inner Rh[05.2000 -] M10#,11# DARK GRAY,TRIMS6 |
71861-97401-13 |
US $31.60 |
||
| replacement | |||||
|
71861
|
71861
71861-97401-B0 Shield, Front Seat Cushion, Inner Rh[05.2000 -] M10#,11# DARK GRAY,TRIMS6 |
71861-97401-B0 |
US $43.53 |
||
|
71861
|
71861
71861-97401-23 Shield, Front Seat Cushion, Inner Rh[05.2000 -] M10#,11# LT.GREENISH GRAY,TRIMS8 |
71861-97401-23 |
US $31.60 |
||
|
71862
|
71862
71862-97401-13 Shield, Front Seat Cushion, Inner Lh[05.2000 -] M10#,11# DARK GRAY,TRIMS6 |
71862-97401-13 |
US $31.60 |
||
| replacement | |||||
|
71862
|
71862
71862-97401-B0 Shield, Front Seat Cushion, Inner Lh[05.2000 -] M10#,11# DARK GRAY,TRIMS6 |
71862-97401-B0 |
US $43.53 |
||
|
71862
|
71862
71862-97401-23 Shield, Front Seat Cushion, Inner Lh[05.2000 -] M10#,11# LT.GREENISH GRAY,TRIMS8 |
71862-97401-23 |
US $39.02 |
||
|
72129
|
72129
72129-97401 Protector, Seat Track Lower Rail, No.1[05.2000 -] M10#,11# フロント |
72129-97401 |
US $7.72 |
||
|
72129
|
72129
72137-97202 Protector, Seat Track Lower Rail, No.1[12.2001 -] M101,111..VS ﾚｶﾛｼ-ﾄ |
72137-97202 |
US $8.01 |
||
|
72129
|
72129
72137-97205 Protector, Seat Track Lower Rail, No.1[10.2002 -] M10#,11# リヤ |
72137-97205 |
US $5.24 |
||
|
72129
|
72129
72137-97401 Protector, Seat Track Lower Rail, No.1[05.2000 - 10.2002] M10#,11# リヤ |
72137-97401 |
US $6.84 |
||
|
72130
|
72130
72130-97205 Track Assy, Rh Seat, Inner[12.2001 -] M101,111..VS ﾚｶﾛｼ-ﾄ |
72130-97205 |
US $397.49 |
||
|
72130
|
72130
72130-97209 Track Assy, Rh Seat, Inner[05.2000 -] M101,111; M100,110..V V ﾘﾐﾃﾂﾄﾞ |
72130-97209 |
US $154.34 |
||
|
72140
|
72140
72140-97205 Track Assy, Lh Seat, Inner[12.2001 -] M101,111..VS ﾚｶﾛｼ-ﾄ |
72140-97205 |
US $397.49 |
||
|
72140
|
72140
72140-97208 Track Assy, Lh Seat, Inner[05.2000 -] M10#,11# |
72140-97208 |
US $179.09 |
||
|
72211
|
72211
72211-97201 Handle, Seat Track Adjusting[12.2001 -] M101,111..VS ﾚｶﾛｼ-ﾄ,右側 |
72211-97201 |
US $29.56 |
||
|
72211
|
72211
72211-97402 Handle, Seat Track Adjusting[05.2000 -] M101,111..4AT;M101,111..VS,X 右側; M100,110..V V ﾘﾐﾃﾂﾄﾞ,右側 |
72211-97402 |
US $27.08 |
||
|
72211
|
72211
72212-97201 Handle, Seat Track Adjusting[12.2001 -] M101,111..VS ﾚｶﾛｼ-ﾄ,左側 |
72212-97201 |
US $29.56 |
||
|
72211
|
72211
72212-97401 Handle, Seat Track Adjusting[05.2000 -] M10#,11# 左側 |
72212-97401 |
US $27.08 |
||
|
72265
|
72265
72265-87701 Cover, Seat Track, Upper Rear No.2[12.2001 -] M101,111..VS ﾚｶﾛｼ-ﾄ |
72265-87701 |
US $2.18 |
||
|
78733
|
78733
78733-97201 Plate, Front Seat Cushion, No.2 Rh[12.2001 -] M101,111..VS ﾚｶﾛｼ-ﾄ |
78733-97201 |
US $99.01 |
||
|
78743
|
78743
78743-97201 Plate, Front Seat Cushion, No.2 Lh[12.2001 -] M101,111..VS ﾚｶﾛｼ-ﾄ |
78743-97201 |
US $99.01 |
||
|
82666M
|
82666M
82666-87701 Holder, Connector[12.2001 -] M101,111..VS ﾚｶﾛｼ-ﾄ |
82666-87701 |
US $5.68 |
||
|
91511J0820
|
91511J0820
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91511-J0820 |
from US $1.07 |
||
|
9004119920
|
9004119920
90041-19920 New Genuine Part |
90041-19920 |
US $3.06 |
||
|
9004159350
|
9004159350
90041-59350 New Genuine Part |
90041-59350 |
US $1.75 |
||
|
9151180614
|
9151180614
91511-80614 BOLT FLANGE |
91511-80614 |
US $1.12 |
||
