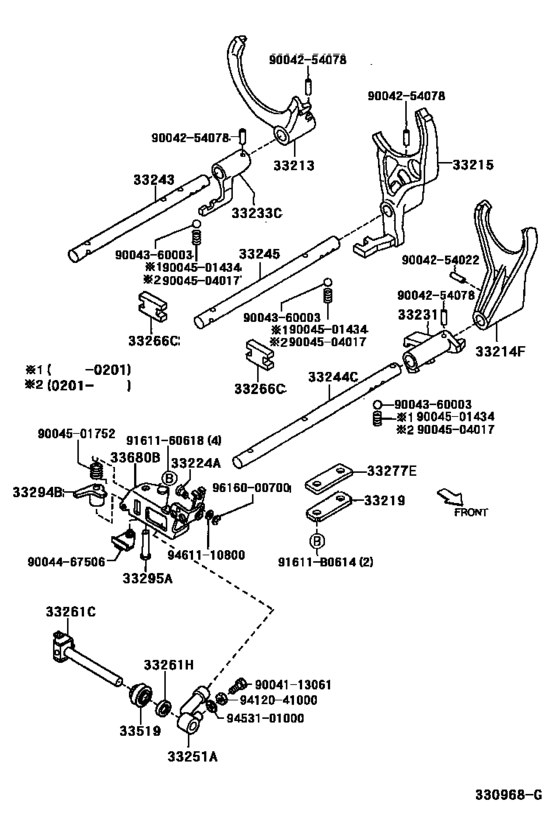

Gear Shift Fork & Lever Shaft (Mtm) ([09.1998 - ] (9809- )5F) Diagram Toyota DUET
- Year
- 2000 - 2004
- Sales region
- Japan
- Frame
- M111A
- grade
- VS
- ENGINE
- K3VE
- TRANSMISSION
- MTM
- From
- 05.2000
- To
- 05.2004
- Gear Shift Type
- 5F
- Fuel Induction
- WVVT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33213
|
33213
33213-97201 Fork, 1St & 2Nd Shift[09.1998 -] M10#,11#..5F |
33213-97201 |
US $42.08 |
||
|
33214F
|
33214F
33214-87704 Fork, 5Th Shift[09.1998 -] M10#,11#..5F |
33214-87704 |
US $40.62 |
||
|
33215
|
33215
33215-97201 Fork, 3Rd & 4Th Shift[09.1998 -] M10#,11#..5F |
33215-97201 |
US $66.83 |
||
|
33219
|
33219
33219-87701 Plate, Shift Fork Lock[09.1998 -] M10#,11#..5F |
33219-87701 |
US $3.20 |
||
|
33224A
|
33224A
33224-97201 Pin, Shift Arm[09.1998 -] M10#,11#..5F |
33224-97201 |
US $6.12 |
||
|
33231
|
33231
33231-97201 Head, Reverse Shift[09.1998 -] M10#,11#..5F |
33231-97201 |
US $39.02 |
||
|
33233C
|
33233C
33233-97202 Head, 1St & 2Nd Shift[09.1998 -] M10#,11#..5F |
33233-97202 |
US $33.78 |
||
|
33243
|
33243
33243-87706 Shaft, 1St & 2Nd Shift Fork[09.1998 -] M10#,11#..5F |
33243-87706 |
US $21.26 |
||
|
33244C
|
33244C
33244-87707 Shaft, Reverse & 5Th Shift Fork[09.1998 -] M10#,11#..5F |
33244-87707 |
US $23.15 |
||
|
33245
|
33245
33245-87706 Shaft, 3Rd & 4Th Shift Fork[09.1998 -] M10#,11#..5F |
33245-87706 |
US $19.66 |
||
|
33251A
|
33251A
33251-97201 Lever, Shift, Inner No.1[09.1998 -] M10#,11#..5F |
33251-97201 |
US $29.12 |
||
|
33261C
|
33261C
33250-97201 Shaft, Shift & Select Lever[09.1998 -] M10#,11#..5F |
33250-97201 |
US $60.86 |
||
|
33261H
|
33261H
90043-11331 Seal, Oil (For Shift & Select Lever Shaft)[09.1998 -] M10#,11#..5F |
90043-11331 |
US $7.84 |
||
|
33266C
|
33266C
33266-87702 Plate, Shift Inter Lock[09.1998 -] M10#,11#..5F |
33266-87702 |
US $6.12 |
||
|
33277E
|
33277E
33277-87702 Gasket, Lock Ball Plate[09.1998 -] M10#,11#..5F |
33277-87702 |
US $2.33 |
||
|
33294B
|
33294B
33294-97201 Cam, Reverse Restrict[09.1998 -] M10#,11#..5F |
33294-97201 |
US $17.47 |
||
|
33295A
|
33295A
33295-87701 Shaft, Reverse Restrict[09.1998 -] M10#,11#..5F |
33295-87701 |
US $6.70 |
||
|
33519
|
33519
33519-97202 Boot, Control Shaft Dust[09.1998 -] M10#,11#..5F |
33519-97202 |
US $8.04 |
||
|
33680B
|
33680B
33680-97201 Support Assy, Bell Crank[09.1998 - 10.2002] M10#,11#..5F |
33680-97201 |
US $144.14 |
||
|
33680B
|
33680B
33680-97202 Support Assy, Bell Crank[10.2002 -] M10#,11#..5F |
33680-97202 |
US $97.55 |
||
|
91611B0614
|
91611B0614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.88 |
||
|
9004113061
|
9004113061
90041-13061 New Genuine Part |
90041-13061 |
US $2.62 |
||
|
9004254022
|
9004254022
90042-54022 Pin, Slotted Spring (For Shift Inner Lever) |
90042-54022 |
US $1.89 |
||
|
9004254078
|
9004254078
90042-54078 Pin, Slotted Spring |
90042-54078 |
from US $2.27 |
||
|
9004360003
|
9004360003
90043-60003 Ball, Shaft Detent |
90043-60003 |
US $1.31 |
||
|
9004467506
|
9004467506
90044-67506 New Genuine Part |
90044-67506 |
US $2.77 |
||
|
9004501434
|
9004501434
90045-01434 New Genuine Part |
90045-01434 |
US $2.62 |
||
|
9004501752
|
9004501752
90045-01752 New Genuine Part |
90045-01752 |
US $2.04 |
||
|
9004504017
|
9004504017
90045-04017 New Genuine Part |
90045-04017 |
US $2.62 |
||
| replacement | |||||
|
9004504017
|
9004504017
90045-01434 New Genuine Part |
90045-01434 |
US $2.62 |
||
|
9161160618
|
9161160618
91611-60618 Bolt(For Oil Receiver Pipe) |
91611-60618 |
US $1.92 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.80 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
|
9453101000
|
9453101000
94531-01000 WASHER |
94531-01000 |
from US $1.44 |
||
|
9461110800
|
9461110800
94611-10800 Washer, Plate (For Transmission Control Cable) |
94611-10800 |
from US $0.96 |
||
|
9616000700
|
9616000700
96160-00700 Ring, E(For Chain Tensioner Slipper) |
96160-00700 |
US $3.20 |
||
