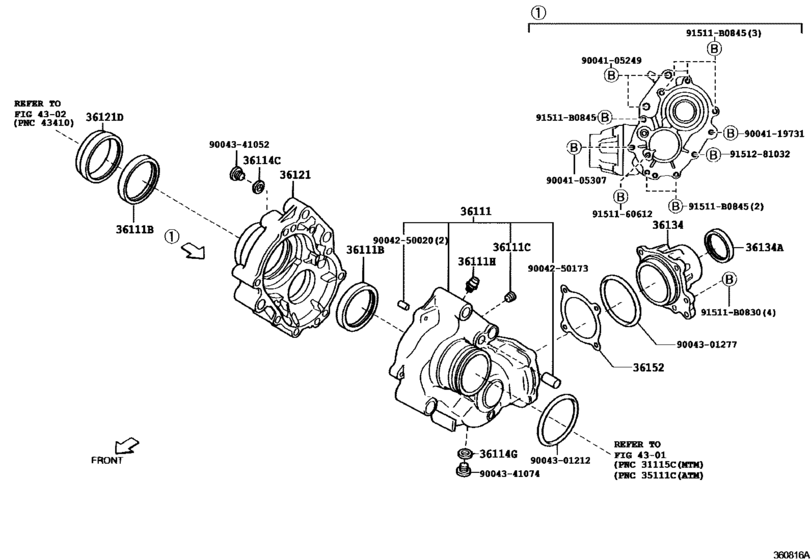

Transfer Case & Extension Housing ([10.2002 - ] (0210- )M11#) Diagram Toyota DUET
- Year
- 2000 - 2004
- Sales region
- Japan
- Frame
- M111A
- grade
- VS
- ENGINE
- K3VE
- TRANSMISSION
- MTM
- From
- 05.2000
- To
- 05.2004
- Gear Shift Type
- 5F
- Fuel Induction
- WVVT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
36111
|
36111
36101-97203 Case, Transfer[10.2002 -] M11# |
36101-97203 |
US $409.14 |
||
|
36111
|
36111
36101-97401 Case, Transfer[03.2000 - 10.2002] M11# |
36101-97401 |
US $289.74 |
||
| replacement | |||||
|
36111
|
36111
36101-97204 Case, Transfer[03.2000 - 10.2002] M11# |
36101-97204 |
US $289.74 |
||
|
36111B
|
36111B
90043-16019 Seal, Oil (For Transfer Case)[09.1998 -] M11# |
90043-16019 |
US $16.31 |
||
|
36111C
|
36111C
90043-44020 Plug (For Transfer Case)[03.2000 -] M11# |
90043-44020 |
US $1.60 |
||
|
36111H
|
36111H
90049-15026 Plug(For Clutch Housing)[09.1998 -] M11# |
90049-15026 |
US $7.04 |
||
|
36114C
|
36114C
90044-30178 Gasket, Transmission Case Plug[09.1998 -] M11# |
90044-30178 |
US $1.12 |
||
|
36114G
|
36114G
90044-30178 Gasket, Transmission Case Plug[09.1998 -] M11# |
90044-30178 |
US $1.12 |
||
|
36121
|
36121
36121-97201 Cover, Transfer Case, No.1[09.1998 - 11.2001] M11# |
36121-97201 |
US $202.38 |
||
| replacement | |||||
|
36121
|
36121
36121-97206 Cover, Transfer Case, No.1[09.1998 - 11.2001] M11# |
36121-97206 |
US $224.22 |
||
|
36121
|
36121
36121-97202 Cover, Transfer Case, No.1[11.2001 - 10.2002] M11# |
36121-97202 |
US $224.22 |
||
| replacement | |||||
|
36121
|
36121
36121-97206 Cover, Transfer Case, No.1[11.2001 - 10.2002] M11# |
36121-97206 |
US $224.22 |
||
|
36121
|
36121
36121-97205 Cover, Transfer Case, No.1[10.2002 -] M11# |
36121-97205 |
US $314.50 |
||
|
36121D
|
36121D
90043-11333 Seal, Oil(For Transfer Case Cover)[09.1998 -] M11# |
90043-11333 |
US $11.52 |
||
|
36134
|
36134
36134-97203 Retainer, Output Shaft Bearing, Front[11.2001 - 10.2002] M11# |
36134-97203 |
US $62.32 |
||
|
36134
|
36134
36134-97204 Retainer, Output Shaft Bearing, Front[10.2002 -] M11# |
36134-97204 |
US $44.26 |
||
| replacement | |||||
|
36134
|
36134
36134-B1020 Retainer, Output Shaft Bearing, Front[10.2002 -] M11# |
36134-B1020 |
US $85.90 |
||
|
36134
|
36134
36134-97401 Retainer, Output Shaft Bearing, Front[03.2000 - 11.2001] M11# |
36134-97401 |
US $39.75 |
||
| replacement | |||||
|
36134
|
36134
36134-97203 Retainer, Output Shaft Bearing, Front[03.2000 - 11.2001] M11# |
36134-97203 |
US $62.32 |
||
|
36134A
|
36134A
90043-11332
Seal, Oil (For Output Shaft Bearing Front Retainer)
[09.1998 -] M11# |
90043-11332 |
— | ||
| replacement | |||||
|
36134A
|
36134A
90043-11414 Seal, Oil (For Output Shaft Bearing Front Retainer)[09.1998 -] M11# |
90043-11414 |
US $8 |
||
|
36152
|
36152
90045-65066 Gasket, Output Shaft Bearing Retainer[09.1998 - 10.2002] M11# 厚さ＝０．２０ |
90045-65066 |
US $7.86 |
||
|
36152
|
36152
90045-65067 Gasket, Output Shaft Bearing Retainer[09.1998 - 10.2002] M11# 厚さ＝０．２５ |
90045-65067 |
US $7.86 |
||
|
36152
|
36152
90045-65068 Gasket, Output Shaft Bearing Retainer[09.1998 - 10.2002] M11# 厚さ＝０．３０ |
90045-65068 |
US $7.86 |
||
|
36152
|
36152
90045-65069 Gasket, Output Shaft Bearing Retainer[09.1998 - 10.2002] M11# 厚さ＝０．３５ |
90045-65069 |
US $7.86 |
||
|
36152
|
36152
90045-65070 Gasket, Output Shaft Bearing Retainer[09.1998 - 10.2002] M11# 厚さ＝０．４０ |
90045-65070 |
US $7.86 |
||
|
36152
|
36152
90045-65071 Gasket, Output Shaft Bearing Retainer[09.1998 - 10.2002] M11# 厚さ＝０．４５ |
90045-65071 |
US $7.86 |
||
|
36152
|
36152
90045-65122 Shim, Pinion Bearing Cage[10.2002 -] M11# 厚さ＝０．２０ |
90045-65122 |
US $4.22 |
||
|
36152
|
36152
90045-65123 Shim, Pinion Bearing Cage[10.2002 -] M11# 厚さ＝０．２５ |
90045-65123 |
US $4.37 |
||
|
36152
|
36152
90045-65124 Shim, Pinion Bearing Cage[10.2002 -] M11# 厚さ＝０．３０ |
90045-65124 |
US $4.66 |
||
|
36152
|
36152
90045-65125 Shim, Pinion Bearing Cage[10.2002 -] M11# 厚さ＝０．３５ |
90045-65125 |
US $4.80 |
||
|
36152
|
36152
90045-65126 Shim, Pinion Bearing Cage[10.2002 -] M11# 厚さ＝０．４０ |
90045-65126 |
US $5.24 |
||
|
36152
|
36152
90045-65127 Shim, Pinion Bearing Cage[10.2002 -] M11# 厚さ＝０．４５ |
90045-65127 |
US $5.97 |
||
|
91511B0830
|
91511B0830
91511-B0830 Bolt Or Ring, Exhaust Pipe Front (For Front) |
91511-B0830 |
from US $1.01 |
||
|
91511B0845
|
91511B0845
91511-B0845 Bolt |
91511-B0845 |
US $3.04 |
||
|
9004105249
|
9004105249
90041-05249 New Genuine Part |
90041-05249 |
US $9.46 |
||
|
9004105307
|
9004105307
90041-05307 New Genuine Part |
90041-05307 |
US $3.93 |
||
|
9004119731
|
9004119731
90041-19731 New Genuine Part |
90041-19731 |
US $10.77 |
||
|
9004250020
|
9004250020
90042-50020 Pin, Straight(For Transfer Case Cover) |
90042-50020 |
US $2.04 |
||
|
9004250173
|
9004250173
90042-50173 Pin, Straight (For Transfer Case) |
90042-50173 |
US $4.22 |
||
|
9004301212
|
9004301212
90043-01212 New Genuine Part |
90043-01212 |
US $6.56 |
||
|
9004301277
|
9004301277
90043-01277 New Genuine Part |
90043-01277 |
US $4.80 |
||
|
9004341052
|
9004341052
90043-41052
Plug, W/head Straight Screw
|
90043-41052 |
— | ||
| replacement | |||||
|
9004341052
|
9004341052
90341-16012 Plug(For Transmission Case) |
90341-16012 |
US $4.16 |
||
|
9004341074
|
9004341074
90043-41074 New Genuine Part |
90043-41074 |
US $3.93 |
||
|
9151160612
|
9151160612
91511-60612 BOLT |
91511-60612 |
US $1.76 |
||
|
9151281032
|
9151281032
91512-81032 New Genuine Part |
91512-81032 |
US $1.76 |
||
