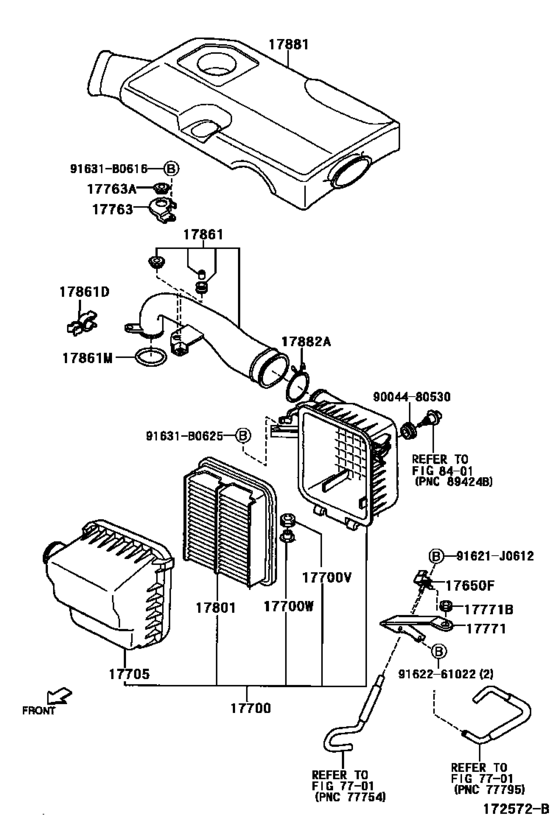

Air Cleaner ([05.2000 - ] (0005- )K3VE) Diagram Toyota DUET
- Year
- 2000 - 2001
- Sales region
- Japan
- Frame
- M111A
- grade
- V
- ENGINE
- K3VE
- TRANSMISSION
- ATM
- From
- 05.2000
- To
- 12.2001
- Gear Shift Type
- 4AT
- Fuel Induction
- WVVT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17650F
|
17650F
17650-97405 Valve Assy, Air By-Pass, No.2[05.2000 -] K3VE..M101,111 |
17650-97405 |
US $81.54 |
||
|
17700
|
17700
17700-97401
Cleaner Assy, Air
[05.2000 -] K3VE..M101,111 |
17700-97401 |
— | ||
|
17700V
|
17700V
90044-80597 Bush(For Air Cleaner)[09.1998 -] K3VE,EJ#..M10#,11# |
90044-80597 |
US $5.68 |
||
|
17700W
|
17700W
90043-89142 Spacer(For Air Cleaner)[09.1998 -] K3VE,EJ#..M10#,11# |
90043-89142 |
US $3.49 |
||
|
17705
|
17705
17705-97401 Cap Sub-Assy, Air Cleaner[05.2000 -] K3VE..M101,111 |
17705-97401 |
US $122.30 |
||
|
17763
|
17763
17762-97401 Stay, Air Cleaner Inlet Duct[05.2000 -] K3VE..M101,111 |
17762-97401 |
US $10.19 |
||
|
17763A
|
17763A
90044-80625 Grommet[05.2000 -] K3VE..M101,111 |
90044-80625 |
US $4.02 |
||
|
17771
|
17771
17771-97401 Bracket, Air Cleaner Inlet Duct[05.2000 -] K3VE..M101,111 |
17771-97401 |
US $39.75 |
||
|
17771B
|
17771B
90044-80598 Grommet[09.1998 -] K3VE,EJ#..M10#,11# |
90044-80598 |
US $3.84 |
||
|
17801
|
17801
17801-97201 Element Sub-Assy, Air Cleaner Filter[09.1998 -] K3VE,EJ#..M10#,11# |
17801-97201 |
US $32.03 |
||
|
17861
|
17861
17860-97402 Connector, Intake Air[05.2000 -] K3VE..M101,111 |
17860-97402 |
US $103.38 |
||
|
17861D
|
17861D
90044-64259 Clamp, No.2(For Vacuum Hose)[05.2000 -] K3VE..M101,111 |
90044-64259 |
US $2.04 |
||
|
17861M
|
17861M
90043-01237 Gasket, Air Cleaner To Carburetor[05.2000 -] K3VE..M101,111 |
90043-01237 |
US $10.34 |
||
|
17881
|
17881
17881-97401 Hose, Air Cleaner, No.1[05.2000 -] K3VE..M101,111 |
17881-97401 |
US $163.07 |
||
|
17882A
|
17882A
90044-67356 Clamp(For Air Cleaner Hose, No.1)[05.2000 -] K3VE..M101,111 |
90044-67356 |
US $5.59 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
|
91631B0616
|
91631B0616
91631-B0616 BOLT WWASHER |
91631-B0616 |
from US $0.70 |
||
|
91631B0625
|
91631B0625
91631-B0625 BOLT W-WASHER |
91631-B0625 |
from US $0.72 |
||
|
9004480530
|
9004480530
90044-80530
Bush(For Air Cleaner)
|
90044-80530 |
— | ||
|
9162261022
|
9162261022
91622-61022 BOLT WWASHER |
91622-61022 |
US $1.25 |
