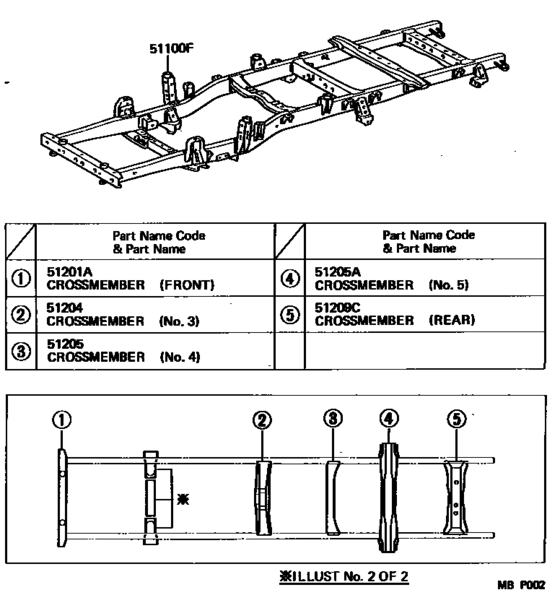

Frame ([08.1987 - ] (8708- )) Diagram Toyota DYNA 100
- Year
- 1987 - 1995
- Sales region
- Europe
- Frame
- LH80
- body
- T3
- ENGINE
- 2L
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- DYNA 100
- From
- 08.1987
- To
- 05.1995
- Gear Shift Type
- 5F
- Vehicle Model
- Dyna 100
- Driver's Position
- LHD
- Building Condition
- IV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51100F
|
51100F
51001-26321 Frame Sub-Assy[08.1987 - 09.1991] LH80..T3..EUR |
51001-26321 |
US $3,174.08 |
||
| replacements | |||||
|
51100F
|
51100F
45403-26091
Bracket Sub-Assy, Center Arm
[08.1987 - 09.1991] LH80..T3..EUR |
45403-26091 |
— | ||
|
51100F
|
51100F
44110-26070
Gear Assy, Power Steering
[08.1987 - 09.1991] LH80..T3..EUR |
44110-26070 |
— | ||
|
51100F
|
51100F
44413-26080 Tube, Pressure Feed, No.1PRESSURE FEED, NO.1 [08.1987 - 09.1991] LH80..T3..EUR |
44413-26080 |
US $254.80 |
||
|
51100F
|
51100F
45310-25080 Housing Assy, Steering Gear[08.1987 - 09.1991] LH80..T3..EUR |
45310-25080 |
US $990.08 |
||
|
51100F
|
51100F
45312-26170 Bracket, Steering Gear HousingSTEERING GEAR HOUSING [08.1987 - 09.1991] LH80..T3..EUR |
45312-26170 |
US $82.99 |
||
|
51100F
|
51100F
45490-29515 Arm Assy, Steering Idler[08.1987 - 09.1991] LH80..T3..EUR |
45490-29515 |
US $156.96 |
||
|
51100F
|
51100F
51001-26322 Frame Sub-Assy[08.1987 - 09.1991] LH80..T3..EUR |
51001-26322 |
US $3,130.40 |
||
|
51100F
|
51100F
90105-12118 New Genuine Part[08.1987 - 09.1991] LH80..T3..EUR |
90105-12118 |
US $5.39 |
||
|
51100F
|
51100F
90105-12234 New Genuine Part[08.1987 - 09.1991] LH80..T3..EUR |
90105-12234 |
US $2.04 |
||
|
51100F
|
51100F
90105-14085 New Genuine Part[08.1987 - 09.1991] LH80..T3..EUR |
90105-14085 |
US $8.15 |
||
|
51100F
|
51100F
90105-14086 New Genuine Part[08.1987 - 09.1991] LH80..T3..EUR |
90105-14086 |
US $5.68 |
||
|
51100F
|
51100F
90170-14012 Nut, Rack End Lock[08.1987 - 09.1991] LH80..T3..EUR |
90170-14012 |
from US $1.13 |
||
|
51100F
|
51100F
90179-12025 Nut (For Rear Axle Carrier)[08.1987 - 09.1991] LH80..T3..EUR |
90179-12025 |
from US $1.21 |
||
|
51100F
|
51100F
90179-14019 Nut[08.1987 - 09.1991] LH80..T3..EUR |
90179-14019 |
from US $1.40 |
||
|
51100F
|
51100F
90461-12389 New Genuine Part[08.1987 - 09.1991] LH80..T3..EUR |
90461-12389 |
US $4.95 |
||
|
51100F
|
51100F
90949-01770 New Genuine Part[08.1987 - 09.1991] LH80..T3..EUR |
90949-01770 |
US $3.06 |
||
|
51100F
|
51100F
94621-11200 New Genuine Part[08.1987 - 09.1991] LH80..T3..EUR |
94621-11200 |
US $3.20 |
||
|
51100F
|
51100F
94621-11400 WASHER[08.1987 - 09.1991] LH80..T3..EUR |
94621-11400 |
from US $2.56 |
||
|
51100F
|
51100F
90105-14143 New Genuine Part[08.1987 - 09.1991] LH80..T3..EUR |
90105-14143 |
US $8.16 |
||
|
51100F
|
51100F
51001-26322 Frame Sub-Assy[09.1991 - 05.1995] LH80..T3..EUR |
51001-26322 |
US $3,130.40 |
||
|
51201A
|
51201A
51201-26071 Crossmember Sub-Assy, Frame, FrontFRAME, FRONT [08.1987 - 02.1988] LH80,YH81..LHD |
51201-26071 |
US $230.05 |
||
| replacement | |||||
|
51201A
|
51201A
51201-26073 Crossmember Sub-Assy, Frame, FrontFRAME, FRONT [08.1987 - 02.1988] LH80,YH81..LHD |
51201-26073 |
US $228.59 |
||
|
51201A
|
51201A
51201-26072 Crossmember Sub-Assy, Frame, FrontFRAME, FRONT [02.1988 - 09.1991] LH80,YH81..LHD |
51201-26072 |
US $230.05 |
||
| replacement | |||||
|
51201A
|
51201A
51201-26073 Crossmember Sub-Assy, Frame, FrontFRAME, FRONT [02.1988 - 09.1991] LH80,YH81..LHD |
51201-26073 |
US $228.59 |
||
|
51201A
|
51201A
51201-26073 Crossmember Sub-Assy, Frame, FrontFRAME, FRONT [09.1991 - 05.1995] LH80,YH81..LHD |
51201-26073 |
US $228.59 |
||
|
51204
|
51204
51203-26120 Crossmember Sub-Assy, Frame, No.3[08.1987 - 05.1995] LH80,YH81 |
51203-26120 |
US $257.71 |
||
|
51205
|
51205
51204-26020 Crossmember Sub-Assy, Frame, No.4[08.1987 - 05.1995] LH80,YH81 |
51204-26020 |
US $128.13 |
||
| replacement | |||||
|
51205
|
51205
51204-26021 Crossmember Sub-Assy, Frame, No.4[08.1987 - 05.1995] LH80,YH81 |
51204-26021 |
US $131.04 |
||
|
51209C
|
51209C
51209-26030 Crossmember Sub-Assy, Frame, No.5[08.1987 - 05.1995] LH80,YH81 |
51209-26030 |
US $131.04 |
||
