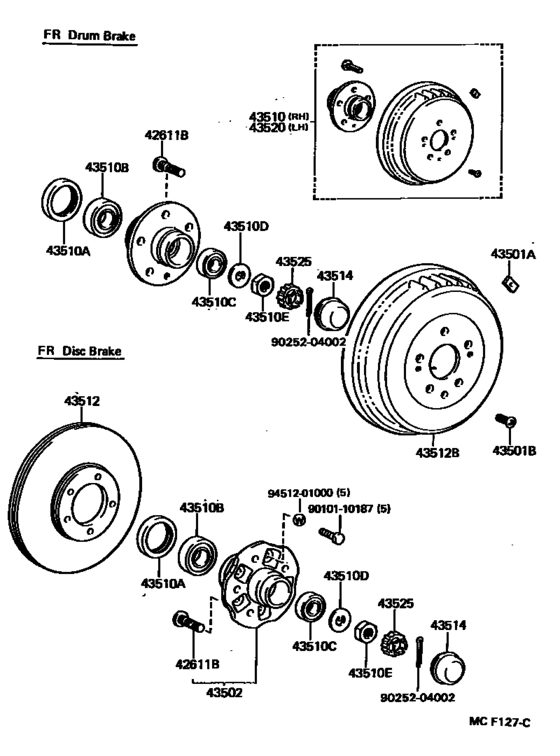

Front Axle Hub ([08.1987 - ] (8708- )) Diagram Toyota DYNA 100
- Year
- 1987 - 1995
- Sales region
- Europe
- Frame
- LH80
- body
- T3
- ENGINE
- 2L
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- DYNA 100
- From
- 08.1987
- To
- 05.1995
- Gear Shift Type
- 5F
- Vehicle Model
- Dyna 100
- Driver's Position
- LHD
- Building Condition
- IV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42611B
|
42611B
90942-02047 Bolt, Hub[08.1987 - 09.1993] LH80,YH81..ARL,EUR; LH80,YH81..GEN W(FRONT DISC BRAKE) |
90942-02047 |
from US $3.68 |
||
|
43502
|
43502
43502-26050 Hub Sub-Assy, Front Axle[08.1987 - 09.1993] YH81;LH80..IV;LH80..EUR..CBU; LH80..GEN..CBU W(FRONT DISC BRAKE) |
43502-26050 |
US $183.46 |
||
|
43510A
|
43510A
90311-50005 Seal, Oil (For Front Axle Hub)[08.1987 - 05.1995] LH80,YH81 |
90311-50005 |
from US $8.64 |
||
|
43510B
|
43510B
90368-34001 Bearing[08.1987 - 05.1995] LH80,YH81 |
90368-34001 |
from US $29.79 |
||
|
43510C
|
43510C
90368-21001 Bearing, Tapered Roller (For Front Axle Outer Bearing)[08.1987 - 05.1995] LH80,YH81 |
90368-21001 |
from US $28.73 |
||
|
43510D
|
43510D
90214-20007 Washer, Claw (For Front Axle Hub Rh)[08.1987 - 05.1995] LH80,YH81 |
90214-20007 |
from US $1.33 |
||
|
43510E
|
43510E
90170-19185 Nut (For Axle Shaft)[08.1987 - 05.1995] LH80,YH81 |
90170-19185 |
from US $3.22 |
||
|
43512
|
43512
43512-26040 Disc, Front[08.1987 - 03.1988] YH81;LH80..IV;LH80..EUR..CBU; LH80..GEN..CBU W(FRONT DISC BRAKE) |
43512-26040 |
US $149.97 |
||
| replacement | |||||
|
43512
|
43512
43512-35180 Disc, Front[08.1987 - 03.1988] YH81;LH80..IV;LH80..EUR..CBU; LH80..GEN..CBU W(FRONT DISC BRAKE) |
43512-35180 |
from US $161.28 |
||
|
43512
|
43512
43512-26070 Disc, Front[03.1988 - 09.1993] YH81;LH80..IV;LH80..EUR..CBU; LH80..GEN..CBU W(FRONT DISC BRAKE) |
43512-26070 |
US $149.97 |
||
| replacement | |||||
|
43512
|
43512
43512-35180 Disc, Front[03.1988 - 09.1993] YH81;LH80..IV;LH80..EUR..CBU; LH80..GEN..CBU W(FRONT DISC BRAKE) |
43512-35180 |
from US $161.28 |
||
|
43514
|
43514
43514-35010 Cap, Front Hub Grease[08.1987 - 05.1995] LH80,YH81 |
43514-35010 |
from US $9.44 |
||
|
43525
|
43525
43525-22010 Cap, Front Wheel Adjusting Lock[08.1987 - 05.1995] LH80,YH81 |
43525-22010 |
from US $2.52 |
||
|
9010110187
|
9010110187
90101-10187 New Genuine Part |
90101-10187 |
US $2.48 |
||
|
9025204002
|
9025204002
90252-04002 PIN |
90252-04002 |
US $0.48 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.76 |
||
