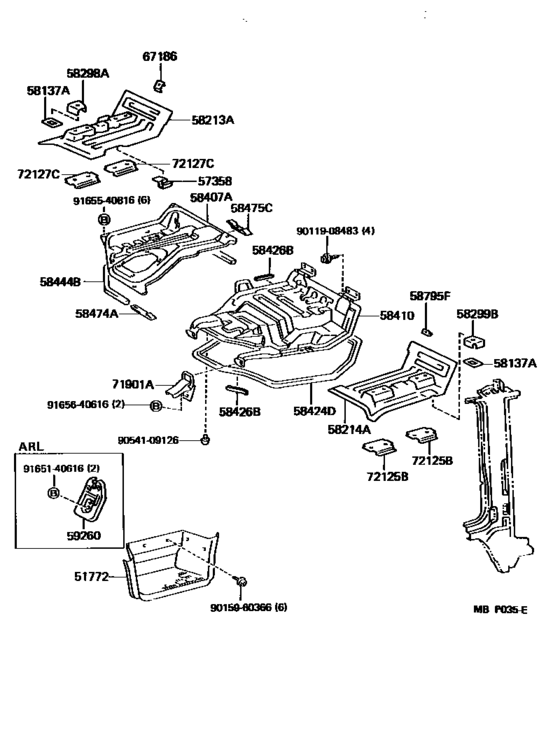

Front Floor Panel & Front Floor Member ([08.1987 - ] (8708- )) Diagram Toyota DYNA 100
- Year
- 1987 - 1995
- Sales region
- Europe
- Frame
- LH80
- body
- T3
- ENGINE
- 2L
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- DYNA 100
- From
- 08.1987
- To
- 05.1995
- Gear Shift Type
- 5F
- Vehicle Model
- Dyna 100
- Driver's Position
- LHD
- Building Condition
- IV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51772
|
51772
51771-95406 Step Plate (RH)[08.1987 - 05.1995] LH80,YH81 RH |
51771-95406 |
US $84.36 |
||
|
51772
|
51772
51772-95406 Step Plate (LH)[08.1987 - 05.1995] LH80,YH81 LH |
51772-95406 |
US $84.36 |
||
|
57358
|
57358
57358-95010 Bracket, Radiator Pipe Clamp[08.1987 - 05.1995] LH80,YH81 |
57358-95010 |
US $5.24 |
||
|
58137A
|
58137A
58137-95400 Seal, Front Floor Hole[08.1987 - 05.1995] LH80,YH81 |
58137-95400 |
US $8.88 |
||
|
58213A
|
58213A
58213-95421
Panel, Seat Floor, Rh
[08.1987 - 05.1995] LH80,YH81..LHD |
58213-95421 |
— | ||
|
58214A
|
58214A
58214-95416
Panel, Seat Floor, Lh
[08.1987 - 05.1995] LH80,YH81..LHD |
58214-95416 |
— | ||
|
58298A
|
58298A
58298-95400 Reinforcement, Seat Belt Anchor Floor, Rh[08.1987 - 05.1995] LH80,YH81 |
58298-95400 |
US $11.79 |
||
|
58299B
|
58299B
58298-95400 Reinforcement, Seat Belt Anchor Floor, Rh[08.1987 - 05.1995] LH80,YH81 |
58298-95400 |
US $11.79 |
||
|
58407A
|
58407A
58407-95A17 Cover Sub-Assy, Engine Service Hole SubENGINE SERVICE HOLE SUB [08.1987 - 05.1995] LH80,YH81..EUR |
58407-95A17 |
US $281.01 |
||
|
58410
|
58410
59208-95402 Cover, Engine Service HoleENGINE SERVICE HOLE [08.1987 - 05.1995] LH80,YH81..EUR |
59208-95402 |
US $262.08 |
||
|
58424D
|
58424D
58424-95405 Packing, Engine Service Hole Cover, No.1[08.1987 - 05.1995] LH80,YH81 |
58424-95405 |
US $82.99 |
||
|
58426B
|
58426B
58426-95405 Protector, Engine Service Hole[08.1987 - 03.1988] LH80,YH81..LHD |
58426-95405 |
US $2.48 |
||
|
58444B
|
58444B
58444-95402 Packing, Engine Service Hole Cover Sub, No.1[08.1987 - 05.1995] LH80,YH81 |
58444-95402 |
US $14.71 |
||
| replacement | |||||
|
58444B
|
58444B
58444-37010 Packing, Engine Sub Cover[08.1987 - 05.1995] LH80,YH81 |
58444-37010 |
US $14.71 |
||
|
58474A
|
58474A
58474-95401 Packing, Engine Sub Cover, No.2[08.1987 - 05.1995] LH80,YH81 |
58474-95401 |
US $6.99 |
||
|
58475C
|
58475C
58475-95A01 Packing, Engin Sub Cover, No.3[08.1987 - 05.1995] LH80,YH81 |
58475-95A01 |
US $6.99 |
||
|
67186
|
67186
67186-95400 Reinforcement, Front Slide Door Arm Bracket, No.2[08.1987 - 05.1995] LH80,YH81..LHD; YH81..ARL..CBU; LH80,YH81..RHD..T3 |
67186-95400 |
US $8.88 |
||
|
71901A
|
71901A
71901-95704-01 Catch, Engine Service Hole Cover[06.1989 - 09.1991] LH80,YH81..EUR,GEN BLACK,TRIM4# |
71901-95704-01 |
US $12.52 |
||
|
71901A
|
71901A
71901-95704-03 Catch, Engine Service Hole Cover[08.1987 - 06.1989] LH80,YH81..EUR,GEN SHADOW GRAY,TRIM4# |
71901-95704-03 |
US $12.81 |
||
|
72125B
|
72125B
72125-95400 Retainer, Seat Track, Front Rh[08.1987 - 05.1995] LH80,YH81..LHD |
72125-95400 |
US $12.52 |
||
|
9011908483
|
9011908483
90119-08483 New Genuine Part |
90119-08483 |
US $1.46 |
||
|
9015960366
|
9015960366
90159-60366 New Genuine Part |
90159-60366 |
US $1.92 |
||
|
9054109126
|
9054109126
90541-09126 Cushion, No.1 |
90541-09126 |
US $2.08 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.80 |
||
| replacements | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.54 |
||
|
9165140616
|
9165140616
90080-11395 New Genuine Part |
90080-11395 |
US $2.73 |
||
|
9165540816
|
9165540816
91655-40816 New Genuine Part |
91655-40816 |
US $1.89 |
||
| replacement | |||||
|
9165540816
|
9165540816
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.88 |
||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
