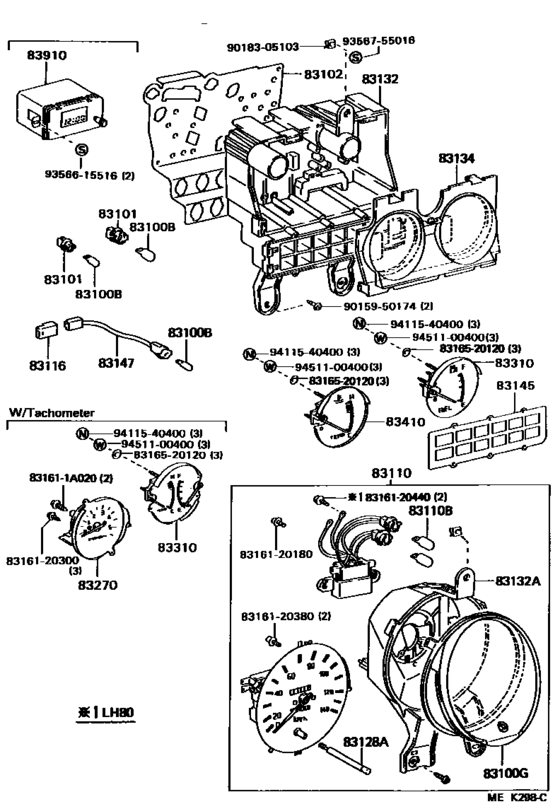

Meter ([08.1987 - ] (8708- )) Diagram Toyota DYNA 100
- Year
- 1987 - 1995
- Sales region
- Europe
- Frame
- LH80
- body
- T3
- ENGINE
- 2L
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- DYNA 100
- From
- 08.1987
- To
- 05.1995
- Gear Shift Type
- 5F
- Vehicle Model
- Dyna 100
- Driver's Position
- LHD
- Building Condition
- IV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[08.1987 - 05.1995] LH80..EUR 12V 1.2W W/O SOCKET,SOCKET:83101-14040 |
90981-11018 |
from US $2.24 |
||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[08.1987 - 06.1991] LH80..EUR 12V 3.4W,SOCKET:83101-20040 |
99132-12034 |
from US $1.60 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[08.1987 - 06.1991] LH80..EUR 12V 3.4W,SOCKET:83101-20040 |
00234-00158 |
US $1.59 |
||
|
83100G
|
83100G
83134-95000 Glass, Combination MeterCOMBINATION METER [08.1987 - 09.1993] LH80,YH81..EUR,GEN |
83134-95000 |
US $70.18 |
||
|
83100G
|
83100G
83134-95408 Cover, Combination Meter, No.1[08.1987 - 09.1993] LH80,YH81..ARL; LH80,YH81..EUR,GEN W(TRIP METER) |
83134-95408 |
US $70.18 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[08.1987 - 05.1995] LH80..EUR BULB:90981-11018 |
83101-14040 |
US $2.98 |
||
|
83101
|
83101
83101-20040 Socket, Bulb(For Map Lamp)[08.1987 - 06.1991] LH80..EUR BULB:99132-12034 |
83101-20040 |
from US $1.70 |
||
|
83102
|
83102
83247-95K02 Plate Sub-Assy, Combination Meter Circuit, No.1[08.1987 - 05.1995] LH80..EUR |
83247-95K02 |
US $29.70 |
||
|
83102
|
83102
83247-95K03 Plate Sub-Assy, Combination Meter Circuit, No.1COMBINATION METER CIRCUIT, NO.1 [08.1987 - 05.1995] LH80..EUR W(AIR CLEANER) |
83247-95K03 |
US $29.70 |
||
|
83102
|
83102
83247-95K04
Plate Sub-Assy, Combination Meter Circuit, No.1
[08.1987 - 08.1994] LH80..EUR W(TACHOMETER) |
83247-95K04 |
— | ||
|
83102
|
83102
83247-95K05 Plate Sub-Assy, Combination Meter Circuit, No.1COMBINATION METER CIRCUIT, NO.1 [08.1987 - 04.1994] LH80..EUR W(AIR CLEANER & TACHOMETER) |
83247-95K05 |
US $29.70 |
||
|
83110
|
83110
83110-95033 Speedometer Assy[08.1987 - 09.1993] LH80..EUR,GEN W(TRIP METER) |
83110-95033 |
US $353.81 |
||
|
83110
|
83110
83110-95036 Speedometer Assy[08.1987 - 09.1993] LH80..EUR,GEN |
83110-95036 |
US $353.81 |
||
|
83110B
|
83110B
99132-12034 Bulb, Position Indicator Lamp[08.1987 - 05.1995] LH80,YH81 |
99132-12034 |
from US $1.60 |
||
| replacement | |||||
|
83110B
|
83110B
00234-00158 Bulb, Position Indicator Lamp[08.1987 - 05.1995] LH80,YH81 |
00234-00158 |
US $1.59 |
||
|
83116
|
83116
83116-95M00 Bracket, Speedometer[10.1989 - 05.1995] LH80,YH81 |
83116-95M00 |
US $7.43 |
||
|
83128A
|
83128A
83128-89300
Knob, Trip Counter
[08.1987 - 05.1995] LH80,YH81 |
83128-89300 |
— | ||
|
83132
|
83132
83132-95B00 Case, Combination Meter[08.1987 - 08.1988] YH81;LH80..ARL,EUR W(TACHOMETER) |
83132-95B00 |
US $72.80 |
||
|
83132
|
83132
83132-95B01 Case, Combination Meter[08.1987 - 08.1988] LH80,YH81 |
83132-95B01 |
US $72.80 |
||
|
83132A
|
83132A
83132-95404 Case, Combination Meter[08.1987 - 05.1995] LH80,YH81 |
83132-95404 |
US $74.26 |
||
|
83134
|
83134
83134-95B00 Cover, Combination Meter, No.1[08.1987 - 08.1988] YH81;LH80..ARL,EUR W(TACHOMETER) |
83134-95B00 |
US $149.97 |
||
|
83134
|
83134
83134-95B01 Cover, Combination Meter, No.1[08.1987 - 08.1988] LH80,YH81 |
83134-95B01 |
US $149.97 |
||
|
83145
|
83145
83145-95033
Lens, Meter, No.1
[08.1987 - 10.1989] LH80..EUR W(AIR CLEANER) |
83145-95033 |
— | ||
|
83145
|
83145
83145-95034 Lens, Meter, No.1METER, NO.1 [08.1987 - 10.1989] LH80..EUR |
83145-95034 |
US $18.78 |
||
|
83145
|
83145
83145-95L04 Lens, Meter, No.1METER, NO.1 [10.1989 - 08.1994] LH80..EUR |
83145-95L04 |
US $18.64 |
||
|
83145
|
83145
83145-95L05 Lens, Meter, No.1METER, NO.1 [10.1989 - 05.1995] LH80..EUR W(AIR CLEANER) |
83145-95L05 |
US $18.64 |
||
|
83147
|
83147
83147-95M02 Lamp, Meter No.1[10.1989 - 05.1995] LH80,YH81 |
83147-95M02 |
US $16.89 |
||
|
83270
|
83270
83242-95000 Tachometer Assy, EngineENGINE [08.1987 - 08.1994] LH80..ARL,EUR |
83242-95000 |
US $484.85 |
||
|
83310
|
83310
83243-95B01 Gage Assy, Fuel ReceiverFUEL RECEIVER [08.1987 - 05.1995] LH80,YH81..EUR,GEN |
83243-95B01 |
US $39.17 |
||
|
83310
|
83310
83243-95B03 Gage Assy, Fuel ReceiverFUEL RECEIVER [08.1987 - 10.1989] LH80..EUR;YH81..EUR,GEN W(TACHOMETER) |
83243-95B03 |
US $39.02 |
||
|
83310
|
83310
83243-95M01 Gage Assy, Fuel ReceiverFUEL RECEIVER [10.1989 - 09.1993] LH80..EUR;YH81..GEN W(TACHOMETER) |
83243-95M01 |
US $78.62 |
||
|
83410
|
83410
83244-95B01 Gage Assy, Water Temperature ReceiverWATER TEMPERATURE RECEIVER [08.1987 - 10.1989] LH80,YH81..EUR,GEN |
83244-95B01 |
US $39.02 |
||
|
83410
|
83410
83244-95M01 Gage Assy, Water Temperature ReceiverWATER TEMPERATURE RECEIVER [10.1989 - 05.1995] LH80,YH81..EUR,GEN |
83244-95M01 |
US $39.02 |
||
|
83910
|
83910
83910-37030 Clock Assy[09.1993 - 05.1995] LH80,YH81 |
83910-37030 |
US $422.24 |
||
|
83910
|
83910
83910-95403 Clock Assy[08.1987 - 09.1993] LH80,YH81 |
83910-95403 |
US $409.14 |
||
|
831611A020
|
831611A020
83161-1A020 Case, Combination Meter Mirror, No.1 |
83161-1A020 |
US $1.75 |
||
|
8316120180
|
8316120180
83161-20180 Case, Combination Meter Mirror, No.1 |
83161-20180 |
US $2.08 |
||
|
8316120300
|
8316120300
83161-20300 Case, Combination Meter Mirror, No.1 |
83161-20300 |
US $1.75 |
||
|
8316120380
|
8316120380
83161-20380 Case, Combination Meter Mirror, No.1 |
83161-20380 |
US $1.14 |
||
|
8316120440
|
8316120440
83161-20440
Case, Combination Meter Mirror, No.1
|
83161-20440 |
— | ||
|
8316520120
|
8316520120
83165-20120
Mirror, Combination Meter, No.2
|
83165-20120 |
— | ||
|
9015950174
|
9015950174
90159-50174 New Genuine Part |
90159-50174 |
US $1.60 |
||
| replacement | |||||
|
9015950174
|
9015950174
93313-15016 New Genuine Part |
93313-15016 |
US $0.73 |
||
|
9018305103
|
9018305103
90183-05103 NUT |
90183-05103 |
US $1.44 |
||
|
9356615516
|
9356615516
93566-15516 New Genuine Part |
93566-15516 |
US $1.60 |
||
| replacement | |||||
|
9356615516
|
9356615516
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
|
9411540400
|
9411540400
94115-40400
NUT
|
94115-40400 |
— | ||
| replacement | |||||
|
9411540400
|
9411540400
90076-01001 NUT |
90076-01001 |
US $2.08 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.20 |
||
