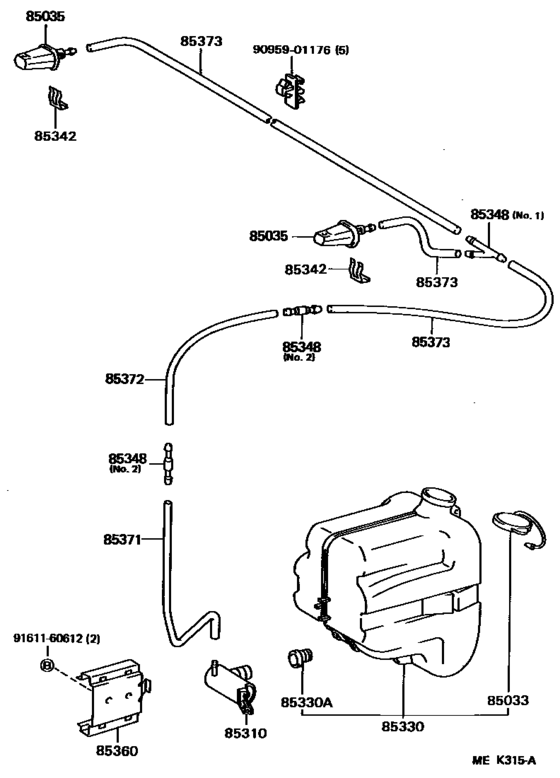

Windshield Washer ([08.1987 - ] (8708- )) Diagram Toyota DYNA 100
- Year
- 1987 - 1995
- Sales region
- Europe
- Frame
- LH80
- body
- T3
- ENGINE
- 2L
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- DYNA 100
- From
- 08.1987
- To
- 05.1995
- Gear Shift Type
- 5F
- Vehicle Model
- Dyna 100
- Driver's Position
- LHD
- Building Condition
- IV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85033
|
85033
85033-36120 Cap Assy, Windshield Washer[08.1987 - 05.1995] LH80,YH81 |
85033-36120 |
US $0.55 |
||
|
85035
|
85035
85035-95A08
Nozzle Sub-Assy, Washer
[08.1987 - 05.1995] LH80,YH81..EUR |
85035-95A08 |
— | ||
|
85310
|
85310
85310-22080 Motor And Pump Assy, Windshield Washer[08.1987 - 05.1995] LH80,YH81 |
85310-22080 |
from US $49.97 |
||
|
85330
|
85330
85330-25040
Jar Assy, Windshield Washer
[08.1987 - 05.1995] LH80,YH81 |
85330-25040 |
— | ||
|
85330A
|
85330A
90099-32089 Bush, Headlamp Cleaner Washer Jar[08.1987 - 05.1995] LH80,YH81 |
90099-32089 |
from US $0.98 |
||
| replacements | |||||
|
85330A
|
85330A
90099320891
Grommet
[08.1987 - 05.1995] LH80,YH81 |
90099320891 |
— | ||
|
85330A
|
85330A
90068-32002 Bush, Windshield Washer Jar[08.1987 - 05.1995] LH80,YH81 |
90068-32002 |
US $7.46 |
||
|
85342
|
85342
85342-95J01 Holder, Washer Nozzle[08.1987 - 05.1995] LH80,YH81 |
85342-95J01 |
US $7.04 |
||
|
85348
|
85348
85348-12250 Joint, Windshield Washer Hose, No.1[08.1987 - 05.1995] LH80,YH81 NO.1 |
85348-12250 |
from US $0.55 |
||
|
85348
|
85348
85349-89122 Valve Sub-Assy, Washer[08.1987 - 05.1995] LH80,YH81 NO.2 |
85349-89122 |
from US $1.25 |
||
|
85360
|
85360
85361-95400 Bracket Assy, Windshield Washer[08.1987 - 05.1995] LH80,YH81 |
85361-95400 |
US $8.88 |
||
| replacement | |||||
|
85360
|
85360
85361-95A02
Bracket Assy, Windshield Washer
[08.1987 - 05.1995] LH80,YH81 |
85361-95A02 |
— | ||
|
85371
|
85371
90446-06013 Hose, Windshield Washer (From Motor To Joint)[08.1987 - 05.1995] LH80,YH81 L=450 |
90446-06013 |
from US $0.70 |
||
|
85372
|
85372
90099-33142
Hose, Windshield Washer (From Joint To Joint), No.1
[08.1987 - 05.1995] LH80,YH81 L=130 |
90099-33142 |
— | ||
| replacement | |||||
|
85372
|
85372
90099-33418
Hose, Windshield Washer (From Joint To Joint), No.1
[08.1987 - 05.1995] LH80,YH81 L=130 |
90099-33418 |
— | ||
|
85373
|
85373
90446-06013 Hose, Windshield Washer (From Motor To Joint)[08.1987 - 05.1995] LH80,YH81 L=450 |
90446-06013 |
from US $0.70 |
||
|
9095901176
|
9095901176
90959-01176
New Genuine Part
|
90959-01176 |
— | ||
|
9161160612
|
9161160612
91611-60612
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-60612 |
— | ||
| replacement | |||||
|
9161160612
|
9161160612
91611-G0612 Bolt |
91611-G0612 |
from US $0.82 |
||
