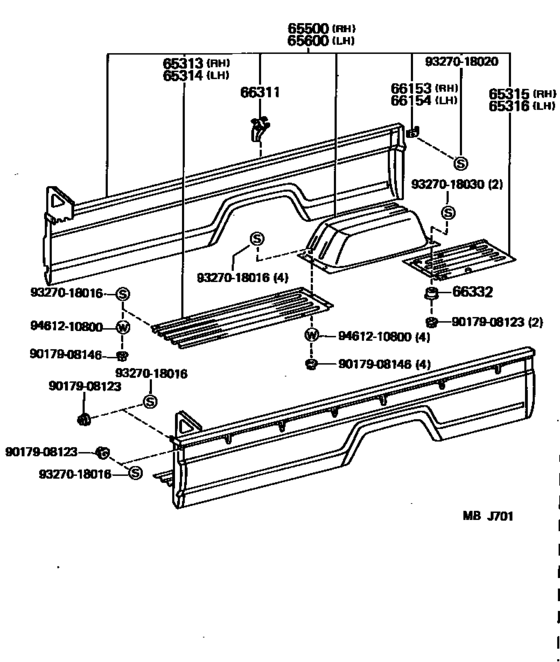

Rear Body Side Panel ([08.1985 - ] (8508- )TW) Diagram Toyota DYNA 100
- Year
- 1985 - 1987
- Sales region
- General
- Frame
- LH80
- body
- TW
- ENGINE
- 2L
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- DYNA 100
- From
- 08.1985
- To
- 08.1987
- Gear Shift Type
- 5F
- Vehicle Model
- Dyna 100
- Driver's Position
- LHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
65313
|
65313
65313-95A05 Panel, Floor Front Corner, Rh[08.1985 - 08.1987] LH80,YH8#..TW |
65313-95A05 |
US $63.48 |
||
|
65314
|
65314
65314-95A03 Panel, Floor Front Corner, Lh[08.1985 - 08.1987] LH80,YH8#..TW |
65314-95A03 |
US $63.48 |
||
|
65315
|
65315
65315-95405 Panel, Floor Rear Corner, Rh[08.1985 - 08.1987] LH80,YH8#..TW |
65315-95405 |
US $117.94 |
||
| replacement | |||||
|
65315
|
65315
65315-25010 Panel, Floor Rear Corner, Rh[08.1985 - 08.1987] LH80,YH8#..TW |
65315-25010 |
US $100.46 |
||
|
65316
|
65316
65316-95405 Panel, Floor Rear Corner, Lh[08.1985 - 08.1987] LH80,YH8#..TW |
65316-95405 |
US $117.94 |
||
| replacement | |||||
|
65316
|
65316
65316-25010 Panel, Floor Rear Corner, Lh[08.1985 - 08.1987] LH80,YH8#..TW |
65316-25010 |
US $100.46 |
||
|
65500
|
65500
65500-95A09 Panel Assy, Rear Body Side, Rh[08.1985 - 08.1987] LH80,YH8#..TW |
65500-95A09 |
US $1,295.84 |
||
|
65600
|
65600
65600-95A08 Panel Assy, Rear Body Side, Lh[08.1985 - 08.1987] LH80,YH8#..TW |
65600-95A08 |
US $1,295.84 |
||
|
66153
|
66153
66153-95012 Latch, Tail Gate Female, Rh[08.1985 - 08.1987] LH80,YH8#..TW |
66153-95012 |
US $5.94 |
||
|
66154
|
66154
66153-95012 Latch, Tail Gate Female, Rh[08.1985 - 08.1987] LH80,YH8#..TW |
66153-95012 |
US $5.94 |
||
|
66311
|
66311
66311-95010 Hook, Rope[08.1985 - 08.1987] LH80,YH8#..TW |
66311-95010 |
US $11.07 |
||
| replacement | |||||
|
66311
|
66311
66311-90K00 Hook, Rope[08.1985 - 08.1987] LH80,YH8#..TW |
66311-90K00 |
US $7.16 |
||
|
66332
|
66332
66332-95A00 Cushion, Rubber[08.1985 - 08.1987] LH80,YH8#..TW |
66332-95A00 |
US $2.77 |
||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $0.84 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9327018016
|
9327018016
93270-18016
SCREW
|
93270-18016 |
— | ||
| replacement | |||||
|
9327018016
|
9327018016
93240-18016 SCREW |
93240-18016 |
US $1.22 |
||
|
9327018020
|
9327018020
93270-18020
New Genuine Part
|
93270-18020 |
— | ||
|
9327018030
|
9327018030
93270-18030
New Genuine Part
|
93270-18030 |
— | ||
|
9461210800
|
9461210800
94612-10800 Washer, Plate(For Repair Actuator Set) |
94612-10800 |
from US $0.86 |
||
