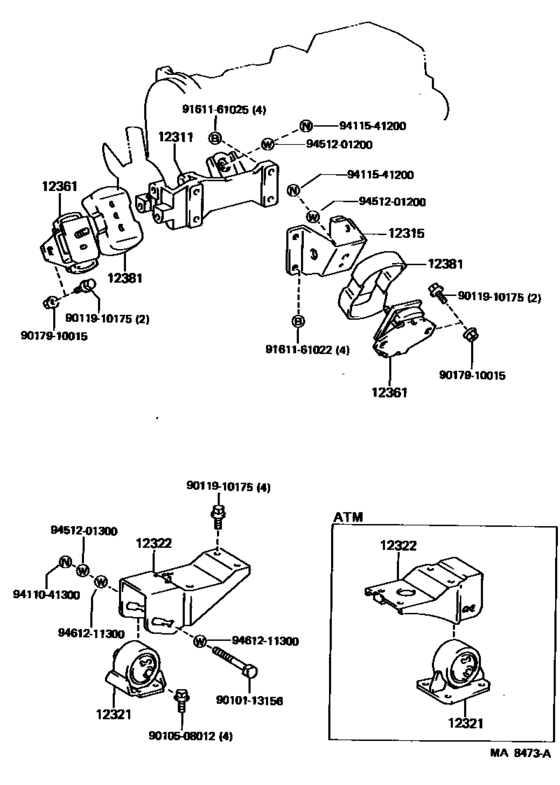

Mounting ([08.1985 - ] (8508- )2L) Diagram Toyota DYNA 100
- Year
- 1985 - 1987
- Sales region
- Europe
- Frame
- LH80
- body
- T3
- ENGINE
- 2L
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- DYNA 100
- From
- 08.1985
- To
- 08.1987
- Gear Shift Type
- 5F
- Vehicle Model
- Dyna 100
- Driver's Position
- RHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12311
|
12311
12311-54090
Bracket, Engine Mounting, Front No.1 Rh
[08.1985 - 08.1987] 2L..LH80 |
12311-54090 |
— | ||
| replacement | |||||
|
12311
|
12311
12311-54091 Bracket, Engine Mounting, Front No.1 Rh[08.1985 - 08.1987] 2L..LH80 |
12311-54091 |
US $110.66 |
||
|
12315
|
12315
12312-54020
Bracket, Engine Mounting, Front No.1 Lh
[08.1985 - 08.1986] 2L..LH80..EUR,GEN |
12312-54020 |
— | ||
| replacement | |||||
|
12315
|
12315
12312-54021 Bracket, Engine Mounting, Front No.2[08.1985 - 08.1986] 2L..LH80..EUR,GEN |
12312-54021 |
US $25.51 |
||
|
12315
|
12315
12312-54021 Bracket, Engine Mounting, Front No.2[08.1986 - 08.1987] 2L..LH80..EUR,GEN |
12312-54021 |
US $25.51 |
||
|
12321
|
12321
12303-54020
Bracket, Engine Mounting, Rear, No.1
[01.1987 - 08.1987] 1Y,2Y..YH8#; 2L..LH80..5F |
12303-54020 |
— | ||
| replacement | |||||
|
12321
|
12321
12303-67021 Bracket Sub-Assy, Engine Mounting, Rear[01.1987 - 08.1987] 1Y,2Y..YH8#; 2L..LH80..5F |
12303-67021 |
from US $51.61 |
||
|
12321
|
12321
12303-72010 Bracket, Engine Mounting, Rear, No.1[08.1985 - 01.1987] 1Y,2Y..YH8#; 2L..LH80..5F |
12303-72010 |
US $89.51 |
||
|
12322
|
12322
12322-54050 Bracket, Engine Mounting, Rear No.2[08.1985 - 08.1987] 1Y,2Y..YH8#; 2L..LH80..5F |
12322-54050 |
US $44.84 |
||
|
12361
|
12361
12361-54120
Insulator, Engine Mounting, Front
[08.1985 - 08.1987] 2L..LH80 |
12361-54120 |
— | ||
| replacement | |||||
|
12361
|
12361
12361-54121 Insulator, Engine Mounting, Front[08.1985 - 08.1987] 2L..LH80 |
12361-54121 |
from US $53.76 |
||
|
12381
|
12381
12381-54020 Stabilizer, Engine Mounting[08.1985 - 10.1985] 2L..LH80 |
12381-54020 |
US $17.47 |
||
|
12381
|
12381
12381-54040 Stabilizer, Engine Mounting[10.1985 - 08.1987] 2L..LH80 |
12381-54040 |
from US $14.50 |
||
|
9010113156
|
9010113156
90101-13156
New Genuine Part
|
90101-13156 |
— | ||
| replacement | |||||
|
9010113156
|
9010113156
90101-13003 BOLTHEXAGON |
90101-13003 |
US $8.64 |
||
|
9010508012
|
9010508012
90105-08012
New Genuine Part
|
90105-08012 |
— | ||
|
9011910175
|
9011910175
90119-10175
New Genuine Part
|
90119-10175 |
— | ||
| replacement | |||||
|
9011910175
|
9011910175
91651-61028 New Genuine Part |
91651-61028 |
US $1.46 |
||
|
9017910015
|
9017910015
90179-10015 NUT |
90179-10015 |
from US $1.09 |
||
|
9161161022
|
9161161022
91611-61022
Bolt (For Transmission Control Cable Bracket)
|
91611-61022 |
— | ||
| replacement | |||||
|
9161161022
|
9161161022
91612-61022 Bolt (For Transmission Control Cable Bracket) |
91612-61022 |
US $2.08 |
||
|
9161161025
|
9161161025
91611-61025
Bolt(For Transaxle & Engine Setting)
|
91611-61025 |
— | ||
| replacement | |||||
|
9161161025
|
9161161025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $1.13 |
||
|
9411041300
|
9411041300
94110-41300 NUT |
94110-41300 |
from US $2.72 |
||
|
9411541200
|
9411541200
94115-41200
Nut
|
94115-41200 |
— | ||
| replacement | |||||
|
9411541200
|
9411541200
94130-61200 Nut |
94130-61200 |
from US $1.03 |
||
|
9451201200
|
9451201200
94512-01200 Washer |
94512-01200 |
from US $0.76 |
||
|
9451201300
|
9451201300
94512-01300 Washer(For Rear Spring U Bolt) |
94512-01300 |
from US $0.60 |
||
|
9461211300
|
9461211300
94612-11300 Washer(For Outer Lever Oil Setting) |
94612-11300 |
from US $0.70 |
||
