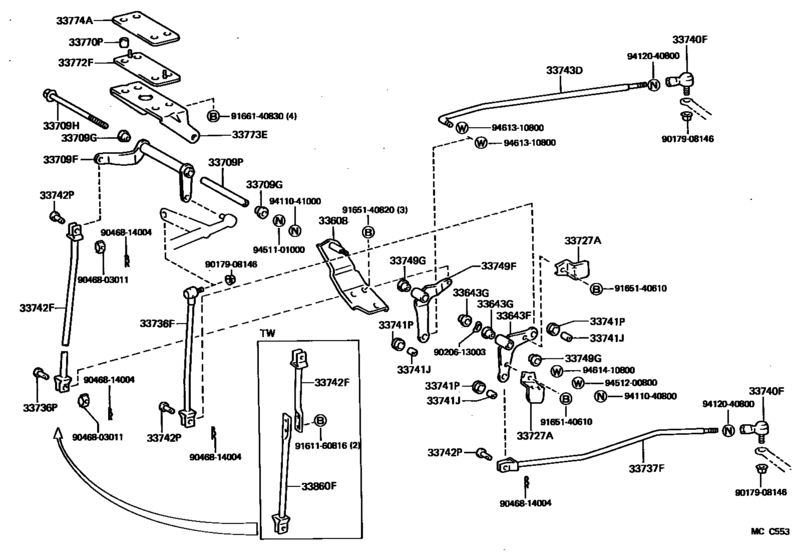

Shift Lever & Retainer ([08.1985 - ] (8508- )RHD..5F) Diagram Toyota DYNA 100
- Year
- 1985 - 1987
- Sales region
- Europe
- Frame
- LH80
- body
- T3
- ENGINE
- 2L
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- DYNA 100
- From
- 08.1985
- To
- 08.1987
- Gear Shift Type
- 5F
- Vehicle Model
- Dyna 100
- Driver's Position
- RHD
- Building Condition
- IV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33608
|
33608
33607-26220 Support Sub-Assy, Control Rod (For Column Shift)[08.1985 - 08.1987] LH80,YH8#..5F |
33607-26220 |
US $54.89 |
||
|
33643F
|
33643F
33643-25020 Lever, Gear Selecting, No.3[08.1985 - 08.1987] LH80,YH8#..5F |
33643-25020 |
US $28.97 |
||
|
33643G
|
33643G
90386-13192 Bush(For Over Center Plate)[08.1985 - 08.1987] LH80,YH8#..5F |
90386-13192 |
from US $1.74 |
||
|
33709F
|
33709F
33709-25140 Shaft Sub-Assy, Cross, No.1 (For Floor Shift)[08.1985 - 08.1987] LH80,YH8#..RHD..5F |
33709-25140 |
US $54.75 |
||
| replacements | |||||
|
33709F
|
33709F
33709-25141 Shaft Sub-Assy, Cross, No.1 (For Floor Shift)[08.1985 - 08.1987] LH80,YH8#..RHD..5F |
33709-25141 |
US $57.08 |
||
|
33709F
|
33709F
90386-13020 Bush(For Clutch Pedal)[08.1985 - 08.1987] LH80,YH8#..RHD..5F |
90386-13020 |
from US $1.85 |
||
|
33709G
|
33709G
90386-13007 Bush(For Clutch Pedal)[08.1985 - 08.1987] LH80,YH8#..RHD..5F |
90386-13007 |
from US $2.56 |
||
|
33709H
|
33709H
90105-10103 Bolt, Hexagon[08.1985 - 08.1987] LH80,YH8#..RHD..5F |
90105-10103 |
from US $2.42 |
||
|
33709P
|
33709P
90387-10075 Collar (For Cross Shaft)[08.1985 - 08.1987] LH80,YH8#..RHD..5F |
90387-10075 |
US $4.02 |
||
|
33727A
|
33727A
33727-25020 Insulator, Connecting Rod Bush Heat[08.1985 - 08.1987] LH80..5F |
33727-25020 |
US $11.79 |
||
|
33736F
|
33736F
33790-25180 Rod, Gear Selecting, No.2(For Floor Shift)[08.1985 - 08.1987] LH80,YH8#..RHD..5F |
33790-25180 |
US $35.53 |
||
|
33736P
|
33736P
90240-08028 Pin, W/hole (For Column Shift Gear Selecting Rod)[08.1985 - 08.1987] LH80,YH8#..5F |
90240-08028 |
US $2.56 |
||
|
33737F
|
33737F
33701-25190 Rod, Gear Selecting, No.3 (For Column Shift)[08.1985 - 08.1987] LH80,YH8#..5F |
33701-25190 |
US $44.99 |
||
|
33740F
|
33740F
33740-26010 End Assy, Connecting Rod, No.1(For Column Shift)[08.1985 - 08.1987] LH80,YH8#..5F |
33740-26010 |
from US $13.44 |
||
|
33741J
|
33741J
90389-08005 Bushing(For Gear Selecting Rod)[08.1985 - 08.1987] LH80,YH8#..5F |
90389-08005 |
from US $1.76 |
||
|
33741P
|
33741P
90480-17177 Grommet (For Transmission Control Rod)[08.1985 - 08.1987] LH80,YH8#..5F |
90480-17177 |
from US $2.42 |
||
|
33742F
|
33742F
33742-25140 Rod, Gear Shifting, No.2(For Floor Shift)[08.1985 - 08.1987] LH80,YH8#..5F..T3 |
33742-25140 |
US $16.60 |
||
|
33742P
|
33742P
90240-08034 Pin, W/hole (For Gear Shifting Rod No.3)[08.1985 - 08.1987] LH80,YH8#..5F NO.2 |
90240-08034 |
US $2.80 |
||
|
33742P
|
33742P
90240-08042 Pin, W/hole(For Gear Selecting Rod No.2)[08.1985 - 08.1987] LH80,YH8#..5F NO.1 |
90240-08042 |
from US $1.89 |
||
|
33743D
|
33743D
33743-25130
Rod, Gear Shifting, No.3 (For Column Shift)
[08.1985 - 08.1987] LH80,YH8#..5F |
33743-25130 |
— | ||
|
33749F
|
33749F
33749-25020 Lever, Gear Shift, No.3 (For Floor Shift)[08.1985 - 08.1987] LH80,YH8#..5F |
33749-25020 |
US $29.99 |
||
|
33749G
|
33749G
90386-13192 Bush(For Over Center Plate)[08.1985 - 08.1987] LH80,YH8#..5F |
90386-13192 |
from US $1.74 |
||
|
33770P
|
33770P
90387-09021 Coller (For Cross Shaft)[08.1985 - 08.1987] LH80,YH8#..5F |
90387-09021 |
US $3.20 |
||
|
33772F
|
33772F
33772-25010
Bush, Cross Shaft Support, No.1 (For Floor Shift)
[08.1985 - 08.1987] LH80,YH8#..5F |
33772-25010 |
— | ||
|
33773E
|
33773E
33773-25020 Support, Cross Shaft, No.1[08.1985 - 08.1987] LH80,YH8#..RHD..5F |
33773-25020 |
US $38.88 |
||
|
33774A
|
33774A
33774-25010 Support, Cross Shaft, No.2[08.1985 - 08.1987] LH80,YH8#..5F |
33774-25010 |
US $18.05 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9020613003
|
9020613003
90206-13003 Washer, Wave (For Power Take-Off Shift Lever) |
90206-13003 |
US $1.60 |
||
|
9046803011
|
9046803011
90468-03011
CLIP
|
90468-03011 |
— | ||
|
9046814004
|
9046814004
90468-14004 Union, Auxiliary Fuel Band |
90468-14004 |
from US $0.72 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.56 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $1.06 |
||
|
9166140830
|
9166140830
91661-40830
New Genuine Part
|
91661-40830 |
— | ||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.09 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.56 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.44 |
||
|
9451101000
|
9451101000
94511-01000 Washer(For Rear Drive Shaft) |
94511-01000 |
US $1.76 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.80 |
||
|
9461310800
|
9461310800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.68 |
||
|
9461410800
|
9461410800
94614-10800
Spacer (For Control Select Lever Support)
|
94614-10800 |
— | ||
| replacement | |||||
|
9461410800
|
9461410800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.68 |
||
