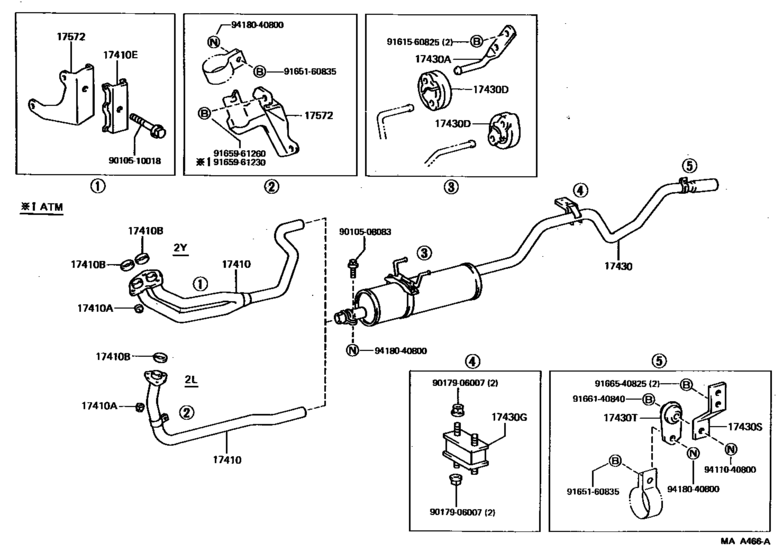

Exhaust Pipe ([08.1987 - 08.1988] (8708-8808) ; (8808- )2Y) Diagram Toyota DYNA 100
- Year
- 1987 - 1995
- Sales region
- General
- Frame
- LH80
- body
- T3
- ENGINE
- 2L
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- DYNA 100
- From
- 08.1987
- To
- 05.1995
- Gear Shift Type
- 5F
- Vehicle Model
- Dyna 100
- Driver's Position
- RHD
- Building Condition
- IV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-54601 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [08.1987 - 08.1988] 2L..LH80 |
17410-54601 |
US $170.35 |
||
|
17410
|
17410
17410-54602
Pipe Assy, Exhaust, Front
[08.1988 - 10.1989] 2L..LH80 |
17410-54602 |
— | ||
| replacement | |||||
|
17410
|
17410
17410-5B200 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [08.1988 - 10.1989] 2L..LH80 |
17410-5B200 |
US $262.08 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[08.1987 - 05.1995] 2L,2Y..LH80,YH81 |
90179-10070 |
from US $1.54 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[08.1987 - 05.1995] 2L,2Y..LH80,YH81 |
90080-17187 |
US $33.80 |
||
|
17410B
|
17410B
90917-06004
Gasket(For Manifold Extension)
[08.1987 - 08.1988] 2L..LH80 |
90917-06004 |
— | ||
| replacement | |||||
|
17410B
|
17410B
90917-06039 Gasket, Exhaust Pipe[08.1987 - 08.1988] 2L..LH80 |
90917-06039 |
from US $2.36 |
||
|
17410B
|
17410B
90917-06042 Gasket, Exhaust Pipe[08.1988 - 02.1994] 2L..LH80 |
90917-06042 |
from US $5.05 |
||
|
17410B
|
17410B
90917-06066 Gasket, Exhaust Pipe[02.1994 - 05.1995] 2L..LH80 |
90917-06066 |
from US $5.05 |
||
|
17430
|
17430
17430-5B180
Pipe Assy, Exhaust, Tail
[08.1988 - 04.1989] 2L..LH80..EUR,GEN |
17430-5B180 |
— | ||
| replacement | |||||
|
17430
|
17430
17430-5B182 Pipe Assy, Exhaust, Tail[08.1988 - 04.1989] 2L..LH80..EUR,GEN |
17430-5B182 |
US $465.92 |
||
|
17430
|
17430
17430-5B181 Pipe Assy, Exhaust, TailEXHAUST, TAIL [04.1989 - 10.1989] 2L..LH80..EUR,GEN |
17430-5B181 |
US $465.92 |
||
| replacement | |||||
|
17430
|
17430
17430-5B182 Pipe Assy, Exhaust, Tail[04.1989 - 10.1989] 2L..LH80..EUR,GEN |
17430-5B182 |
US $465.92 |
||
|
17430
|
17430
17430-71261 Pipe Assy, Exhaust, TailEXHAUST, TAIL [08.1987 - 08.1988] 2L,2Y..LH80,YH81 |
17430-71261 |
US $299.94 |
||
| replacement | |||||
|
17430
|
17430
17430-71262
Pipe Assy, Exhaust, Tail
[08.1987 - 08.1988] 2L,2Y..LH80,YH81 |
17430-71262 |
— | ||
|
17430A
|
17430A
17575-71050 Bracket, Exhaust Tail Pipe(For Front)[08.1987 - 05.1995] 2L,2Y..LH80,YH81 |
17575-71050 |
US $15.52 |
||
|
17430D
|
17430D
17565-63030 Bracket, Catalytic Converter Support[08.1987 - 05.1995] 2L,2Y..LH80,YH81 |
17565-63030 |
US $13.44 |
||
|
17430G
|
17430G
17567-61010 Cushion, Exhaust Tail Pipe(For Center)[08.1987 - 05.1995] 2L,2Y..LH80,YH81 |
17567-61010 |
US $22.34 |
||
|
17430S
|
17430S
17574-54040 Bracket, Exhaust Tail Pipe (For Rear)[08.1987 - 05.1995] 2L,2Y..LH80,YH81 |
17574-54040 |
US $17.18 |
||
|
17430T
|
17430T
90917-08009 Cushion, Exhaust Tail Pipe (For Rear)[08.1987 - 05.1995] 2L,2Y..LH80,YH81 |
90917-08009 |
from US $9.72 |
||
|
17572
|
17572
17571-54141
Bracket, Exhaust Pipe Front (For Front)
[08.1987 - 08.1988] 2L..LH80..5F |
17571-54141 |
— | ||
|
17572
|
17572
17571-54270 Bracket, Exhaust Pipe Front (For Front)[08.1988 - 05.1995] 2L..LH80 |
17571-54270 |
US $20.68 |
||
|
9010508083
|
9010508083
90105-08083 New Genuine Part |
90105-08083 |
US $2.62 |
||
| replacement | |||||
|
9010508083
|
9010508083
90105-08176 BOLT |
90105-08176 |
US $2.56 |
||
|
9010510018
|
9010510018
90105-10018 Bolt Or Ring, Exhaust Pipe Front (For Front) |
90105-10018 |
US $3.93 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.86 |
||
|
9161560825
|
9161560825
91615-60825
Bolt(For Intake Manifold To Exhaust Manifold)
|
91615-60825 |
— | ||
| replacement | |||||
|
9161560825
|
9161560825
91611-60822 Bolt |
91611-60822 |
from US $2.48 |
||
|
9165160835
|
9165160835
91651-60835 Bolt(For Front Suspension Control Accumulator) |
91651-60835 |
from US $1.44 |
||
|
9165961230
|
9165961230
91659-61230
New Genuine Part
|
91659-61230 |
— | ||
| replacement | |||||
|
9165961230
|
9165961230
90119-12297 New Genuine Part |
90119-12297 |
US $4.32 |
||
|
9165961260
|
9165961260
91659-61260 Bolt(For Transaxle & Engine Setting) |
91659-61260 |
US $3.64 |
||
|
9166140840
|
9166140840
91661-40840 New Genuine Part |
91661-40840 |
US $2.04 |
||
|
9166540825
|
9166540825
91665-40825
New Genuine Part
|
91665-40825 |
— | ||
| replacement | |||||
|
9166540825
|
9166540825
91661-60825 New Genuine Part |
91661-60825 |
US $2.40 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.03 |
||
|
9418040800
|
9418040800
94180-40800 NUT |
94180-40800 |
US $2.40 |
||
