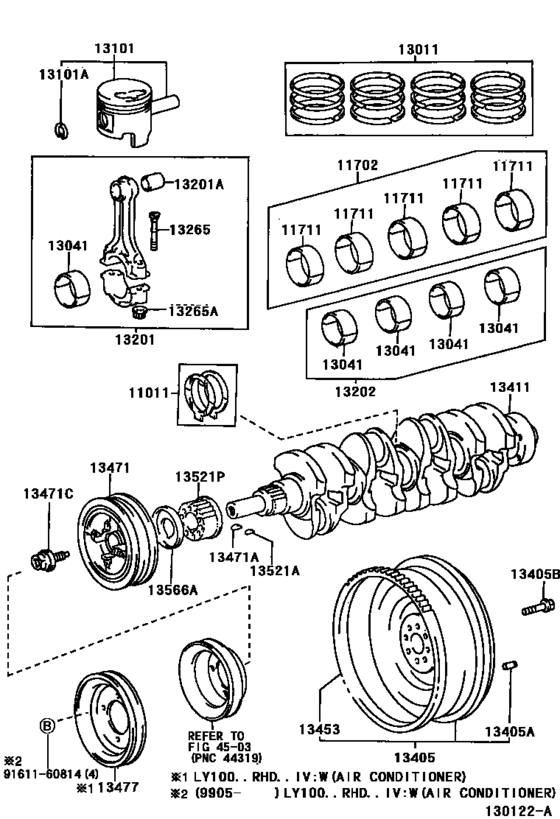

Crankshaft & Piston ([05.1995 - ] (9505- )2L) Diagram Toyota DYNA 100
- Year
- 1995 - 2001
- Sales region
- General
- Frame
- LY100
- ENGINE
- 2L
- DESTINATION
- EUR
- Model
- DYNA 100
- From
- 05.1995
- To
- 08.2001
- Vehicle Model
- Dyna 100
- Deck,cab
- TW2
- Driver's Position
- LHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-54020 Washer Set, Crankshaft Thrust[05.1995 -] 2L..LY100 STD |
11011-54020 |
from US $17.02 |
||
|
11011
|
11011
11012-54020 Washer Set, Crankshaft Thrust[05.1995 -] 2L..LY100 O/S 0.125 |
11012-54020 |
US $17.30 |
||
|
11011
|
11011
11013-54020 Washer Set, Crankshaft Thrust[05.1995 -] 2L..LY100 O/S 0.250 |
11013-54020 |
US $17.30 |
||
|
11702
|
11702
11704-54061
Bearing Set, Crankshaft
[05.1995 -] 2L..LY100 U/S 0.25 |
11704-54061 |
— | ||
| replacement | |||||
|
11702
|
11702
11704-54081 Bearing Set, Crankshaft (0.25)[05.1995 -] 2L..LY100 U/S 0.25 |
11704-54081 |
from US $112.24 |
||
|
11702
|
11702
11705-54061
Bearing Set, Crankshaft
[05.1995 -] 2L..LY100 U/S 0.50 |
11705-54061 |
— | ||
| replacement | |||||
|
11702
|
11702
11705-54081 Bearing Set, Crankshaft (0.50)[05.1995 -] 2L..LY100 U/S 0.50 |
11705-54081 |
from US $127.59 |
||
|
11711
|
11711
11701-54061-01
Bearing, Crankshaft
[05.1995 -] 2L..LY100 MARK 1 |
11701-54061-01 |
— | ||
| replacements | |||||
|
11711
|
11711
11701-54081-01 Bearing, CrankshaftCRANKSHAFT [05.1995 -] 2L..LY100 MARK 1 |
11701-54081-01 |
from US $18.92 |
||
|
11711
|
11711
11701-51081-01
Bearing, Crankshaft
[05.1995 -] 2L..LY100 MARK 1 |
11701-51081-01 |
— | ||
|
11711
|
11711
11701-54061-02
Bearing, Crankshaft
[05.1995 -] 2L..LY100 MARK 2 |
11701-54061-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-54081-02 Bearing, CrankshaftCRANKSHAFT [05.1995 -] 2L..LY100 MARK 2 |
11701-54081-02 |
from US $18.84 |
||
|
11711
|
11711
11701-54061-03
Bearing, Crankshaft
[05.1995 -] 2L..LY100 MARK 3 |
11701-54061-03 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-54081-03 Bearing, CrankshaftCRANKSHAFT [05.1995 -] 2L..LY100 MARK 3 |
11701-54081-03 |
from US $21.14 |
||
|
13011
|
13011
13011-54100 Ring Set, Piston[05.1995 -] 2L..LY100 STD |
13011-54100 |
from US $220.88 |
||
|
13011
|
13011
13013-54100 Ring Set, Piston[05.1995 -] 2L..LY100 O/S 0.50 |
13013-54100 |
from US $257.42 |
||
|
13011
|
13011
13014-54100 Ring Set, Piston[05.1995 -] 2L..LY100 O/S 0.75 |
13014-54100 |
from US $219.96 |
||
|
13011
|
13011
13015-54100 Ring Set, Piston[05.1995 -] 2L..LY100 O/S 1.00 |
13015-54100 |
US $363.42 |
||
|
13041
|
13041
13041-54024-01 Bearing, Connecting Rod[05.1995 -] 2L..LY100 MARK 1 |
13041-54024-01 |
US $34.80 |
||
|
13041
|
13041
13041-54024-02 Bearing, Connecting Rod[05.1995 -] 2L..LY100 MARK 2 |
13041-54024-02 |
from US $17 |
||
|
13041
|
13041
13041-54024-03 Bearing, Connecting Rod[05.1995 -] 2L..LY100 MARK 3 |
13041-54024-03 |
US $33.90 |
||
|
13101
|
13101
13101-54070-01 Piston Sub-Assy, W/pin[05.1995 - 05.1998] 2L..LY100 STD,MARK 1 |
13101-54070-01 |
from US $148.90 |
||
|
13101
|
13101
13101-54070-02 Piston Sub-Assy, W/pin[05.1995 - 05.1998] 2L..LY100 STD,MARK 2 |
13101-54070-02 |
from US $164.11 |
||
|
13101
|
13101
13101-54070-03 Piston Sub-Assy, W/pin[05.1995 - 05.1998] 2L..LY100 STD,MARK 3 |
13101-54070-03 |
US $321.78 |
||
|
13101
|
13101
13101-54130-01 Piston Sub-Assy, W/pinW/PIN [05.1998 -] 2L..LY100..EUR STD,MARK 1 |
13101-54130-01 |
US $154.34 |
||
|
13101
|
13101
13101-54130-02 Piston Sub-Assy, W/pinW/PIN [05.1998 -] 2L..LY100..EUR STD,MARK 2 |
13101-54130-02 |
US $154.34 |
||
|
13101
|
13101
13101-54130-03 Piston Sub-Assy, W/pinW/PIN [05.1998 -] 2L..LY100..EUR STD,MARK 3 |
13101-54130-03 |
US $154.34 |
||
|
13101
|
13101
13103-54070 Piston Sub-Assy, W/pin[05.1995 - 05.1998] 2L..LY100 O/S 0.50 |
13103-54070 |
from US $152.65 |
||
|
13101
|
13101
13104-54070 Piston Sub-Assy, W/pin[05.1995 - 05.1998] 2L..LY100 O/S 0.75 |
13104-54070 |
US $321.78 |
||
|
13101
|
13101
13105-54070 Piston Sub-Assy, W/pin[05.1995 - 05.1998] 2L..LY100 O/S 1.00 |
13105-54070 |
from US $188.84 |
||
|
13101A
|
13101A
90521-29003 Ring, Hole Snap(For Piston Pin)[05.1995 -] 2L..LY100 |
90521-29003 |
US $2.04 |
||
|
13201
|
13201
13201-59095 Rod Sub-Assy, Connecting[05.1995 - 03.1998] 2L..LY100 |
13201-59095 |
US $232.96 |
||
| replacement | |||||
|
13201
|
13201
13201-59096 Rod Sub-Assy, ConnectingCONNECTING [05.1995 - 03.1998] 2L..LY100 |
13201-59096 |
US $228.59 |
||
|
13201
|
13201
13201-59096 Rod Sub-Assy, ConnectingCONNECTING [03.1998 - 05.1998] 2L..LY100 |
13201-59096 |
US $228.59 |
||
|
13201A
|
13201A
90999-73114 Bush(For Connecting Rod Small End)[05.1995 - 05.1998] 2L..LY100 |
90999-73114 |
US $15.72 |
||
|
13202
|
13202
13204-54024 Bearing Set, Connecting Rod[05.1995 -] 2L..LY100 U/S 0.25 |
13204-54024 |
from US $94.03 |
||
|
13202
|
13202
13205-54024
Bearing Set, Connecting Rod
[05.1995 -] 2L..LY100 U/S 0.50 |
13205-54024 |
— | ||
|
13265
|
13265
13265-54020
Bolt, Connecting Rod
[05.1995 - 03.1998] 2L..LY100 |
13265-54020 |
— | ||
| replacement | |||||
|
13265
|
13265
13265-54021 Bolt, Connecting Rod[05.1995 - 03.1998] 2L..LY100 |
13265-54021 |
from US $3.72 |
||
|
13265
|
13265
13265-54021 Bolt, Connecting Rod[03.1998 -] 2L..LY100 |
13265-54021 |
from US $3.72 |
||
|
13265A
|
13265A
90179-10123 Nut, Hexagon(For Connecting Rod Bolt)[05.1995 -] 2L..LY100 |
90179-10123 |
from US $1.92 |
||
|
13405
|
13405
13405-54060 Flywheel Sub-Assy[05.1995 -] 2L..LY100 |
13405-54060 |
US $429.81 |
||
|
13405A
|
13405A
90250-08054 Pin, Straight[05.1995 -] 2L..LY100 L=23,OD=8; 2Y..YY100 L=23,OD=8 |
90250-08054 |
from US $1.03 |
||
|
13405B
|
13405B
90105-12109 Bolt, Flywheel Setting[05.1995 -] 2L..LY100 |
90105-12109 |
US $4.16 |
||
|
13411
|
13411
13401-54040 Crankshaft[05.1995 -] 2L..LY100 |
13401-54040 |
US $1,834.56 |
||
|
13453
|
13453
13453-54010 Gear, Flywheel Ring[05.1995 -] 2L..LY100 |
13453-54010 |
US $129.29 |
||
|
13471
|
13471
13408-54080
Pulley, Crankshaft
[05.1995 - 08.1996] 2L..LY100 |
13408-54080 |
— | ||
| replacement | |||||
|
13471
|
13471
13408-54090 Pulley, Crankshaft[05.1995 - 08.1996] 2L..LY100 |
13408-54090 |
from US $139.12 |
||
|
13471
|
13471
13408-54090 Pulley, Crankshaft[08.1996 -] 2L..LY100 |
13408-54090 |
from US $139.12 |
||
|
13471A
|
13471A
95161-30622 Key, Crankshaft(For Crankshaft Pulley Set)[05.1995 -] 2L..LY100 |
95161-30622 |
from US $1.58 |
||
|
13471C
|
13471C
90901-19028 Bolt(For Crankshaft Pulley Set)[05.1995 -] 2L..LY100 |
90901-19028 |
from US $6.94 |
||
|
13521A
|
13521A
95161-30622 Key, Crankshaft(For Crankshaft Pulley Set)[05.1995 -] 2L..LY100 |
95161-30622 |
from US $1.58 |
||
|
13521P
|
13521P
13521-54030 Pulley, Crankshaft Timing[05.1995 -] 2L..LY100 |
13521-54030 |
from US $42.12 |
||
|
13566A
|
13566A
13566-54040 Guide, Timing Belt[05.1995 -] 2L..LY100 |
13566-54040 |
from US $3.90 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.80 |
||
