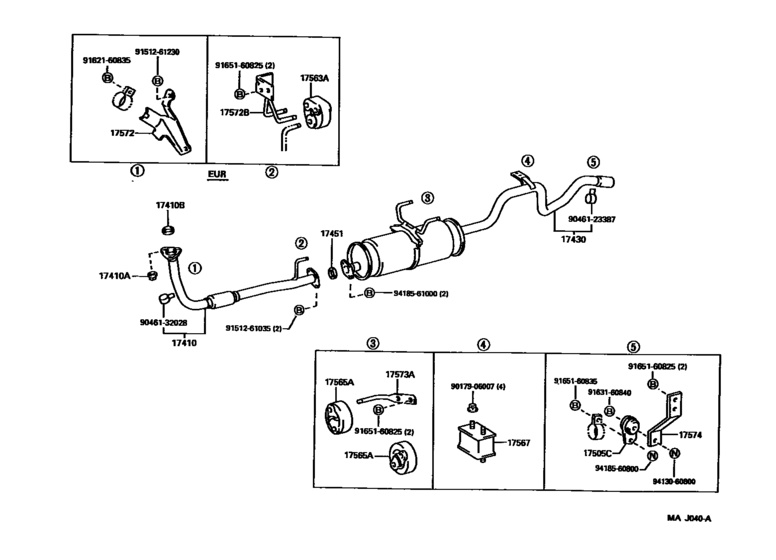

Exhaust Pipe ([05.1995 - ] (9505- )2L) Diagram Toyota DYNA 100
- Year
- 1995 - 2001
- Sales region
- General
- Frame
- LY100
- ENGINE
- 2L
- DESTINATION
- EUR
- Model
- DYNA 100
- From
- 05.1995
- To
- 08.2001
- Vehicle Model
- Dyna 100
- Deck,cab
- TW2
- Driver's Position
- LHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-5B140 Pipe Assy, Exhaust, Front[05.1995 - 05.1999] 2L..LY100..EUR |
17410-5B140 |
US $302.40 |
||
|
17410
|
17410
17410-5B390 Pipe Assy, Exhaust, Front[05.1999 -] 2L..LY100..EUR |
17410-5B390 |
US $291.20 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[05.1995 -] 2L,2Y..LY100,YY100 |
90179-10070 |
from US $1.92 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[05.1995 -] 2L,2Y..LY100,YY100 |
90080-17187 |
US $33.80 |
||
|
17410B
|
17410B
90917-06066 Gasket, Exhaust Pipe[05.1995 -] 2L..LY100 |
90917-06066 |
from US $5.05 |
||
|
17430
|
17430
17430-5B660 Pipe Assy, Exhaust, Tail[05.1995 - 03.2001] 2L..LY100..EUR |
17430-5B660 |
US $483.39 |
||
| replacement | |||||
|
17430
|
17430
17430-5B661 Pipe Assy, Exhaust, Tail[05.1995 - 03.2001] 2L..LY100..EUR |
17430-5B661 |
US $484.85 |
||
|
17430
|
17430
17430-5B661 Pipe Assy, Exhaust, Tail[03.2001 -] 2L..LY100..EUR |
17430-5B661 |
US $484.85 |
||
|
17451
|
17451
90917-06045 Gasket, Exhaust Pipe[05.1995 - 08.2001] 2L..LY100 |
90917-06045 |
from US $1.70 |
||
| replacement | |||||
|
17451
|
17451
90080-43028 Gasket, Exhaust Pipe[05.1995 - 08.2001] 2L..LY100 |
90080-43028 |
US $19.44 |
||
|
17505C
|
17505C
90917-08009 Cushion, Exhaust Tail Pipe (For Rear)[05.1995 -] 2L,2Y..LY100,YY100 |
90917-08009 |
from US $9.72 |
||
|
17563A
|
17563A
17565-54030
Bolt Or Ring, Exhaust Pipe Front (For Center)
[05.1995 -] 2L..LY100..EUR |
17565-54030 |
— | ||
|
17565A
|
17565A
17565-63030 Bracket, Catalytic Converter Support[05.1995 -] 2L,2Y..LY100,YY100 |
17565-63030 |
US $13.44 |
||
|
17567
|
17567
17567-61010 Cushion, Exhaust Tail Pipe(For Center)[05.1995 -] 2L,2Y..LY100,YY100 |
17567-61010 |
US $22.34 |
||
|
17572
|
17572
17571-54270 Bracket, Exhaust Pipe Front (For Front)[05.1995 -] 2L..LY100 |
17571-54270 |
US $20.68 |
||
|
17572B
|
17572B
17572-54200 Bracket, Exhaust Pipe Front (For Center)[05.1995 -] 2L..LY100..EUR |
17572-54200 |
US $16.89 |
||
|
17573A
|
17573A
17575-71050 Bracket, Exhaust Tail Pipe(For Front)[05.1995 -] 2L,2Y..LY100,YY100 |
17575-71050 |
US $15.52 |
||
|
17574
|
17574
17574-54060 Bracket, Exhaust Tail Pipe (For Rear)[05.1995 -] 2L,2Y..LY100,YY100 |
17574-54060 |
US $19.15 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.86 |
||
|
9046123387
|
9046123387
90461-23387 Clamp No.2, Exhaust Pipe Center, Front |
90461-23387 |
US $9.60 |
||
|
9046132028
|
9046132028
90461-32028
CLAMP
|
90461-32028 |
— | ||
|
9151261035
|
9151261035
91512-61035 Bolt(For Transaxle Case & Engine Setting) |
91512-61035 |
from US $1.21 |
||
| replacement | |||||
|
9151261035
|
9151261035
90080-10204 New Genuine Part |
90080-10204 |
US $2.97 |
||
|
9151261230
|
9151261230
91512-61230 BOLTFLANGE |
91512-61230 |
US $4.16 |
||
|
9162160835
|
9162160835
91621-60835
BOLT
|
91621-60835 |
— | ||
| replacement | |||||
|
9162160835
|
9162160835
91651-B0835 BOLT |
91651-B0835 |
US $1.60 |
||
|
9163160840
|
9163160840
91631-60840 New Genuine Part |
91631-60840 |
US $2.08 |
||
|
9165160825
|
9165160825
91651-60825
Bolt, Hexagon(For Steering Column Bracket)
|
91651-60825 |
— | ||
| replacement | |||||
|
9165160825
|
9165160825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.88 |
||
|
9165160835
|
9165160835
91651-60835 Bolt(For Front Suspension Control Accumulator) |
91651-60835 |
from US $1.44 |
||
|
9413060800
|
9413060800
94130-60800 Nut(For Clutch Pedal Stopper) |
94130-60800 |
from US $0.72 |
||
| replacement | |||||
|
9413060800
|
9413060800
90170-A0003 New Genuine Part |
90170-A0003 |
US $2.22 |
||
|
9418560800
|
9418560800
94185-60800 NUT |
94185-60800 |
from US $0.90 |
||
|
9418561000
|
9418561000
94185-61000 NUTLOCK |
94185-61000 |
from US $1.01 |
||
