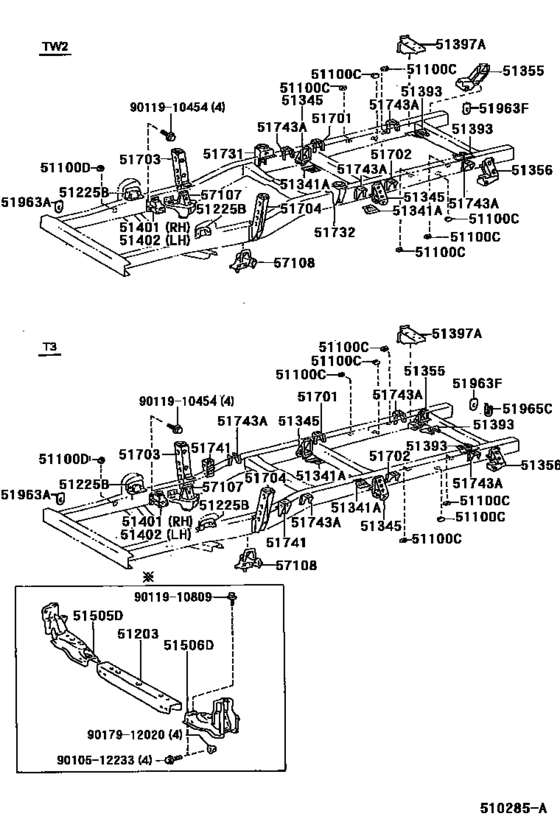

Frame ([05.1995 - ] (9505- )EUR) Diagram Toyota DYNA 100
- Year
- 1995 - 2001
- Sales region
- General
- Frame
- LY100
- ENGINE
- 2L
- DESTINATION
- EUR
- Model
- DYNA 100
- From
- 05.1995
- To
- 08.2001
- Vehicle Model
- Dyna 100
- Deck,cab
- TW2
- Driver's Position
- LHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51100C
|
51100C
90950-01395 Plug, Hole(For Frame)[05.1995 -] LY100,YY100 |
90950-01395 |
from US $2.16 |
||
|
51100D
|
51100D
90950-01420 Plug, Hole(For Frame)[05.1995 -] LY100,YY100 |
90950-01420 |
US $1.31 |
||
|
51203
|
51203
51203-26112 Crossmember Sub-Assy, Frame, No.2[05.1995 -] LY100 |
51203-26112 |
US $163.07 |
||
|
51225B
|
51225B
51225-26010 Bracket, Front Suspension Member, Rh[05.1995 -] LY100,YY100 |
51225-26010 |
US $39.60 |
||
|
51341A
|
51341A
51342-26012 Gusset, Crossmember, No.4 Lower[05.1995 -] LY100,YY100 |
51342-26012 |
US $24.61 |
||
|
51345
|
51345
51305-26020 Bracket, Rear Spring, Front[05.1995 -] LY100,YY100 RH |
51305-26020 |
US $149.97 |
||
|
51345
|
51345
51345-26020 Bracket, Rear Spring, Front[05.1995 -] LY100,YY100 LH |
51345-26020 |
US $149.97 |
||
|
51355
|
51355
51301-25010 Bracket, Rear Spring, Rear Rh[07.1995 -] LY100,YY100 |
51301-25010 |
US $113.57 |
||
|
51355
|
51355
51355-26010 Bracket, Rear Spring, Rear Rh[05.1995 - 07.1995] LY100,YY100 |
51355-26010 |
US $133.95 |
||
| replacement | |||||
|
51355
|
51355
51301-25010 Bracket, Rear Spring, Rear Rh[05.1995 - 07.1995] LY100,YY100 |
51301-25010 |
US $113.57 |
||
|
51356
|
51356
51302-25010 Bracket, Rear Spring, Rear Lh[07.1995 -] LY100,YY100 |
51302-25010 |
US $94.64 |
||
|
51356
|
51356
51356-26010 Bracket, Rear Spring, Rear Lh[05.1995 - 07.1995] LY100,YY100 |
51356-26010 |
US $133.95 |
||
| replacement | |||||
|
51356
|
51356
51302-25010 Bracket, Rear Spring, Rear Lh[05.1995 - 07.1995] LY100,YY100 |
51302-25010 |
US $94.64 |
||
|
51393
|
51393
51393-26010 Gusset, Frame Rear Crossmember, Rh[05.1995 -] LY100,YY100 |
51393-26010 |
US $21.69 |
||
|
51397A
|
51397A
51397-26010 Bracket, Exhaust Pipe Clamp, No.3[08.1997 -] LY100..LHD..EUR |
51397-26010 |
US $12.52 |
||
|
51401
|
51401
51401-26010 Bracket Sub-Assy, Engine Front Mounting, Rh[05.1995 -] LY100,YY100 |
51401-26010 |
US $75.71 |
||
|
51402
|
51402
51401-26010 Bracket Sub-Assy, Engine Front Mounting, Rh[05.1995 -] LY100,YY100 |
51401-26010 |
US $75.71 |
||
|
51505D
|
51505D
51505-26904 Support Sub-Assy, Upper Control Arm[05.1995 -] LY100,YY100 |
51505-26904 |
US $180.54 |
||
|
51506D
|
51506D
51506-26904 Support Sub-Assy, Upper Control Arm[05.1995 -] LY100,YY100 |
51506-26904 |
US $180.54 |
||
|
51701
|
51701
51711-26080 Bracket Sub-Assy, Cab Mounting, No.1 Rh[05.1995 -] LY100,YY100 |
51711-26080 |
US $27.66 |
||
|
51702
|
51702
51711-26080 Bracket Sub-Assy, Cab Mounting, No.1 Rh[05.1995 -] LY100,YY100 |
51711-26080 |
US $27.66 |
||
|
51703
|
51703
51703-26012 Bracket Sub-Assy, Cab Mounting, No.2, Rh[05.1995 -] LY100,YY100 |
51703-26012 |
US $104.83 |
||
|
51704
|
51704
51703-26012 Bracket Sub-Assy, Cab Mounting, No.2, Rh[05.1995 -] LY100,YY100 |
51703-26012 |
US $104.83 |
||
|
51731
|
51731
51705-26043 Bracket, Cab Rear Mounting, Rh[05.1995 -] LY100..TW2 |
51705-26043 |
US $106.29 |
||
|
51732
|
51732
51705-26043 Bracket, Cab Rear Mounting, Rh[05.1995 -] LY100..TW2 |
51705-26043 |
US $106.29 |
||
|
51743A
|
51743A
51743-26010 Bracket, Rear Body Mounting, No.1[05.1995 -] LY100,YY100 |
51743-26010 |
US $15.58 |
||
|
51963A
|
51963A
51963-26041 Hook, Transport, Front Rh[08.1997 -] LY100..LHD..EUR |
51963-26041 |
US $18.78 |
||
|
51963F
|
51963F
51963-26041 Hook, Transport, Front Rh[08.1997 -] LY100..LHD..EUR |
51963-26041 |
US $18.78 |
||
|
51965C
|
51965C
51965-26031 Hook, Rear[08.1997 -] LY100..LHD..EUR |
51965-26031 |
US $24.75 |
||
|
57107
|
57107
57107-26040 Bracket Sub-Assy, Strut Bar, Rh[05.1995 -] LY100,YY100 |
57107-26040 |
US $104.83 |
||
| replacement | |||||
|
57107
|
57107
57107-26010 Bracket Sub-Assy, Strut Bar, Rh[05.1995 -] LY100,YY100 |
57107-26010 |
US $101.92 |
||
|
57108
|
57108
57108-26040 Bracket Sub-Assy, Strut Bar, Lh[05.1995 -] LY100,YY100 |
57108-26040 |
US $104.83 |
||
| replacement | |||||
|
57108
|
57108
57108-26010 Bracket Sub-Assy, Strut Bar, Lh[05.1995 -] LY100,YY100 |
57108-26010 |
US $101.92 |
||
|
9010512233
|
9010512233
90105-12233 New Genuine Part |
90105-12233 |
US $5.39 |
||
|
9011910454
|
9011910454
90119-10454 New Genuine Part |
90119-10454 |
US $2.04 |
||
|
9011910809
|
9011910809
90119-10809 New Genuine Part |
90119-10809 |
US $1.46 |
||
|
9017912020
|
9017912020
90179-12020 Nut(For Parking Brake Plate To Rear Axle Housing) |
90179-12020 |
US $2.56 |
||
