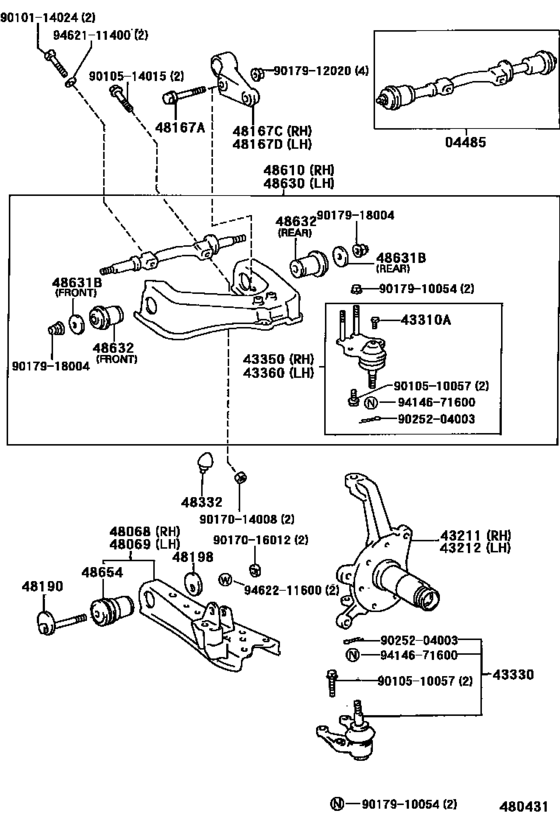

Front Axle Arm & Steering Knuckle ([05.1995 - 08.1995] (9505-9508)) Diagram Toyota DYNA 100
- Year
- 1995 - 2001
- Sales region
- General
- Frame
- LY100
- ENGINE
- 2L
- DESTINATION
- EUR
- Model
- DYNA 100
- From
- 05.1995
- To
- 08.2001
- Vehicle Model
- Dyna 100
- Deck,cab
- TW2
- Driver's Position
- LHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04485
|
04485
04485-26050 Shaft Kit, Upper Suspension Arm[05.1995 -] LY100,YY100 |
04485-26050 |
US $186.37 |
||
| replacement | |||||
|
04485
|
04485
04485-26120 Shaft Kit, Upper Suspension ArmFRONT SUSPENSION UPPER ARM, RH [05.1995 -] LY100,YY100 |
04485-26120 |
US $154.34 |
||
|
43211
|
43211
43211-26051 Knuckle, Steering, Rh[05.1995 -] LY100,YY100 |
43211-26051 |
US $234.12 |
||
|
43212
|
43212
43212-26021 Knuckle, Steering, Lh[05.1995 -] LY100,YY100 |
43212-26021 |
US $234.12 |
||
|
43310A
|
43310A
90345-06014 Plug (For Ball Joint)[05.1995 - 08.1995] LY100,YY100 |
90345-06014 |
from US $1.76 |
||
|
43330
|
43330
43330-29295
Joint Assy, Lower Ball, Front
[05.1995 -] LY100,YY100 |
43330-29295 |
— | ||
| replacement | |||||
|
43330
|
43330
43330-29515 Joint Assy, Lower Ball, Front[05.1995 -] LY100,YY100 |
43330-29515 |
US $87.32 |
||
|
43350
|
43350
43350-29105 Joint Assy, Front Upper Ball, Rh[05.1995 - 08.1995] LY100,YY100 |
43350-29105 |
US $107.74 |
||
|
43360
|
43360
43350-29105 Joint Assy, Front Upper Ball, Rh[05.1995 - 08.1995] LY100,YY100 |
43350-29105 |
US $107.74 |
||
|
48068
|
48068
48068-26022
Arm Sub-Assy, Front Suspension, Lower No.1 Rh
[05.1995 -] LY100,YY100 |
48068-26022 |
— | ||
|
48069
|
48069
48069-26022 Arm Sub-Assy, Front Suspension, Lower No.1 Lh[05.1995 -] LY100,YY100 |
48069-26022 |
US $183.46 |
||
|
48167A
|
48167A
90105-12183 Bolt(For Alternator)[05.1995 - 08.1995] LY100,YY100 *12-1.25PX98-30 |
90105-12183 |
US $3.06 |
||
|
48167A
|
48167A
90105-12200 Bolt(For Torque Arm Setting)[05.1995 - 08.1995] LY100,YY100 *12-1.25PX34.5-16.5 |
90105-12200 |
US $2.24 |
||
|
48167A
|
48167A
90105-12284 Bolt(For Torque Arm Setting)[08.1995 -] LY100,YY100 *12-1.25PX33-23 |
90105-12284 |
US $4.16 |
||
|
48167A
|
48167A
90105-12285 Bolt(For Torque Arm Setting)[08.1995 -] LY100,YY100 *12-1.25PX44-22 |
90105-12285 |
from US $0.66 |
||
|
48167C
|
48167C
48106-26050 Arm, Torque[05.1995 -] LY100,YY100 |
48106-26050 |
US $77.17 |
||
|
48167D
|
48167D
48106-26050 Arm, Torque[05.1995 -] LY100,YY100 |
48106-26050 |
US $77.17 |
||
|
48190
|
48190
48190-26020 Cam Assy, Camber Adjust[05.1995 -] LY100,YY100 |
48190-26020 |
from US $13.69 |
||
|
48198
|
48198
48198-26010 Cam, Camber Adjust, No.2[05.1995 -] LY100,YY100 |
48198-26010 |
from US $2.98 |
||
|
48332
|
48332
48332-35020 Bumper, Front Spring, No.2[05.1995 -] LY100,YY100 |
48332-35020 |
from US $2.88 |
||
|
48610
|
48610
48610-29105 Arm Assy, Front Suspension Upper, Rh[05.1995 - 08.1995] LY100,YY100 |
48610-29105 |
US $368.37 |
||
|
48630
|
48630
48630-29095 Arm Assy, Front Suspension, Upper Lh[05.1995 - 08.1995] LY100,YY100 |
48630-29095 |
US $368.37 |
||
|
48631B
|
48631B
90948-02142 Retainer, Cushion(For Front Suspension Upper Arm Rh)REAR (refer to scheme) [05.1995 -] LY100,YY100 REAR |
90948-02142 |
US $6.29 |
||
|
48631B
|
48631B
90948-02143 Retainer, Cushion(For Front Suspension Upper Arm)FRONT (refer to scheme) [05.1995 -] LY100,YY100 FRONT |
90948-02143 |
US $10.83 |
||
|
48632
|
48632
48632-26010 Bush, Upper ArmFRONT (refer to scheme) [05.1995 -] LY100,YY100 FRONT |
48632-26010 |
from US $34.48 |
||
|
48632
|
48632
48635-26010 Bush, Upper Arm[05.1995 -] LY100,YY100 REAR |
48635-26010 |
from US $53.20 |
||
|
48654
|
48654
48061-26010 Bush, Lower Arm[05.1995 -] LY100,YY100 |
48061-26010 |
US $70.91 |
||
|
9010114024
|
9010114024
90101-14024 New Genuine Part |
90101-14024 |
US $5.39 |
||
|
9010510057
|
9010510057
90105-10057 Bolt (For Front Lower Ball Joint) |
90105-10057 |
US $3.68 |
||
|
9010514015
|
9010514015
90105-14015 Bolt, Upper Arm Set |
90105-14015 |
US $5.28 |
||
|
9017014008
|
9017014008
90170-14008 NUT |
90170-14008 |
US $2.88 |
||
|
9017016012
|
9017016012
90170-16012
NUT
|
90170-16012 |
— | ||
| replacement | |||||
|
9017016012
|
9017016012
90170-16023 NUT |
90170-16023 |
from US $1.17 |
||
|
9017910054
|
9017910054
90179-10054 Nut, No.1 (For Center Support Bearing) |
90179-10054 |
from US $0.37 |
||
|
9017912020
|
9017912020
90179-12020 Nut(For Parking Brake Plate To Rear Axle Housing) |
90179-12020 |
US $2.56 |
||
|
9017918004
|
9017918004
90179-18004 Nut |
90179-18004 |
from US $3.52 |
||
|
9025204003
|
9025204003
90252-04003 PIN |
90252-04003 |
from US $0.16 |
||
|
9414671600
|
9414671600
94146-71600 Nut, Castle (For Front Lower Ball Joint Setting) |
94146-71600 |
US $4.89 |
||
|
9462111400
|
9462111400
94621-11400 WASHER |
94621-11400 |
from US $2.56 |
||
|
9462211600
|
9462211600
94622-11600 WASHER |
94622-11600 |
from US $2.57 |
||
