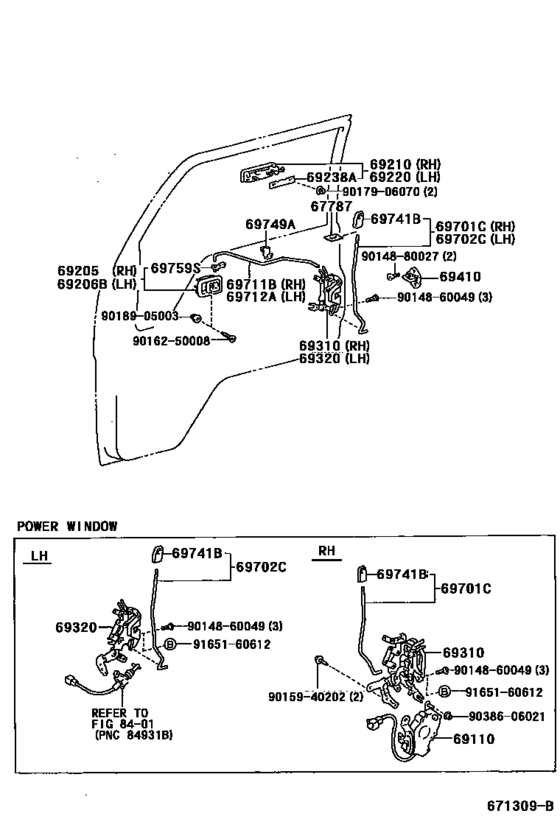

Front Door Lock & Handle ([05.1995 - ] (9505- )) Diagram Toyota DYNA 100
- Year
- 1995 - 2001
- Sales region
- General
- Frame
- LY100
- ENGINE
- 2L
- DESTINATION
- EUR
- Model
- DYNA 100
- From
- 05.1995
- To
- 08.2001
- Vehicle Model
- Dyna 100
- Deck,cab
- TW2
- Driver's Position
- LHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67787
|
67787
67787-37020 Silencer, Front Door Locking Button Knob[05.1995 -] LY100,YY100 |
67787-37020 |
US $2.01 |
||
|
69110
|
69110
69110-37020 Actuator Assy, Front Door Lock, Rh[05.1998 - 05.1999] LY100..EUR |
69110-37020 |
US $122.30 |
||
|
69205
|
69205
69205-10040-B1 Handle Sub-Assy, Front Door Inside, Rh[05.1995 -] LY100,YY100 GRAY,TRIM1# |
69205-10040-B1 |
US $22.19 |
||
|
69206B
|
69206B
69206-10040-B1 Handle Sub-Assy, Front Door Inside, Lh[05.1995 - 08.2001] LY100,YY100 GRAY,TRIM1# |
69206-10040-B1 |
US $18.26 |
||
|
69210
|
69210
69210-37010 Handle Assy, Front Door, Outside Rh[05.1995 -] LY100,YY100 |
69210-37010 |
US $55.56 |
||
|
69220
|
69220
69220-37010 Handle Assy, Front Door Outside, Lh[05.1995 -] LY100,YY100 |
69220-37010 |
US $64.22 |
||
|
69238A
|
69238A
69238-95J00 Pad, Door Outside Handle[05.1995 -] LY100,YY100 |
69238-95J00 |
US $3.93 |
||
|
69310
|
69310
69310-37050 Lock Assy, Front Door, Rh[05.1995 -] LY100,YY100 |
69310-37050 |
US $138.03 |
||
|
69310
|
69310
69310-37060 Lock Assy, Front Door, RhFRONT DOOR, RH [05.1998 - 05.1999] LY100..EUR W(POWER WINDOW) |
69310-37060 |
US $115.02 |
||
|
69320
|
69320
69320-37040 Lock Assy, Front Door, Lh[05.1995 -] LY100,YY100 |
69320-37040 |
US $131.04 |
||
|
69320
|
69320
69320-37050 Lock Assy, Front Door, LhFRONT DOOR, LH [05.1998 - 05.1999] LY100..EUR W(POWER WINDOW) |
69320-37050 |
US $131.04 |
||
|
69410
|
69410
69410-89103
Plate Assy, Front Door Lock Striker
[05.1995 -] LY100,YY100 |
69410-89103 |
— | ||
|
69701C
|
69701C
69701-37010-C0 Link Sub-Assy, Front Door Lock Control, Rh[05.1995 -] LY100,YY100 BLACK,TRIM1# |
69701-37010-C0 |
US $12.90 |
||
|
69702C
|
69702C
69702-37010-C0 Link Sub-Assy, Front Door Lock Control, Lh[05.1995 -] LY100,YY100 BLACK,TRIM1# |
69702-37010-C0 |
US $14.50 |
||
|
69711B
|
69711B
69711-95403 Link Assy, Front Door Open Control, Rh[05.1995 -] LY100,YY100 |
69711-95403 |
US $8.04 |
||
|
69712A
|
69712A
69712-95401 Link, Front Door Lock Remote Control, Lh[05.1995 -] LY100,YY100 |
69712-95401 |
US $8.30 |
||
|
69741B
|
69741B
69741-32010-20 Knob, Front Door Lock Control[05.1995 -] LY100,YY100 BLACK,TRIM1# |
69741-32010-20 |
US $4.89 |
||
|
69749A
|
69749A
69749-20010 Clamp, Front Door Lock Link[05.1995 -] LY100,YY100 |
69749-20010 |
from US $2.88 |
||
|
69759S
|
69759S
69759-20060 Snap(For Rear Door Inside Handle)[05.1995 -] LY100,YY100 GRAY |
69759-20060 |
US $3.84 |
||
|
69759S
|
69759S
69759-20070 Snap(For Rear Door Inside Handle)[05.1995 -] LY100,YY100 GREEN |
69759-20070 |
from US $2.24 |
||
|
9014860049
|
9014860049
90148-60049 Screw Hex Lobular |
90148-60049 |
US $1.76 |
||
|
9014880027
|
9014880027
90148-80027 Screw Hex Lobular |
90148-80027 |
US $7.20 |
||
|
9015940202
|
9015940202
90159-40202 SCREW WWASHER |
90159-40202 |
US $0.96 |
||
|
9016250008
|
9016250008
90162-50008 SCREW |
90162-50008 |
US $1.12 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9018905003
|
9018905003
90189-05003 CLIP |
90189-05003 |
from US $1.19 |
||
|
9038606021
|
9038606021
90386-06021 New Genuine Part |
90386-06021 |
US $2.62 |
||
|
9165160612
|
9165160612
91651-60612 BOLT |
91651-60612 |
US $1.44 |
||
