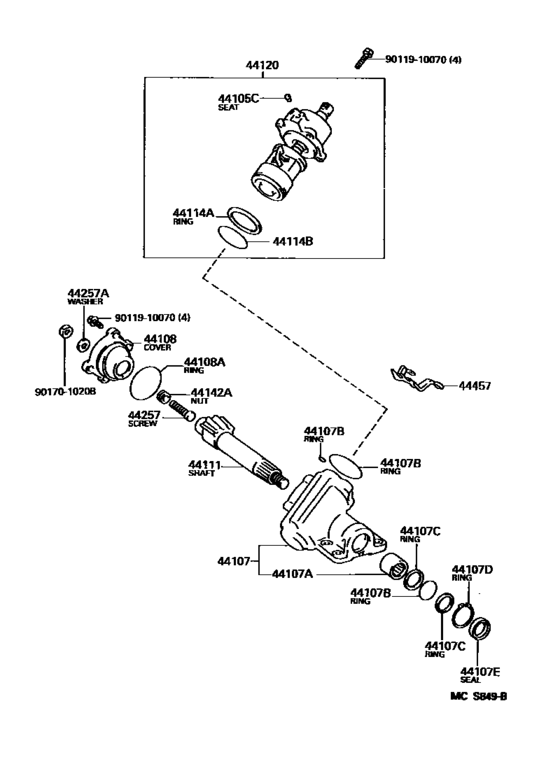

Front Steering Gear & Link ([05.1995 - ] POWER STEERING (9505- )LY100) Diagram Toyota DYNA 100
- Year
- 1995 - 2001
- Sales region
- General
- Frame
- LY100
- ENGINE
- 2L
- DESTINATION
- EUR
- Model
- DYNA 100
- From
- 05.1995
- To
- 08.2001
- Vehicle Model
- Dyna 100
- Deck,cab
- TW2
- Driver's Position
- LHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44107
|
44107
44107-26040
Housing Sub-Assy, Power Steering Gear
[05.1995 -] LY100..LHD |
44107-26040 |
— | ||
|
44107A
|
44107A
90364-32001 Bearing, Needle Roller(For Power Steering Gear Housing)[05.1995 -] LY100..EUR;LY100..LHD..GEN |
90364-32001 |
US $16.25 |
||
|
44107B
|
44107B
90301-33007 Ring, O(For Power Steering Gear Housing)[05.1995 -] LY100..EUR;LY100..LHD..GEN ID=33.7,OD=43.1 |
90301-33007 |
US $4.64 |
||
|
44107B
|
44107B
90301-65145 Ring, O(For Power Steering Gear Housing)[05.1995 -] LY100..EUR;LY100..LHD..GEN ID=65.0,OD=70.0 |
90301-65145 |
from US $3.84 |
||
|
44107B
|
44107B
96711-19010 Ring, O(For Oil Level Gage Guide)[05.1995 -] LY100..EUR;LY100..LHD..GEN ID=9.8,OD=13.6 |
96711-19010 |
from US $2.36 |
||
|
44107C
|
44107C
90562-31003 Ring(For Power Steering Gear Housing)[05.1995 -] LY100..EUR;LY100..LHD..GEN ID=31.7,OD=34.1,T=5 |
90562-31003 |
US $1.05 |
||
|
44107C
|
44107C
90562-32001 Ring(For Power Steering Gear Housing)[05.1995 -] LY100..EUR;LY100..LHD..GEN ID=32,OD=42 |
90562-32001 |
US $8.21 |
||
|
44107D
|
44107D
90521-46125
Ring, Hole Snap(For Power Steering Gear Housing)
[05.1995 -] LY100..EUR;LY100..LHD..GEN |
90521-46125 |
— | ||
|
44107E
|
44107E
90312-32001 Seal, Oil(For Power Steering Gear Housing)[05.1995 -] LY100..EUR;LY100..LHD..GEN |
90312-32001 |
from US $3.32 |
||
|
44108
|
44108
44108-60010 Cover Sub-Assy, Side[05.1995 -] LY100..EUR;LY100..LHD..GEN |
44108-60010 |
US $72.16 |
||
|
44108A
|
44108A
90301-64002 Ring, O(For Side Cover)[05.1995 -] LY100..EUR;LY100..LHD..GEN |
90301-64002 |
from US $2.34 |
||
|
44111
|
44111
44111-60010
Shaft, Cross
[05.1995 -] LY100..EUR;LY100..LHD..GEN |
44111-60010 |
— | ||
|
44114A
|
44114A
90562-67002 Ring(For Power Piston Nut)[05.1995 -] LY100..EUR;LY100..LHD..GEN |
90562-67002 |
US $3.20 |
||
|
44114B
|
44114B
90301-64005 Ring, O(For Power Piston Nut)[05.1995 -] LY100..EUR;LY100..LHD..GEN |
90301-64005 |
US $3.68 |
||
|
44120
|
44120
44120-26050 Valve Assy, W/ball NutPOWER STEERING CONTROL [05.1995 -] LY100..LHD |
44120-26050 |
US $690.14 |
||
|
44142A
|
44142A
44142-22020 Nut, Lock[05.1995 -] LY100..EUR;LY100..LHD..GEN |
44142-22020 |
US $6.29 |
||
|
44257
|
44257
45357-60010
Screw, Cross Shaft Adjusting
[05.1995 - 12.1998] LY100..EUR;LY100..LHD..GEN |
45357-60010 |
— | ||
|
44257
|
44257
45357-60030 Screw, Cross Shaft Adjusting[12.1998 -] LY100..EUR;LY100..LHD..GEN |
45357-60030 |
from US $3.36 |
||
|
44257A
|
44257A
90210-10001 Washer, Seal(For Cross Shaft Adjusting Screw)[05.1995 -] LY100..EUR;LY100..LHD..GEN |
90210-10001 |
US $7.04 |
||
|
9011910070
|
9011910070
90119-10070 New Genuine Part |
90119-10070 |
US $1.44 |
||
|
9017010208
|
9017010208
90170-10208 NUT |
90170-10208 |
US $1.28 |
