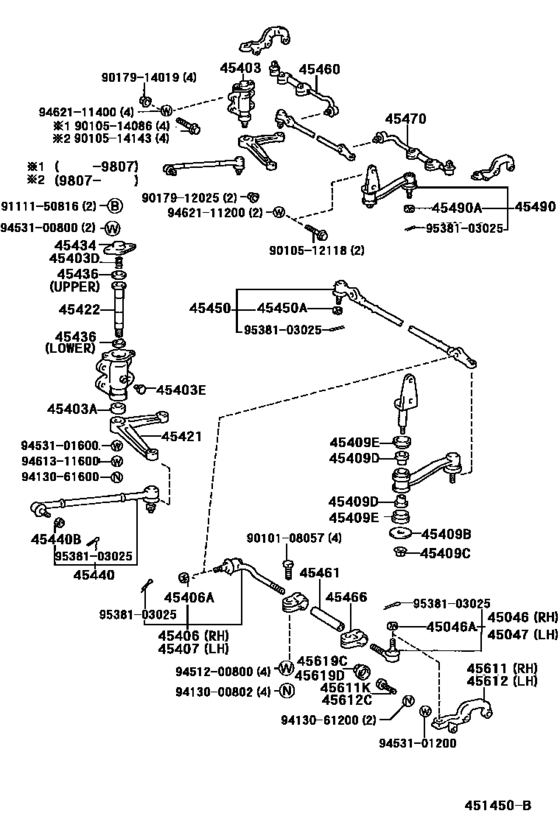

Front Steering Gear & Link ([05.1995 - ] (9505- )) Diagram Toyota DYNA 100
- Year
- 1995 - 2001
- Sales region
- General
- Frame
- LY100
- ENGINE
- 2L
- DESTINATION
- EUR
- Model
- DYNA 100
- From
- 05.1995
- To
- 08.2001
- Vehicle Model
- Dyna 100
- Deck,cab
- TW2
- Driver's Position
- LHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45046
|
45046
45046-39235
End Sub-Assy, Tie Rod
[05.1995 -] LY100,YY100 |
45046-39235 |
— | ||
| replacement | |||||
|
45046
|
45046
45046-39385 End Sub-Assy, Tie Rod[05.1995 -] LY100,YY100 |
45046-39385 |
from US $43.35 |
||
|
45046A
|
45046A
90171-14042 Nut, Castle(For Pitman Arm)[05.1995 -] LY100,YY100 |
90171-14042 |
from US $2.30 |
||
|
45047
|
45047
45046-39235
End Sub-Assy, Tie Rod
[05.1995 -] LY100,YY100 |
45046-39235 |
— | ||
| replacement | |||||
|
45047
|
45047
45046-39385 End Sub-Assy, Tie Rod[05.1995 -] LY100,YY100 |
45046-39385 |
from US $43.35 |
||
|
45403
|
45403
45403-26090
Bracket Sub-Assy, Center Arm
[05.1995 - 07.1998] LY100,YY100..LHD |
45403-26090 |
— | ||
| replacements | |||||
|
45403
|
45403
45403-26091
Bracket Sub-Assy, Center Arm
[05.1995 - 07.1998] LY100,YY100..LHD |
45403-26091 |
— | ||
|
45403
|
45403
90105-14143 New Genuine Part[05.1995 - 07.1998] LY100,YY100..LHD |
90105-14143 |
US $8.16 |
||
|
45403
|
45403
45403-26091
Bracket Sub-Assy, Center Arm
[07.1998 -] LY100,YY100..LHD |
45403-26091 |
— | ||
|
45403A
|
45403A
90311-25004 Seal, Oil(For Center Arm Bracket)[05.1995 -] LY100,YY100 |
90311-25004 |
from US $1.92 |
||
|
45403D
|
45403D
90501-30369 Spring, Compression(For Center Arm Shaft Set)[05.1995 -] LY100,YY100 |
90501-30369 |
US $3.35 |
||
|
45403E
|
45403E
90345-06014 Plug (For Ball Joint)[05.1995 -] LY100,YY100 |
90345-06014 |
from US $1.76 |
||
|
45406
|
45406
45406-29175 Rod Sub-Assy, Tie, Rh[05.1995 -] LY100,YY100 |
45406-29175 |
US $76.96 |
||
|
45406A
|
45406A
90171-14042 Nut, Castle(For Pitman Arm)[05.1995 -] LY100,YY100 |
90171-14042 |
from US $2.30 |
||
|
45407
|
45407
45406-29175 Rod Sub-Assy, Tie, Rh[05.1995 -] LY100,YY100 |
45406-29175 |
US $76.96 |
||
|
45409B
|
45409B
90201-14519
Washer, Plate(For Idler Arm Rubber Bush)
[05.1995 -] LY100,YY100 |
90201-14519 |
— | ||
|
45409C
|
45409C
94184-61401 Nut(For Idler Arm Support)[05.1995 -] LY100,YY100 |
94184-61401 |
US $2.72 |
||
|
45409D
|
45409D
90385-18068 Bush(For Idler Arm)[05.1995 -] LY100,YY100 |
90385-18068 |
from US $2.18 |
||
|
45409E
|
45409E
90304-31012 Seal, Dust(For Idler Arm Support)[05.1995 -] LY100,YY100 |
90304-31012 |
from US $7.13 |
||
|
45421
|
45421
45421-26070
Arm, Steering Center
[05.1995 - 10.1996] LY100,YY100..LHD |
45421-26070 |
— | ||
|
45421
|
45421
45421-26071
Arm, Steering Center
[10.1996 -] LY100,YY100..LHD |
45421-26071 |
— | ||
|
45422
|
45422
45422-26010
Shaft, Center Arm
[05.1995 -] LY100,YY100 |
45422-26010 |
— | ||
|
45434
|
45434
45434-26011 Cap, Center Arm Bracket[05.1995 -] LY100,YY100 |
45434-26011 |
US $8.04 |
||
|
45436
|
45436
45436-26010 Seat, Center Arm Shaft[05.1995 -] LY100,YY100 UPPER |
45436-26010 |
US $4.66 |
||
|
45436
|
45436
45436-28010 Seat, Center Arm Shaft[05.1995 -] LY100,YY100 LOWER |
45436-28010 |
US $3.49 |
||
|
45440
|
45440
45440-29265
Link Assy, Steering Drag
[05.1995 -] LY100,YY100..LHD |
45440-29265 |
— | ||
|
45440B
|
45440B
90171-14042 Nut, Castle(For Pitman Arm)[05.1995 -] LY100,YY100 |
90171-14042 |
from US $2.30 |
||
|
45450
|
45450
45450-29195
Rod Assy, Steering Relay
[05.1995 -] LY100,YY100..LHD |
45450-29195 |
— | ||
|
45450A
|
45450A
90171-14042 Nut, Castle(For Pitman Arm)[05.1995 -] LY100,YY100 |
90171-14042 |
from US $2.30 |
||
|
45460
|
45460
45460-29415 Rod Assy, Tie, Rh[05.1995 -] LY100,YY100 |
45460-29415 |
US $94.72 |
||
|
45461
|
45461
45465-35020
Rod, Steering Tie
[05.1995 -] LY100,YY100 |
45465-35020 |
— | ||
|
45466
|
45466
45466-30020 Clamp, Tie Rod End[05.1995 -] LY100,YY100 |
45466-30020 |
from US $3.55 |
||
|
45470
|
45470
45460-29415 Rod Assy, Tie, Rh[02.1997 -] LY100,YY100 |
45460-29415 |
US $94.72 |
||
|
45470
|
45470
45470-29175 Rod Assy, Tie, Lh[05.1995 - 02.1997] LY100,YY100 |
45470-29175 |
US $85.90 |
||
| replacement | |||||
|
45470
|
45470
45460-29415 Rod Assy, Tie, Rh[05.1995 - 02.1997] LY100,YY100 |
45460-29415 |
US $94.72 |
||
|
45490
|
45490
45490-29515 Arm Assy, Steering Idler[05.1995 -] LY100,YY100 |
45490-29515 |
US $156.96 |
||
|
45490A
|
45490A
90171-12028 Nut, Castle(For Pitman Arm)[05.1995 -] LY100,YY100 |
90171-12028 |
from US $1.42 |
||
|
45611
|
45611
45611-26040 Arm, Steering Knuckle, Rh[05.1995 -] LY100,YY100 |
45611-26040 |
US $94.64 |
||
|
45611K
|
45611K
90106-12005 Bolt, Round Hexagon (For Steering Knuckle Stopper Bolt)[05.1995 -] LY100..EUR |
90106-12005 |
from US $1.13 |
||
|
45612
|
45612
45612-26040 Arm, Steering Knuckle, Lh[05.1995 -] LY100,YY100 |
45612-26040 |
US $94.64 |
||
|
45612C
|
45612C
90106-12005 Bolt, Round Hexagon (For Steering Knuckle Stopper Bolt)[05.1995 -] LY100..EUR |
90106-12005 |
from US $1.13 |
||
|
45619C
|
45619C
45619-26020 Cover, Knuckle Stopper[04.1999 -] LY100,YY100 |
45619-26020 |
from US $2.24 |
||
|
45619C
|
45619C
45619-36010 Cover, Knuckle Stopper[05.1995 - 04.1999] LY100,YY100 |
45619-36010 |
from US $4.52 |
||
|
45619D
|
45619D
45619-26020 Cover, Knuckle Stopper[04.1999 -] LY100,YY100 |
45619-26020 |
from US $2.24 |
||
|
45619D
|
45619D
45619-36010 Cover, Knuckle Stopper[05.1995 - 04.1999] LY100,YY100 |
45619-36010 |
from US $4.52 |
||
|
9010108057
|
9010108057
90101-08057 BOLT |
90101-08057 |
US $1.28 |
||
|
9010512118
|
9010512118
90105-12118 New Genuine Part |
90105-12118 |
US $5.39 |
||
|
9010514086
|
9010514086
90105-14086 New Genuine Part |
90105-14086 |
US $5.68 |
||
|
9010514143
|
9010514143
90105-14143 New Genuine Part |
90105-14143 |
US $8.16 |
||
|
9017912025
|
9017912025
90179-12025 Nut (For Rear Axle Carrier) |
90179-12025 |
from US $1.21 |
||
|
9017914019
|
9017914019
90179-14019 Nut |
90179-14019 |
from US $1.40 |
||
|
9111150816
|
9111150816
91111-50816 Bolt |
91111-50816 |
US $1.92 |
||
|
9413000802
|
9413000802
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.03 |
||
| replacement | |||||
|
9413000802
|
9413000802
90170-A0001 New Genuine Part |
90170-A0001 |
US $1.59 |
||
|
9413061200
|
9413061200
94130-61200 Nut |
94130-61200 |
from US $1.03 |
||
|
9413061600
|
9413061600
94130-61600 Nut, Hexagon(for Sector Shaft To Pitman Arm Setting) |
94130-61600 |
US $1.92 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.76 |
||
|
9453100800
|
9453100800
94531-00800 Washer (For Transfer Shift Outer Lever) |
94531-00800 |
from US $1.93 |
||
|
9453101200
|
9453101200
94531-01200 WASHER |
94531-01200 |
from US $0.80 |
||
|
9453101600
|
9453101600
94531-01600 WASHER |
94531-01600 |
US $0.61 |
||
|
9461311600
|
9461311600
94613-11600
New Genuine Part
|
94613-11600 |
— | ||
|
9462111200
|
9462111200
94621-11200 New Genuine Part |
94621-11200 |
US $3.20 |
||
|
9462111400
|
9462111400
94621-11400 WASHER |
94621-11400 |
from US $2.56 |
||
|
9538103025
|
9538103025
95381-03025 PIN |
95381-03025 |
from US $0.84 |
||
