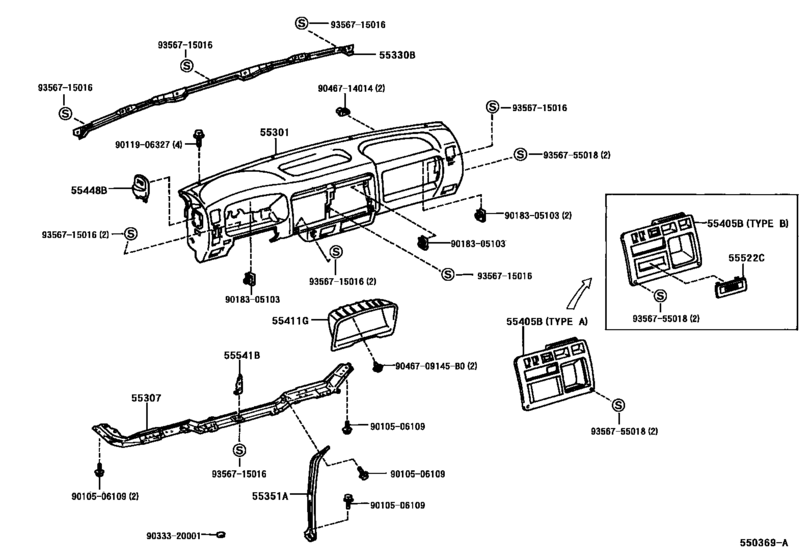

Instrument Panel & Glove Compartment ([05.1995 - ] (9505- )LHD) Diagram Toyota DYNA 100
- Year
- 1995 - 2001
- Sales region
- General
- Frame
- LY100
- ENGINE
- 2L
- DESTINATION
- EUR
- Model
- DYNA 100
- From
- 05.1995
- To
- 08.2001
- Vehicle Model
- Dyna 100
- Deck,cab
- TW2
- Driver's Position
- LHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55301
|
55301
55311-37030-B0 Panel Sub-Assy, InstrumentINSTRUMENT [05.1995 -] LY100,YY100..LHD BLUISH GRAY,TRIM1# |
55311-37030-B0 |
US $582.40 |
||
|
55307
|
55307
55307-37020 Reinforcement Sub-Assy, Instrument Panel, LowerINSTRUMENT PANEL, LOWER [05.1995 -] LY100,YY100..LHD |
55307-37020 |
US $88.82 |
||
|
55330B
|
55330B
55330-25010 Reinforcement Assy, Instrument Panel[05.1995 -] LY100,YY100 |
55330-25010 |
US $75.71 |
||
|
55351A
|
55351A
55351-37020 Brace, Instrument Panel To FloorINSTRUMENT PANEL TO FLOOR [05.1995 -] LY100,YY100..LHD |
55351-37020 |
US $25.63 |
||
|
55405B
|
55405B
55405-25010-C0 Panel Sub-Assy, Instrument Cluster Finish, CenterINSTRUMENT CLUSTER FINISH, CENTER [05.1995 -] LY100..LHD..EUR TYPE B:REFER TO ILLUSTRATION & W(FRONT HEATER),BLACK,TRIM1# |
55405-25010-C0 |
US $115.02 |
||
|
55405B
|
55405B
55405-25030-C0 Panel Sub-Assy, Instrument Cluster Finish, CenterINSTRUMENT CLUSTER FINISH, CENTER [05.1995 -] LY100..LHD..EUR TYPE B:REFER TO ILLUSTRATION & W(FRONT HEATER & CLOCK),BLACK,TRIM1# |
55405-25030-C0 |
US $115.02 |
||
|
55405B
|
55405B
55405-25050-C0 Panel Sub-Assy, Instrument Cluster Finish, CenterINSTRUMENT CLUSTER FINISH, CENTER [05.1995 - 08.1997] LY100..LHD TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM1# |
55405-25050-C0 |
US $115.02 |
||
|
55405B
|
55405B
55405-37050-C0 Panel Sub-Assy, Instrument Cluster Finish, CenterINSTRUMENT CLUSTER FINISH, CENTER [05.1995 - 08.1997] LY100,YY100..LHD TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1# |
55405-37050-C0 |
US $115.02 |
||
|
55405B
|
55405B
55405-37060-C0 Panel Sub-Assy, Instrument Cluster Finish, CenterINSTRUMENT CLUSTER FINISH, CENTER [05.1995 -] LY100,YY100..LHD TYPE A:REFER TO ILLUSTRATION & W(FRONT HEATER),BLACK,TRIM1# |
55405-37060-C0 |
US $115.02 |
||
|
55405B
|
55405B
55405-37070-C0
Panel Sub-Assy, Instrument Cluster Finish, Center
[05.1995 -] LY100,YY100..LHD TYPE A:REFER TO ILLUSTRATION & W(FRONT HEATER & CLOCK),BLACK,TRIM1# |
55405-37070-C0 |
— | ||
|
55411G
|
55411G
55411-37010-C0 Panel, Instrument Cluster Finish, No.1[05.1995 - 08.1997] LY100,YY100 BLACK,TRIM1# |
55411-37010-C0 |
US $61.30 |
||
|
55448B
|
55448B
55448-37010-B0 Cover, Oil Reservoir Tank, Rh[05.1995 -] LY100,YY100 BLUISH GRAY,TRIM1# |
55448-37010-B0 |
US $8.91 |
||
|
55522C
|
55522C
55522-20060
Cover, Radio Tuner Opening
[05.1995 -] LY100..LHD..EUR |
55522-20060 |
— | ||
|
55541B
|
55541B
55541-37010 Retainer, Radio Tuner Opening, No.1[05.1995 -] LY100,YY100 |
55541-37010 |
US $6.12 |
||
|
9010506109
|
9010506109
90105-06109 New Genuine Part |
90105-06109 |
US $1.60 |
||
|
9011906327
|
9011906327
90119-06327 New Genuine Part |
90119-06327 |
US $1.60 |
||
| replacement | |||||
|
9011906327
|
9011906327
90119-06324 Bolt |
90119-06324 |
US $1.75 |
||
|
9018305103
|
9018305103
90183-05103 NUT |
90183-05103 |
US $1.44 |
||
|
9033320001
|
9033320001
90333-20001 PLUG |
90333-20001 |
from US $1.12 |
||
|
9046709145B0
|
9046709145B0
90467-09145-B0 Clip(For Glove Compartment) |
90467-09145-B0 |
US $2.56 |
||
|
9046714014
|
9046714014
90467-14014 New Genuine Part |
90467-14014 |
US $1.89 |
||
|
9356715016
|
9356715016
93567-15016
New Genuine Part
|
93567-15016 |
— | ||
| replacement | |||||
|
9356715016
|
9356715016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
|
9356755018
|
9356755018
93567-55018
New Genuine Part
|
93567-55018 |
— | ||
| replacement | |||||
|
9356755018
|
9356755018
93568-55018 SCREW |
93568-55018 |
US $1.92 |
||
