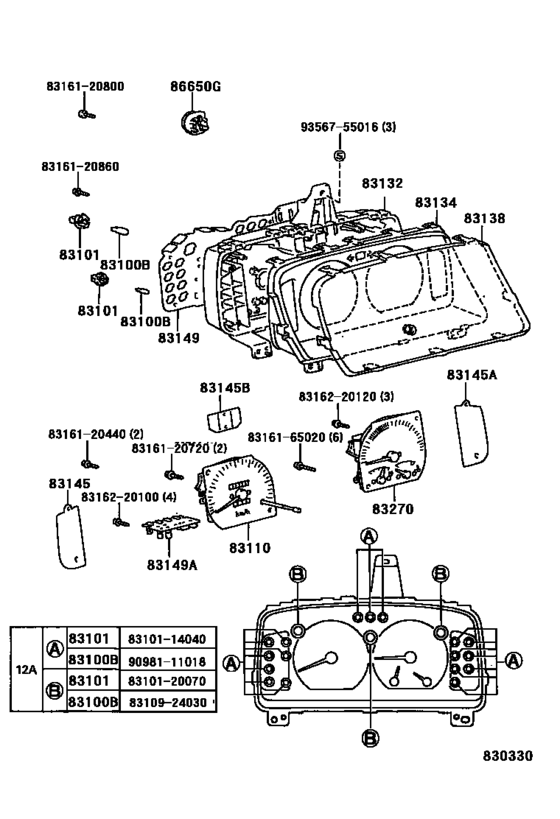

Meter ([05.1995 - ] W(TACHOMETER) (9505- )) Diagram Toyota DYNA 100
- Year
- 1995 - 2001
- Sales region
- General
- Frame
- LY100
- ENGINE
- 2L
- DESTINATION
- EUR
- Model
- DYNA 100
- From
- 05.1995
- To
- 08.2001
- Vehicle Model
- Dyna 100
- Deck,cab
- TW2
- Driver's Position
- LHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83109-24030 Bulb, Combination Meter, No.1[05.1995 -] YY100;LY100..RHD;LY100..LHD..EUR 12V 3.4W W(GREEN CAP) |
83109-24030 |
from US $3.14 |
||
|
83100B
|
83100B
83120-60020 Bulb, Combination Meter, No.1[08.1997 -] LY100 12V 1.4W,W(SOCKET) |
83120-60020 |
from US $3.80 |
||
|
83100B
|
83100B
90010-06006 Bulb, Combination Meter, No.1[08.1997 -] LY100 12V 3.4W,W(GREEN CAP) |
90010-06006 |
from US $1.93 |
||
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[05.1995 - 08.1997] LY100,YY100 |
90981-11018 |
from US $2.24 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[05.1995 - 08.1997] LY100,YY100 TYPE A:REFER TO ILLUSTRATION |
83101-14040 |
US $3.02 |
||
|
83101
|
83101
83101-20070 Socket Sub-Assy, Combination Meter Bulb[05.1995 - 08.1997] LY100,YY100 TYPE B:REFER TO ILLUSTRATION |
83101-20070 |
US $7.84 |
||
|
83110
|
83110
83110-25170 Speedometer Assy[05.1995 - 08.1997] LY100..LHD |
83110-25170 |
US $432.43 |
||
|
83110
|
83110
83110-25171 Speedometer Assy[08.1997 -] LY100..LHD..EUR |
83110-25171 |
US $432.43 |
||
|
83132
|
83132
83132-37020 Case, Combination Meter[05.1995 -] LY100,YY100 |
83132-37020 |
US $77.93 |
||
|
83134
|
83134
83134-37020 Cover, Combination Meter, No.1[05.1995 -] LY100,YY100 |
83134-37020 |
US $37.05 |
||
|
83138
|
83138
83137-37020
Glass, Speedometer
[05.1995 -] LY100,YY100 |
83137-37020 |
— | ||
|
83145
|
83145
83146-37380 Lens, Meter, No.1METER, NO.1 [05.1995 -] LY100..EUR; LY100..RHD..GEN MILE/KM SPEEDOMETER |
83146-37380 |
US $12.23 |
||
|
83145A
|
83145A
83146-37200 Lens, Meter, No.2[05.1995 -] LY100,YY100 |
83146-37200 |
US $12.23 |
||
|
83145B
|
83145B
83146-37140 Lens, Meter, No.3[05.1995 -] LY100,YY100 |
83146-37140 |
US $8.74 |
||
|
83149
|
83149
83149-37300 Plate, Meter CircuitMETER CIRCUIT [05.1995 -] LY100..EUR |
83149-37300 |
US $58.24 |
||
|
83149
|
83149
83149-37620 Plate, Meter CircuitMETER CIRCUIT [05.1995 - 08.1997] LY100..EUR W(TACHOMETER) |
83149-37620 |
US $58.24 |
||
|
83149A
|
83149A
83149-26860 Plate, Meter Circuit[05.1995 -] LY100,YY100 |
83149-26860 |
US $58.24 |
||
|
83270
|
83270
83243-37320 Tachometer Assy, EngineENGINE [05.1995 - 08.1997] LY100 |
83243-37320 |
US $626.08 |
||
|
8310114040
|
8310114040
83101-14040 Socket, Indicator Lamp |
83101-14040 |
US $3.02 |
||
|
8310120070
|
8310120070
83101-20070 Socket Sub-Assy, Combination Meter Bulb |
83101-20070 |
US $7.84 |
||
|
8310924030
|
8310924030
83109-24030 Bulb, Combination Meter, No.1 |
83109-24030 |
from US $3.14 |
||
|
8316120440
|
8316120440
83161-20440
Case, Combination Meter Mirror, No.1
|
83161-20440 |
— | ||
|
8316120720
|
8316120720
83161-20720 Case, Combination Meter Mirror, No.1 |
83161-20720 |
US $1.46 |
||
|
8316120800
|
8316120800
83161-20800 Case, Combination Meter Mirror, No.1 |
83161-20800 |
US $1.46 |
||
|
8316120860
|
8316120860
83161-20860 Case, Combination Meter Mirror, No.1 |
83161-20860 |
US $1.75 |
||
|
8316165020
|
8316165020
83161-65020 Case, Combination Meter Mirror, No.1 |
83161-65020 |
US $0.86 |
||
|
8316220100
|
8316220100
83162-20100 Case, Combination Meter Mirror, No.2 |
83162-20100 |
US $1.46 |
||
|
8316220120
|
8316220120
83162-20120 Case, Combination Meter Mirror, No.2 |
83162-20120 |
US $1.02 |
||
|
9098111018
|
9098111018
90981-11018 Bulb, Position Indicator Lamp |
90981-11018 |
from US $2.24 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.60 |
||
