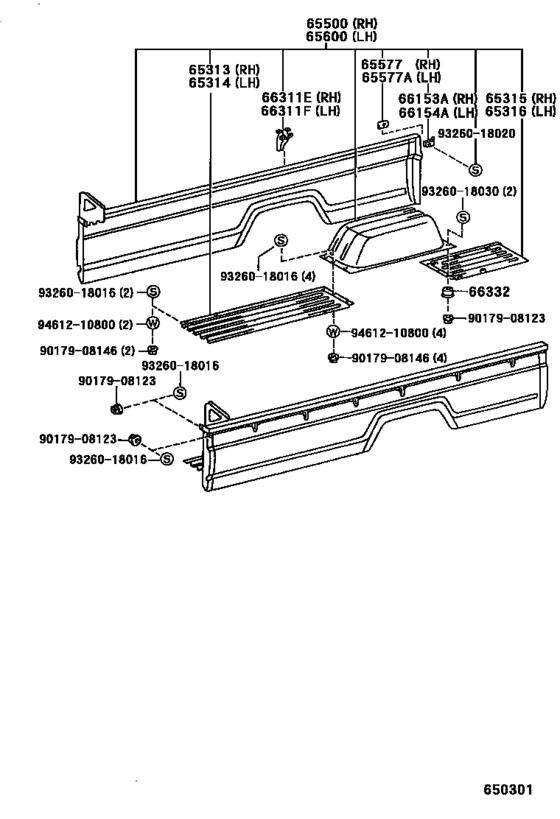

Rear Body Side Panel ([05.1995 - ] (9505- )TW2) Diagram Toyota DYNA 100
- Year
- 1995 - 2001
- Sales region
- General
- Frame
- LY100
- ENGINE
- 2L
- DESTINATION
- EUR
- Model
- DYNA 100
- From
- 05.1995
- To
- 08.2001
- Vehicle Model
- Dyna 100
- Deck,cab
- TW2
- Driver's Position
- LHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
65313
|
65313
65313-25020 Panel, Floor Front Corner, Rh[05.1995 -] LY100..TW2..CBU |
65313-25020 |
US $60.57 |
||
|
65314
|
65314
65314-25030 Panel, Floor Front Corner, Lh[05.1995 -] LY100..TW2..CBU |
65314-25030 |
US $60.57 |
||
|
65315
|
65315
65315-25010 Panel, Floor Rear Corner, Rh[05.1995 -] LY100..TW2..CBU |
65315-25010 |
US $100.46 |
||
|
65316
|
65316
65316-25010 Panel, Floor Rear Corner, Lh[05.1995 -] LY100..TW2..CBU |
65316-25010 |
US $100.46 |
||
|
65500
|
65500
65500-25080 Panel Assy, Rear Body Side, Rh[05.1995 -] LY100..TW2..CBU |
65500-25080 |
US $679.95 |
||
|
65577
|
65577
65577-95012 Retainer, Tail Gate Latch Female[05.1995 -] LY100..TW2..CBU |
65577-95012 |
from US $10.92 |
||
|
65577A
|
65577A
65577-95012 Retainer, Tail Gate Latch Female[05.1995 -] LY100..TW2..CBU |
65577-95012 |
from US $10.92 |
||
|
65600
|
65600
65600-25080 Panel Assy, Rear Body Side, Lh[05.1995 -] LY100..TW2..CBU |
65600-25080 |
US $679.95 |
||
|
66153A
|
66153A
66153-95012 Latch, Tail Gate Female, Rh[05.1995 -] LY100..TW2..CBU |
66153-95012 |
US $5.94 |
||
|
66154A
|
66154A
66153-95012 Latch, Tail Gate Female, Rh[05.1995 -] LY100..TW2..CBU |
66153-95012 |
US $5.94 |
||
|
66311E
|
66311E
66311-90K00 Hook, Rope[05.1995 -] LY100..TW2..CBU |
66311-90K00 |
US $7.16 |
||
|
66311F
|
66311F
66311-90K00 Hook, Rope[05.1995 -] LY100..TW2..CBU |
66311-90K00 |
US $7.16 |
||
|
66332
|
66332
66332-95A00 Cushion, Rubber[05.1995 -] LY100..TW2..CBU |
66332-95A00 |
US $2.77 |
||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $2.13 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
|
9326018016
|
9326018016
93260-18016 SCREW |
93260-18016 |
US $1.76 |
||
|
9326018020
|
9326018020
93260-18020 SCREW |
93260-18020 |
from US $0.74 |
||
|
9326018030
|
9326018030
93260-18030 SCREW |
93260-18030 |
US $1.46 |
||
|
9461210800
|
9461210800
94612-10800 Washer, Plate(For Repair Actuator Set) |
94612-10800 |
US $1.28 |
||
