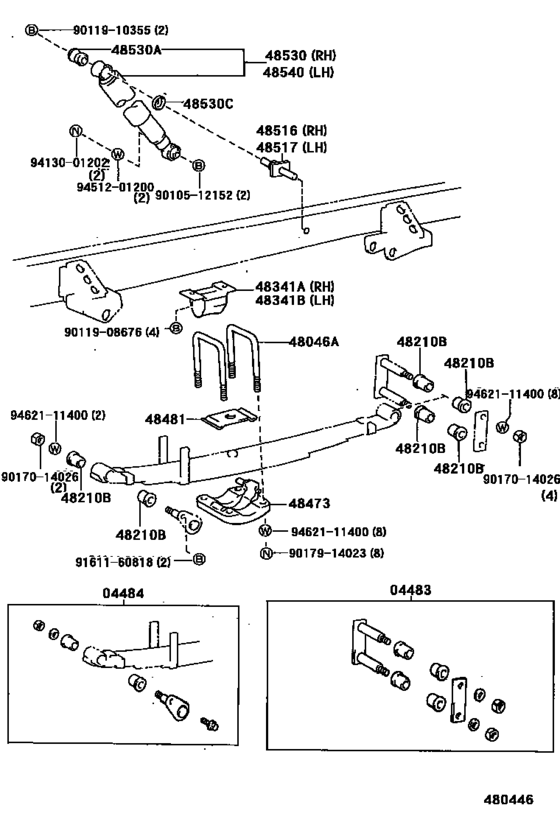

Rear Spring & Shock Absorber ([07.1996 - ] (9607- )) Diagram Toyota DYNA 100
- Year
- 1995 - 2001
- Sales region
- General
- Frame
- LY100
- ENGINE
- 2L
- DESTINATION
- EUR
- Model
- DYNA 100
- From
- 05.1995
- To
- 08.2001
- Vehicle Model
- Dyna 100
- Deck,cab
- TW2
- Driver's Position
- LHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04483
|
04483
04483-26010
Shackle Kit, Rear Spring
[05.1995 -] LY100,YY100 |
04483-26010 |
— | ||
| replacement | |||||
|
04483
|
04483
04483-35040 Shackle Kit, Rear Spring[05.1995 -] LY100,YY100 |
04483-35040 |
from US $66.12 |
||
|
04484
|
04484
04484-26030 Pin Kit, Rear Spring[05.1995 -] LY100,YY100 |
04484-26030 |
US $30.40 |
||
|
48046A
|
48046A
90117-14044 Bolt, U(For Rear Spring)[05.1995 -] LY100..EUR L=165 |
90117-14044 |
from US $25.23 |
||
|
48210B
|
48210B
90385-18046 Bush(For Front Spring Shackle)[05.1995 -] LY100,YY100 |
90385-18046 |
from US $2.15 |
||
|
48341A
|
48341A
48341-26040 Bumper, Rear Spring[05.1995 -] LY100..EUR |
48341-26040 |
US $26.50 |
||
|
48341B
|
48341B
48341-26040 Bumper, Rear Spring[05.1995 -] LY100..EUR |
48341-26040 |
US $26.50 |
||
|
48473
|
48473
48473-26080 Seat Sub-Assy, Spring U Bolt, Rh[05.1995 -] LY100,YY100 |
48473-26080 |
US $33.63 |
||
|
48481
|
48481
48481-26011 Seat, Rear Spring, Upper[05.1995 -] LY100..EUR |
48481-26011 |
US $11.50 |
||
|
48516
|
48516
48505-26010 Bracket, Rear Shock Absorber, Upper Rh[05.1995 -] LY100,YY100 |
48505-26010 |
US $24.32 |
||
|
48517
|
48517
48505-26010 Bracket, Rear Shock Absorber, Upper Rh[05.1995 -] LY100,YY100 |
48505-26010 |
US $24.32 |
||
|
48530
|
48530
48531-80448 Absorber Assy, Shock, Rear RhSHOCK, REAR RH [05.1995 - 07.1996] LY100..EUR |
48531-80448 |
US $107.74 |
||
| replacements | |||||
|
48530
|
48530
48531-80481 Absorber Assy, Shock, Rear RhSHOCK, REAR RH [05.1995 - 07.1996] LY100..EUR |
48531-80481 |
US $109.20 |
||
|
48530
|
48530
90105-12152 New Genuine Part[05.1995 - 07.1996] LY100..EUR |
90105-12152 |
US $4.02 |
||
|
48530
|
48530
90119-10355 Washer, Rear Shock Absorber Cushion, No.2[05.1995 - 07.1996] LY100..EUR |
90119-10355 |
US $3.84 |
||
|
48530
|
48530
90948-03004 Retainer, Cushion, No.1(For Front Shock Absorber)[05.1995 - 07.1996] LY100..EUR |
90948-03004 |
from US $1.42 |
||
|
48530
|
48530
94130-01202 Nut(For Dust Cover To Steering Knuckle Arm Setting)[05.1995 - 07.1996] LY100..EUR |
94130-01202 |
from US $0.99 |
||
|
48530
|
48530
94512-01200 Washer[05.1995 - 07.1996] LY100..EUR |
94512-01200 |
from US $0.76 |
||
|
48530
|
48530
48531-80481 Absorber Assy, Shock, Rear RhSHOCK, REAR RH [07.1996 -] LY100..EUR |
48531-80481 |
US $109.20 |
||
|
48530A
|
48530A
90385-16010 Bush(For Front Shock Absorber Rh)[05.1995 -] LY100,YY100 |
90385-16010 |
from US $2.75 |
||
|
48530C
|
48530C
90948-03004 Retainer, Cushion, No.1(For Front Shock Absorber)[05.1995 -] LY100,YY100 |
90948-03004 |
from US $1.42 |
||
|
48540
|
48540
48531-80448 Absorber Assy, Shock, Rear RhSHOCK, REAR RH [05.1995 - 07.1996] LY100..EUR |
48531-80448 |
US $107.74 |
||
| replacements | |||||
|
48540
|
48540
48531-80481 Absorber Assy, Shock, Rear RhSHOCK, REAR RH [05.1995 - 07.1996] LY100..EUR |
48531-80481 |
US $109.20 |
||
|
48540
|
48540
90105-12152 New Genuine Part[05.1995 - 07.1996] LY100..EUR |
90105-12152 |
US $4.02 |
||
|
48540
|
48540
90119-10355 Washer, Rear Shock Absorber Cushion, No.2[05.1995 - 07.1996] LY100..EUR |
90119-10355 |
US $3.84 |
||
|
48540
|
48540
90948-03004 Retainer, Cushion, No.1(For Front Shock Absorber)[05.1995 - 07.1996] LY100..EUR |
90948-03004 |
from US $1.42 |
||
|
48540
|
48540
94130-01202 Nut(For Dust Cover To Steering Knuckle Arm Setting)[05.1995 - 07.1996] LY100..EUR |
94130-01202 |
from US $0.99 |
||
|
48540
|
48540
94512-01200 Washer[05.1995 - 07.1996] LY100..EUR |
94512-01200 |
from US $0.76 |
||
|
48540
|
48540
48531-80481 Absorber Assy, Shock, Rear RhSHOCK, REAR RH [07.1996 -] LY100..EUR |
48531-80481 |
US $109.20 |
||
|
9010512152
|
9010512152
90105-12152 New Genuine Part |
90105-12152 |
US $4.02 |
||
|
9011908676
|
9011908676
90119-08676 BOLT WWASHER |
90119-08676 |
US $1.92 |
||
|
9011910355
|
9011910355
90119-10355 Washer, Rear Shock Absorber Cushion, No.2 |
90119-10355 |
US $3.84 |
||
|
9017014026
|
9017014026
90170-14026 Nut(For Front Support To Front Shock Absorber Rh) |
90170-14026 |
from US $0.99 |
||
|
9017914023
|
9017914023
90179-14023 Nut(For Rear Spring U Bolt) |
90179-14023 |
from US $2.15 |
||
|
9161160818
|
9161160818
91611-60818
Bolt(For Oil Receiver Pipe)
|
91611-60818 |
— | ||
| replacement | |||||
|
9161160818
|
9161160818
90119-08830 Bolt(For Oil Receiver Pipe) |
90119-08830 |
US $1.60 |
||
|
9413001202
|
9413001202
94130-01202 Nut(For Dust Cover To Steering Knuckle Arm Setting) |
94130-01202 |
from US $0.99 |
||
|
9451201200
|
9451201200
94512-01200 Washer |
94512-01200 |
from US $0.76 |
||
|
9462111400
|
9462111400
94621-11400 WASHER |
94621-11400 |
from US $2.56 |
||
