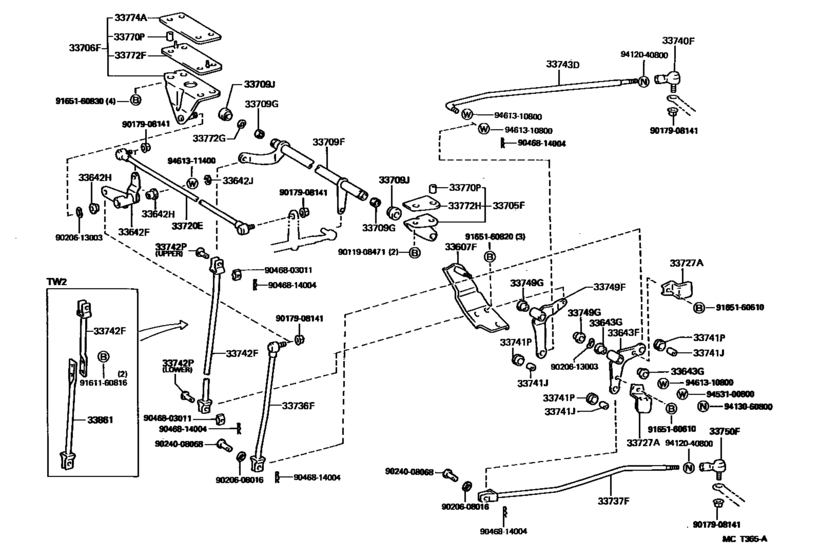

Shift Lever & Retainer ([05.1995 - ] (9505- )LHD) Diagram Toyota DYNA 100
- Year
- 1995 - 2001
- Sales region
- General
- Frame
- LY100
- ENGINE
- 2L
- DESTINATION
- EUR
- Model
- DYNA 100
- From
- 05.1995
- To
- 08.2001
- Vehicle Model
- Dyna 100
- Deck,cab
- TW2
- Driver's Position
- LHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33607F
|
33607F
33607-26220 Support Sub-Assy, Control Rod (For Column Shift)[05.1995 -] LY100,YY100 |
33607-26220 |
US $54.89 |
||
|
33642F
|
33642F
33642-25011 Lever, Gear Selecting, No.2GEAR SELECTING, NO.2 [05.1995 -] LY100,YY100..LHD |
33642-25011 |
US $15.29 |
||
|
33642H
|
33642H
90386-13007 Bush(For Clutch Pedal)[05.1995 -] LY100,YY100..LHD |
90386-13007 |
from US $2.56 |
||
|
33642J
|
33642J
96160-01000 Ring, E(For Clutch Booster Air Valve)[05.1995 -] LY100,YY100..LHD |
96160-01000 |
US $0.42 |
||
|
33643F
|
33643F
33643-25020 Lever, Gear Selecting, No.3[05.1995 -] LY100,YY100 |
33643-25020 |
US $28.97 |
||
|
33643G
|
33643G
90386-13192 Bush(For Over Center Plate)[05.1995 -] LY100,YY100 |
90386-13192 |
from US $1.74 |
||
|
33705F
|
33705F
33705-25151 Support Sub-Assy, Cross Shaft, No.1 (For Floor Shift)CROSS SHAFT, NO.1 (FOR FLOOR SHIFT) [05.1995 -] LY100,YY100..LHD |
33705-25151 |
US $42.22 |
||
|
33706F
|
33706F
33706-25031 Support Sub-Assy, Cross Shaft, No.2 (For Floor Shift)CROSS SHAFT, NO.2 (FOR FLOOR SHIFT) [05.1995 -] LY100,YY100..LHD |
33706-25031 |
US $78.62 |
||
|
33709F
|
33709F
33709-26041 Shaft Sub-Assy, Cross, No.1 (For Floor Shift)CROSS, NO.1 (FOR FLOOR SHIFT) [05.1995 -] LY100,YY100..LHD |
33709-26041 |
US $107.74 |
||
|
33709G
|
33709G
33772-26010 Bush (For Cross Shaft)[05.1995 -] LY100,YY100..LHD |
33772-26010 |
from US $1.25 |
||
|
33709J
|
33709J
33775-20020 Cover, Cross Shaft Dust (For Column Shift)[05.1995 -] LY100,YY100..LHD |
33775-20020 |
US $3.36 |
||
|
33720E
|
33720E
33720-25161 Rod Assy, Gear SelectingGEAR SELECTING [05.1995 -] LY100,YY100..LHD |
33720-25161 |
US $37.27 |
||
|
33727A
|
33727A
33727-25020 Insulator, Connecting Rod Bush Heat[05.1995 -] LY100 |
33727-25020 |
US $11.79 |
||
|
33736F
|
33736F
33790-26121 Rod, Gear Selecting, No.2(For Floor Shift)GEAR SELECTING, NO.2(FOR FLOOR SHIFT) [05.1995 -] LY100,YY100..LHD |
33790-26121 |
US $30.43 |
||
|
33737F
|
33737F
33701-25190 Rod, Gear Selecting, No.3 (For Column Shift)[05.1995 -] LY100,YY100 |
33701-25190 |
US $44.99 |
||
|
33740F
|
33740F
33740-26010 End Assy, Connecting Rod, No.1(For Column Shift)[05.1995 -] LY100,YY100 |
33740-26010 |
from US $13.44 |
||
|
33741J
|
33741J
90389-08005 Bushing(For Gear Selecting Rod)[05.1995 -] LY100,YY100 |
90389-08005 |
from US $2.24 |
||
|
33741P
|
33741P
90480-17177 Grommet (For Transmission Control Rod)[05.1995 -] LY100,YY100 |
90480-17177 |
from US $2.42 |
||
|
33742F
|
33742F
33742-25150 Rod, Gear Shifting, No.2(For Floor Shift)[05.1995 -] LY100..TW2 |
33742-25150 |
US $21.55 |
||
|
33742P
|
33742P
90240-08028 Pin, W/hole (For Column Shift Gear Selecting Rod)[05.1995 -] LY100,YY100 UPPER |
90240-08028 |
US $2.56 |
||
|
33742P
|
33742P
90240-08042 Pin, W/hole(For Gear Selecting Rod No.2)[05.1995 -] LY100,YY100 LOWER |
90240-08042 |
from US $1.95 |
||
|
33743D
|
33743D
33743-25130
Rod, Gear Shifting, No.3 (For Column Shift)
[05.1995 -] LY100,YY100 |
33743-25130 |
— | ||
|
33749F
|
33749F
33749-25020 Lever, Gear Shift, No.3 (For Floor Shift)[05.1995 -] LY100,YY100 |
33749-25020 |
US $29.99 |
||
|
33749G
|
33749G
90386-13192 Bush(For Over Center Plate)[05.1995 -] LY100,YY100 |
90386-13192 |
from US $1.74 |
||
|
33750F
|
33750F
33740-26010 End Assy, Connecting Rod, No.1(For Column Shift)[05.1995 -] LY100,YY100 |
33740-26010 |
from US $13.44 |
||
|
33770P
|
33770P
90387-09021 Coller (For Cross Shaft)[05.1995 -] LY100,YY100..LHD |
90387-09021 |
US $3.20 |
||
|
33772F
|
33772F
33772-25010
Bush, Cross Shaft Support, No.1 (For Floor Shift)
[05.1995 -] LY100,YY100 |
33772-25010 |
— | ||
|
33772G
|
33772G
96151-01600
Ring, Snap
[05.1995 -] LY100,YY100..LHD |
96151-01600 |
— | ||
|
33772H
|
33772H
33772-25020 Bush, Cross Shaft Support, No.2 (For Floor Shift)CROSS SHAFT SUPPORT, NO.2 (FOR FLOOR SHIFT) [05.1995 -] LY100,YY100..LHD |
33772-25020 |
US $10.48 |
||
|
33774A
|
33774A
33774-25010 Support, Cross Shaft, No.2[05.1995 -] LY100,YY100 |
33774-25010 |
US $18.05 |
||
|
33861
|
33861
33861-26020 Rod Assy, Gear Shifting, No.4[05.1995 -] LY100..TW2 |
33861-26020 |
US $16.60 |
||
|
9011908471
|
9011908471
90119-08471
New Genuine Part
|
90119-08471 |
— | ||
| replacement | |||||
|
9011908471
|
9011908471
90119-08806 BOLT WWASHER |
90119-08806 |
US $3.20 |
||
|
9017908141
|
9017908141
90179-08141
Nut (For Transmission Control Cable)
|
90179-08141 |
— | ||
| replacement | |||||
|
9017908141
|
9017908141
90179-08038 Nut |
90179-08038 |
from US $0.80 |
||
|
9020608016
|
9020608016
90206-08016 Washer, Wave (For Low Speed Connecting Rod) |
90206-08016 |
US $3.04 |
||
|
9020613003
|
9020613003
90206-13003 Washer, Wave (For Power Take-Off Shift Lever) |
90206-13003 |
US $1.60 |
||
|
9024008068
|
9024008068
90240-08068 Pin, W/hose (For Gear Selecting Rod No.3) |
90240-08068 |
US $4.22 |
||
|
9046803011
|
9046803011
90468-03011
CLIP
|
90468-03011 |
— | ||
|
9046814004
|
9046814004
90468-14004 Union, Auxiliary Fuel Band |
90468-14004 |
from US $0.70 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9165160610
|
9165160610
91651-60610
BOLT
|
91651-60610 |
— | ||
| replacement | |||||
|
9165160610
|
9165160610
91651-B0610 BOLTWWASHER |
91651-B0610 |
from US $1.92 |
||
|
9165160820
|
9165160820
91651-60820
Bolt, Radiator Side Support Plate
|
91651-60820 |
— | ||
| replacement | |||||
|
9165160820
|
9165160820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.07 |
||
|
9165160830
|
9165160830
91651-60830 Bolt (For Transfer Power Take-Off Cover) |
91651-60830 |
US $1.44 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.44 |
||
|
9413060800
|
9413060800
94130-60800 Nut(For Clutch Pedal Stopper) |
94130-60800 |
from US $0.72 |
||
| replacement | |||||
|
9413060800
|
9413060800
90170-A0003 New Genuine Part |
90170-A0003 |
US $2.22 |
||
|
9453100800
|
9453100800
94531-00800 Washer (For Transfer Shift Outer Lever) |
94531-00800 |
from US $1.93 |
||
|
9461310800
|
9461310800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.68 |
||
|
9461311400
|
9461311400
94613-11400 Washer, Plate (For Center Support Bearing Housing) |
94613-11400 |
US $0.73 |
||
