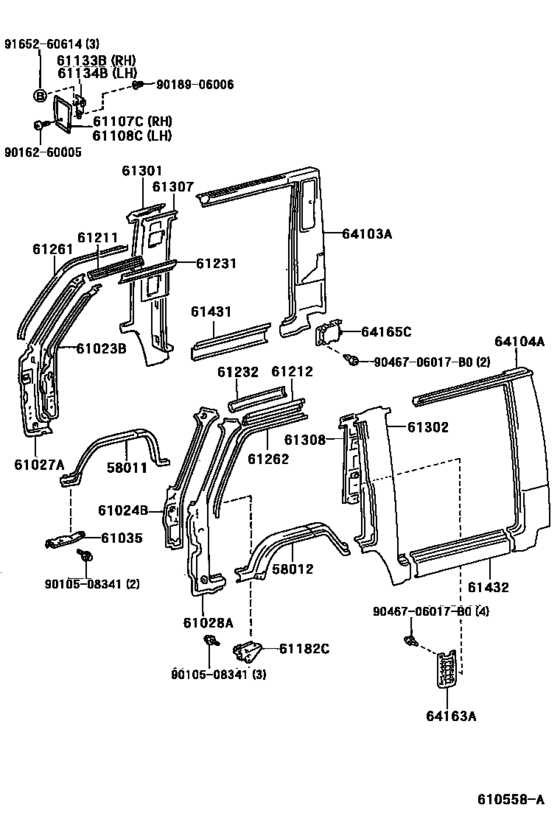

Side Member ([05.1995 - ] (9505- )TW2) Diagram Toyota DYNA 100
- Year
- 1995 - 2001
- Sales region
- General
- Frame
- LY100
- ENGINE
- 2L
- DESTINATION
- EUR
- Model
- DYNA 100
- From
- 05.1995
- To
- 08.2001
- Vehicle Model
- Dyna 100
- Deck,cab
- TW2
- Driver's Position
- LHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58011
|
58011
58011-37030 Panel Sub-Assy, Front Floor Side, Rh[05.1995 -] LY100..TW2 |
58011-37030 |
US $235.87 |
||
|
58012
|
58012
58012-37040 Panel Sub-Assy, Front Floor Side, Lh[05.1995 -] LY100..TW2 |
58012-37040 |
US $235.87 |
||
|
61023B
|
61023B
61023-37030 Pillar Sub-Assy, Front Body, Inner RhFRONT BODY, INNER RH [05.1995 - 08.1997] LY100,YY100..LHD |
61023-37030 |
US $311.58 |
||
| replacements | |||||
|
61023B
|
61023B
91641-80818 BOLT WWASHER[05.1995 - 08.1997] LY100,YY100..LHD |
91641-80818 |
from US $0.82 |
||
|
61023B
|
61023B
61023-37031 Pillar Sub-Assy, Front Body, Inner RhFRONT BODY, INNER RH [05.1995 - 08.1997] LY100,YY100..LHD |
61023-37031 |
US $313.04 |
||
|
61023B
|
61023B
61035-37011 Bracket Sub-Assy, Instrument Panel To Cowl Side, RhINSTRUMENT PANEL TO COWL SIDE, RH [05.1995 - 08.1997] LY100,YY100..LHD |
61035-37011 |
US $22.13 |
||
|
61023B
|
61023B
61035-37021 Bracket Sub-Assy, Instrument Panel To Cowl Side, RhINSTRUMENT PANEL TO COWL SIDE, RH [05.1995 - 08.1997] LY100,YY100..LHD |
61035-37021 |
US $22.86 |
||
|
61023B
|
61023B
61023-37031 Pillar Sub-Assy, Front Body, Inner RhFRONT BODY, INNER RH [08.1997 -] LY100,YY100..LHD |
61023-37031 |
US $313.04 |
||
|
61024B
|
61024B
61024-37050 Pillar Sub-Assy, Front Body, Inner LhFRONT BODY, INNER LH [05.1995 - 08.1997] LY100,YY100..LHD |
61024-37050 |
US $311.58 |
||
| replacements | |||||
|
61024B
|
61024B
91641-80818 BOLT WWASHER[05.1995 - 08.1997] LY100,YY100..LHD |
91641-80818 |
from US $0.82 |
||
|
61024B
|
61024B
61024-37051 Pillar Sub-Assy, Front Body, Inner LhFRONT BODY, INNER LH [05.1995 - 08.1997] LY100,YY100..LHD |
61024-37051 |
US $313.04 |
||
|
61024B
|
61024B
61182-37021 Bracket, Instrument Side, LhINSTRUMENT SIDE, LH [05.1995 - 08.1997] LY100,YY100..LHD |
61182-37021 |
US $20.82 |
||
|
61024B
|
61024B
61024-37051 Pillar Sub-Assy, Front Body, Inner LhFRONT BODY, INNER LH [08.1997 -] LY100,YY100..LHD |
61024-37051 |
US $313.04 |
||
|
61027A
|
61027A
61027-37021 Pillar Sub-Assy, Front Body, Outer Rh[05.1995 - 08.1997] LY100,YY100 |
61027-37021 |
US $566.38 |
||
|
61028A
|
61028A
61028-37031 Pillar Sub-Assy, Front Body, Outer Lh[05.1995 -] LY100,YY100 |
61028-37031 |
US $566.38 |
||
|
61028A
|
61028A
61028-37041 Pillar Sub-Assy, Front Body, Outer Lh[05.1995 -] LY100,YY100..LHD W(RADIO) |
61028-37041 |
US $566.38 |
||
|
61035
|
61035
61035-37010 Bracket Sub-Assy, Instrument Panel To Cowl Side, RhINSTRUMENT PANEL TO COWL SIDE, RH [05.1995 - 08.1997] LY100,YY100..LHD |
61035-37010 |
US $22.13 |
||
|
61035
|
61035
61035-37011 Bracket Sub-Assy, Instrument Panel To Cowl Side, RhINSTRUMENT PANEL TO COWL SIDE, RH [08.1997 -] LY100,YY100..LHD |
61035-37011 |
US $22.13 |
||
|
61107C
|
61107C
61107-37010 Cover Sub-Assy, Front Pillar Door Hinge, Rh[05.1995 -] LY100..LHD..EUR;LY100,YY100..RHD |
61107-37010 |
US $37.13 |
||
|
61108C
|
61108C
61108-37020 Cover Sub-Assy, Front Pillar Door Hinge, LhFRONT PILLAR DOOR HINGE, LH [05.1995 -] YY100;LY100..EUR;LY100..LHD..GEN |
61108-37020 |
US $37.13 |
||
|
61133B
|
61133B
61133-37010 Bracket, Front Body Pillar ,outer Rh[05.1995 -] LY100..LHD..EUR;LY100,YY100..RHD |
61133-37010 |
US $11.79 |
||
|
61134B
|
61134B
61134-37010 Bracket, Front Body Pillar Outer, LhFRONT BODY PILLAR OUTER, LH [05.1995 -] YY100;LY100..EUR;LY100..LHD..GEN |
61134-37010 |
US $11.79 |
||
|
61182C
|
61182C
61182-37020 Bracket, Instrument Side, LhINSTRUMENT SIDE, LH [05.1995 - 08.1997] LY100,YY100..LHD |
61182-37020 |
US $20.82 |
||
|
61182C
|
61182C
61182-37021 Bracket, Instrument Side, LhINSTRUMENT SIDE, LH [08.1997 -] LY100,YY100..LHD |
61182-37021 |
US $20.82 |
||
|
61211
|
61211
61211-95404 Rail, Roof Side, Outer Rh[05.1995 -] LY100..TW2 |
61211-95404 |
US $41.79 |
||
|
61212
|
61212
61212-95404 Rail, Roof Side, Outer Lh[05.1995 -] LY100..TW2 |
61212-95404 |
US $41.79 |
||
|
61231
|
61231
61203-95400 Rail, Roof Side, Inner RhROOF SIDE, INNER RH [05.1995 -] LY100..TW2 |
61203-95400 |
US $59.55 |
||
|
61232
|
61232
61204-95401 Rail, Roof Side, Inner LhROOF SIDE, INNER LH [05.1995 -] LY100..TW2 |
61204-95401 |
US $59.55 |
||
|
61261
|
61261
61261-37020
Channel, Roof Drip, Rh
[05.1995 -] LY100,YY100 |
61261-37020 |
— | ||
|
61262
|
61262
61262-37020 Channel, Roof Drip, Lh[05.1995 -] LY100,YY100 |
61262-37020 |
US $43.27 |
||
|
61301
|
61301
61301-95A08 Pillar Sub-Assy, Center Body, Rh[05.1995 -] LY100..TW2 |
61301-95A08 |
US $448.45 |
||
| replacement | |||||
|
61301
|
61301
61301-25010 Pillar Sub-Assy, Center Body, RhCENTER BODY, RH [05.1995 -] LY100..TW2 |
61301-25010 |
US $448.45 |
||
|
61302
|
61302
61302-95A12 Pillar Sub-Assy, Center Body, Lh[05.1995 -] LY100..TW2 |
61302-95A12 |
US $448.45 |
||
| replacement | |||||
|
61302
|
61302
61302-25010 Pillar Sub-Assy, Center Body, LhCENTER BODY, LH [05.1995 -] LY100..TW2 |
61302-25010 |
US $448.45 |
||
|
61307
|
61307
61307-37020 Pillar Sub-Assy, Center Body, Inner Rh[05.1995 -] LY100..TW2 |
61307-37020 |
US $158.70 |
||
|
61308
|
61308
61308-37020 Pillar Sub-Assy, Center Body, Inner Lh[05.1995 -] LY100..TW2 |
61308-37020 |
US $158.70 |
||
|
61308
|
61308
61308-37030 Pillar Sub-Assy, Center Body, Inner Lh[05.1995 -] LY100..TW2 W(REAR HEATER) |
61308-37030 |
US $158.70 |
||
|
61431
|
61431
61431-95401 Panel, Rocker, Outer Rear Rh[05.1995 -] LY100..TW2 |
61431-95401 |
US $45.57 |
||
|
61432
|
61432
61431-95401 Panel, Rocker, Outer Rear Rh[05.1995 -] LY100..TW2 |
61431-95401 |
US $45.57 |
||
|
64103A
|
64103A
64103-25020 Panel Sub-Assy, Back Corner, Outer RhBACK CORNER, OUTER RH [05.1995 -] LY100..TW2 |
64103-25020 |
US $623.17 |
||
|
64104A
|
64104A
64104-25020 Panel Sub-Assy, Back Corner, Outer LhBACK CORNER, OUTER LH [05.1995 -] LY100..TW2 |
64104-25020 |
US $623.17 |
||
|
64163A
|
64163A
64163-37020-B0 Cover, Back Corner, Inner[05.1995 -] LY100,YY100..ARL,EUR BLUISH GRAY,TRIM1# |
64163-37020-B0 |
US $28.25 |
||
|
64165C
|
64165C
64165-37010-B0 Cover, Back Corner, Inner Rear[05.1995 -] LY100..TW2 GRAY,TRIM1# |
64165-37010-B0 |
US $10.63 |
||
|
9010508341
|
9010508341
90105-08341 BOLT WASHER BASED |
90105-08341 |
US $2.08 |
||
|
9016260005
|
9016260005
90162-60005 SCREW |
90162-60005 |
US $1.89 |
||
|
9018906006
|
9018906006
90189-06006 Grommet |
90189-06006 |
from US $0.99 |
||
|
9046706017B0
|
9046706017B0
90467-06017-B0 Clip, Rear Floor Mat Set |
90467-06017-B0 |
US $1.92 |
||
|
9165260614
|
9165260614
91652-60614 New Genuine Part |
91652-60614 |
US $1.60 |
||
