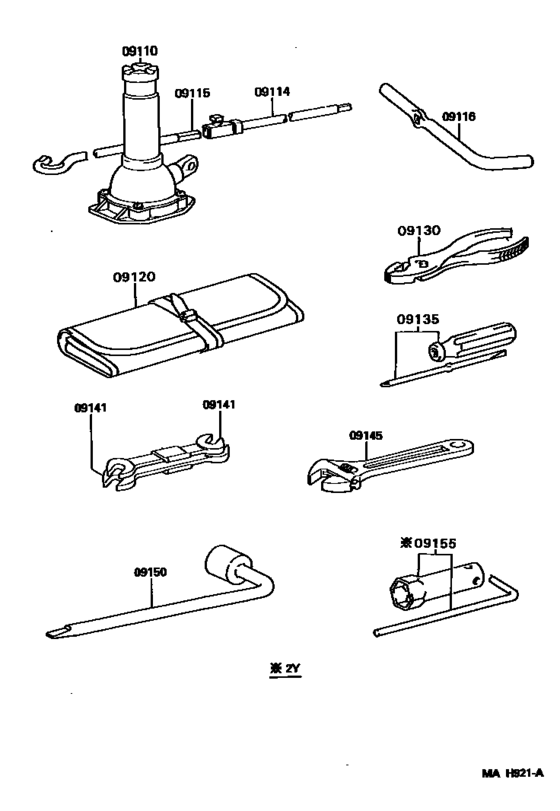

Standard Tool ([05.1995 - ] (9505- )) Diagram Toyota DYNA 100
- Year
- 1995 - 2001
- Sales region
- General
- Frame
- LY100
- ENGINE
- 2L
- DESTINATION
- EUR
- Model
- DYNA 100
- From
- 05.1995
- To
- 08.2001
- Vehicle Model
- Dyna 100
- Deck,cab
- TW2
- Driver's Position
- LHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
09110
|
09110
09110-25100 Jack Assy[05.1995 - 10.1996] LY100,YY100..EUR,GEN |
09110-25100 |
US $80.08 |
||
| replacement | |||||
|
09110
|
09110
09111-25082 Jack Assy[05.1995 - 10.1996] LY100,YY100..EUR,GEN |
09111-25082 |
US $80.08 |
||
|
09110
|
09110
09110-25101 Jack Assy[10.1996 - 01.1999] LY100,YY100 |
09110-25101 |
US $80.08 |
||
| replacement | |||||
|
09110
|
09110
09111-25082 Jack Assy[10.1996 - 01.1999] LY100,YY100 |
09111-25082 |
US $80.08 |
||
|
09110
|
09110
09111-25082 Jack Assy[01.1999 -] LY100,YY100 |
09111-25082 |
US $80.08 |
||
|
09114
|
09114
09114-28010 Extension Sub-Assy, Jack Handle[05.1995 -] LY100,YY100 |
09114-28010 |
from US $7.20 |
||
|
09115
|
09115
09115-35070 Rod Sub-Assy, Jack Handle[05.1995 -] LY100,YY100 |
09115-35070 |
US $16.42 |
||
|
09116
|
09116
09116-35041 Lever, Jack Handle[05.1995 -] LY100,YY100 |
09116-35041 |
from US $8 |
||
|
09120
|
09120
09120-26021
Bag, Tool
[05.1995 -] LY100,YY100 |
09120-26021 |
— | ||
| replacement | |||||
|
09120
|
09120
09120-35170 Bag, Tool (Black)[05.1995 -] LY100,YY100 |
09120-35170 |
US $13.12 |
||
|
09130
|
09130
99913-11500 Pliers (China)No Toyota stamp [05.1995 -] LY100,YY100 |
99913-11500 |
from US $6.40 |
||
|
09135
|
09135
99915-10700 Driver, ScrewNo Toyota stamp [05.1995 -] LY100,YY100 |
99915-10700 |
US $7.36 |
||
| replacement | |||||
|
09135
|
09135
90089-99009 Driver, Screw (ATC) (Thailand)Screw Driver (ATC) [05.1995 -] LY100,YY100 |
90089-99009 |
US $7.69 |
||
|
09141
|
09141
99914-10810 Spanner (China)No Toyota stamp [05.1995 -] LY100,YY100 8 X 10 |
99914-10810 |
from US $3.84 |
||
| replacement | |||||
|
09141
|
09141
09141-0K030 Spanner (ATC) (Thailand)8x10 [05.1995 -] LY100,YY100 8 X 10 |
09141-0K030 |
US $6.99 |
||
|
09141
|
09141
99914-11214 Spanner (China)No Toyota stamp [05.1995 -] LY100,YY100 12 X 14 |
99914-11214 |
from US $6.40 |
||
| replacement | |||||
|
09141
|
09141
09141-0K040 Spanner (Thailand)[05.1995 -] LY100,YY100 12 X 14 |
09141-0K040 |
US $10.48 |
||
|
09145
|
09145
99911-11200 Monkey Wrench (China) No Toyota Stamp[05.1995 -] LY100,YY100 |
99911-11200 |
US $31.92 |
||
|
09150
|
09150
09150-26030 Wrench, Hub Nut Box[05.1995 -] LY100,YY100 |
09150-26030 |
US $16.72 |
||
