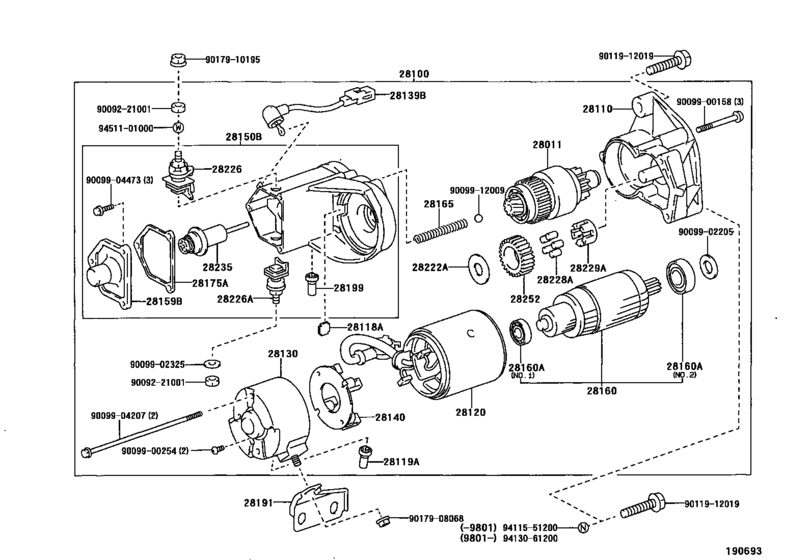

Starter ([05.1995 - ] 12V 2.7KW (9505- )) Diagram Toyota DYNA 100
- Year
- 1995 - 2001
- Sales region
- General
- Frame
- LY100
- ENGINE
- 2L
- DESTINATION
- EUR
- Model
- DYNA 100
- From
- 05.1995
- To
- 08.2001
- Vehicle Model
- Dyna 100
- Deck,cab
- TW2
- Driver's Position
- LHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-54010 Clutch Sub-Assy, Starter[05.1995 -] 2L..LY100..EUR W(80D26R BATTERY X2) |
28011-54010 |
from US $200.05 |
||
|
28011
|
28011
28011-54380 Clutch Sub-Assy, Starter[05.1995 -] 2L..LY100 |
28011-54380 |
US $363.42 |
||
|
28100
|
28100
28100-54320
Starter Assy
[05.1995 - 03.1999] 2L..LY100..EUR 12V 2.7KW,W(80D26R BATTERY X2) |
28100-54320 |
— | ||
|
28100
|
28100
28100-54340 Starter Assy[03.1999 -] 2L..LY100 12V 2.0KW |
28100-54340 |
US $1,820 |
||
|
28100
|
28100
28100-54380 Starter Assy[05.1995 - 03.1999] 2L..LY100 12V 2.0KW |
28100-54380 |
from US $859.07 |
||
|
28100
|
28100
28100-54470
Starter Assy
[03.1999 -] 2L..LY100..EUR 12V 2.7KW,W(BATTERY X 2) |
28100-54470 |
— | ||
| replacement | |||||
|
28100
|
28100
28100-54481 Starter Assy[03.1999 -] 2L..LY100..EUR 12V 2.7KW,W(BATTERY X 2) |
28100-54481 |
US $1,348.26 |
||
|
28110
|
28110
28110-54380 Housing Assy, Starter Drive[05.1995 -] 2L..LY100 |
28110-54380 |
US $90.27 |
||
|
28110
|
28110
28115-54011
Housing Assy, Starter Drive
[05.1995 -] 2L..LY100..EUR W(80D26R BATTERY X2) |
28115-54011 |
— | ||
|
28118A
|
28118A
28118-77090
Plate(For Starter Yoke)
[05.1995 -] 2L..LY100..EUR |
28118-77090 |
— | ||
|
28119A
|
28119A
28199-46080 Cover, Starter End Frame[05.1995 -] 2L..LY100..EUR W(80D26R BATTERY X2) |
28199-46080 |
from US $2.97 |
||
|
28119A
|
28119A
28199-74110 Cover, Starter End Frame[05.1995 -] 2L..LY100 |
28199-74110 |
US $2.97 |
||
|
28120
|
28120
28120-54380 Yoke Assy, Starter[05.1995 -] 2L..LY100 |
28120-54380 |
US $177.24 |
||
|
28120
|
28120
28120-56081
Yoke Assy, Starter
[05.1995 -] 2L..LY100..EUR W(80D26R BATTERY X2) |
28120-56081 |
— | ||
|
28130
|
28130
28130-54380
Frame Assy, Starter Commutator End
[05.1995 -] 2L..LY100 |
28130-54380 |
— | ||
|
28130
|
28130
28130-54430
Frame Assy, Starter Commutator End
[05.1995 -] 2L..LY100..EUR W(80D26R BATTERY X2) |
28130-54430 |
— | ||
|
28139B
|
28139B
28139-54251
Wire, Lead, No.1(For Starter)
[05.1995 -] 2L..LY100..EUR W(80D26R BATTERY X2) |
28139-54251 |
— | ||
| replacement | |||||
|
28139B
|
28139B
28139-56290
Wire, Lead, No.1(For Starter)
[05.1995 -] 2L..LY100..EUR W(80D26R BATTERY X2) |
28139-56290 |
— | ||
|
28139B
|
28139B
28139-54380
Wire, Lead, No.1(For Starter)
[05.1995 -] 2L..LY100 |
28139-54380 |
— | ||
|
28140
|
28140
28140-54380 Holder Assy, Starter Brush[05.1995 -] 2L..LY100 |
28140-54380 |
from US $53.46 |
||
|
28140
|
28140
28140-77090 Holder Assy, Starter Brush[05.1995 -] 2L..LY100..EUR W(80D26R BATTERY X2) |
28140-77090 |
from US $60.98 |
||
|
28150B
|
28150B
28150-54320 Switch Assy, Magnet Starter[05.1995 - 03.1999] 2L..LY100..EUR W(80D26R BATTERY X2) |
28150-54320 |
US $336.34 |
||
|
28150B
|
28150B
28150-54340 Switch Assy, Magnet Starter[03.1999 -] 2L..LY100 |
28150-54340 |
US $285.38 |
||
|
28150B
|
28150B
28150-54380 Switch Assy, Magnet Starter[05.1995 - 03.1999] 2L..LY100 |
28150-54380 |
from US $203.70 |
||
|
28150B
|
28150B
28150-54430 Switch Assy, Magnet Starter[03.1999 -] 2L..LY100..EUR W(80D26R BATTERY X2) |
28150-54430 |
US $211.12 |
||
|
28159B
|
28159B
28159-54380
Cover, Magnet Switch
[05.1995 -] 2L..LY100 |
28159-54380 |
— | ||
|
28159B
|
28159B
28159-56310
Cover, Magnet Switch
[05.1995 -] 2L..LY100..EUR W(80D26R BATTERY X2) |
28159-56310 |
— | ||
|
28160
|
28160
28160-54140 Armature Assy, Starter[05.1995 -] 2L..LY100..EUR W(80D26R BATTERY X2) |
28160-54140 |
from US $176.01 |
||
|
28160
|
28160
28160-54380 Armature Assy, Starter[05.1995 -] 2L..LY100 |
28160-54380 |
US $149.55 |
||
|
28160A
|
28160A
90099-10107 Bearing, Starter Armature[05.1995 -] 2L..LY100..EUR W(80D26R BATTERY X2),NO.1 |
90099-10107 |
from US $5.24 |
||
|
28160A
|
28160A
90099-10119 Bearing, Starter Armature[05.1995 -] 2L..LY100..EUR W(80D26R BATTERY X2),NO.2 |
90099-10119 |
from US $7.34 |
||
|
28160A
|
28160A
90099-10197 Bearing, Starter Armature[05.1995 -] 2L..LY100 NO.2 |
90099-10197 |
from US $7.34 |
||
|
28160A
|
28160A
90099-10208 Bearing, Starter Armature[05.1995 -] 2L..LY100 NO.1 |
90099-10208 |
US $15.95 |
||
|
28165
|
28165
28165-76070
Spring, Starter Magnet Switch Return
[05.1995 -] 2L..LY100 |
28165-76070 |
— | ||
|
28165
|
28165
28165-77090
Spring, Starter Magnet Switch Return
[05.1995 -] 2L..LY100..EUR W(80D26R BATTERY X2) |
28165-77090 |
— | ||
|
28175A
|
28175A
28175-54380 Gasket, Magnet Switch Cover[05.1995 -] 2L..LY100 |
28175-54380 |
US $1.67 |
||
|
28175A
|
28175A
28175-56310 Gasket, Magnet Switch Cover[05.1995 -] 2L..LY100..EUR W(80D26R BATTERY X2) |
28175-56310 |
from US $1.92 |
||
|
28191
|
28191
28191-54010 Stay, Starter[05.1995 -] 2L..LY100..EUR |
28191-54010 |
US $16.31 |
||
|
28199
|
28199
28199-54190 Cover, Starter End Frame[05.1995 -] 2L..LY100..EUR |
28199-54190 |
US $1.92 |
||
|
28222A
|
28222A
28222-77090
Washer, Starter Idle Gear Clutch
[05.1995 -] 2L..LY100..EUR |
28222-77090 |
— | ||
|
28226
|
28226
28226-17030
Starter Kit, Battery Terminal
[01.2001 -] 2L..LY100..EUR W(80D26R BATTERY X2) |
28226-17030 |
— | ||
| replacement | |||||
|
28226
|
28226
28226-54320 Starter Kit, Battery Terminal[01.2001 -] 2L..LY100..EUR W(80D26R BATTERY X2) |
28226-54320 |
from US $11.56 |
||
|
28226
|
28226
28226-54320 Starter Kit, Battery Terminal[05.1995 - 01.2001] 2L..LY100..EUR W(80D26R BATTERY X2) |
28226-54320 |
from US $11.56 |
||
|
28226
|
28226
28226-54340 Starter Kit, Battery Terminal[03.1999 -] 2L..LY100 |
28226-54340 |
from US $5.95 |
||
|
28226
|
28226
28226-54380
Starter Kit, Battery Terminal
[05.1995 - 03.1999] 2L..LY100 |
28226-54380 |
— | ||
| replacement | |||||
|
28226
|
28226
28226-54340 Starter Kit, Battery Terminal[05.1995 - 03.1999] 2L..LY100 |
28226-54340 |
from US $5.95 |
||
|
28226A
|
28226A
28226-54220 Starter Kit, Motor Terminal[05.1995 -] 2L..LY100..EUR W(80D26R BATTERY X2) |
28226-54220 |
from US $12.44 |
||
|
28226A
|
28226A
28226-72010 Starter Kit, Motor Terminal[05.1995 -] 2L,2Y..LY100,YY100 |
28226-72010 |
from US $10.49 |
||
|
28228A
|
28228A
28228-26040
Roller, Starter Idle Gear Clutch
[05.1995 -] 2L,2Y..LY100,YY100 |
28228-26040 |
— | ||
|
28228A
|
28228A
28228-56080
Roller, Starter Idle Gear Clutch
[05.1995 -] 2L..LY100..EUR W(80D26R BATTERY X2) |
28228-56080 |
— | ||
|
28229A
|
28229A
28229-56080
Retainer, Starter Idle Gear
[05.1995 -] 2L..LY100..EUR W(80D26R BATTERY X2) |
28229-56080 |
— | ||
|
28229A
|
28229A
28229-74070 Retainer, Starter Idle Gear[05.1995 -] 2L..LY100 |
28229-74070 |
US $1.50 |
||
|
28235
|
28235
28235-17030 Plunger, Magnet Switch[05.1995 -] 2L..LY100..EUR W(80D26R BATTERY X2) |
28235-17030 |
from US $25.68 |
||
|
28235
|
28235
28235-54380 Plunger, Magnet Switch[05.1995 -] 2L..LY100 |
28235-54380 |
from US $22.05 |
||
|
28252
|
28252
28254-64130
Pinion, Starter Drive
[05.1995 -] 2L..LY100 |
28254-64130 |
— | ||
|
28252
|
28252
28254-77090
Pinion, Starter Drive
[05.1995 -] 2L..LY100..EUR W(80D26R BATTERY X2) |
28254-77090 |
— | ||
|
9009221001
|
9009221001
90092-21001 NUT |
90092-21001 |
US $1.46 |
||
|
9009900158
|
9009900158
90099-00158
SCREW
|
90099-00158 |
— | ||
|
9009900254
|
9009900254
90099-00254
New Genuine Part
|
90099-00254 |
— | ||
|
9009902205
|
9009902205
90099-02205
Washer, Felt, Starter
|
90099-02205 |
— | ||
|
9009902325
|
9009902325
90099-02325 WASHER |
90099-02325 |
from US $0.29 |
||
|
9009904207
|
9009904207
90099-04207
New Genuine Part
|
90099-04207 |
— | ||
|
9009904473
|
9009904473
90099-04473
New Genuine Part
|
90099-04473 |
— | ||
|
9009912009
|
9009912009
90099-12009
Ball, Starter Clutch
|
90099-12009 |
— | ||
|
9011912019
|
9011912019
90119-12019 Bolt(For Transaxle & Engine Setting) |
90119-12019 |
US $2.80 |
||
|
9017908068
|
9017908068
90179-08068 NUT |
90179-08068 |
from US $0.74 |
||
|
9017910195
|
9017910195
90179-10195 NUT WWASHER |
90179-10195 |
US $1.76 |
||
|
9411551200
|
9411551200
94115-51200 Nut(For Backing Plate To Steering Knuckle Setting) |
94115-51200 |
US $2.72 |
||
|
9413061200
|
9413061200
94130-61200 Nut |
94130-61200 |
from US $0.99 |
||
|
9451101000
|
9451101000
94511-01000 Washer(For Rear Drive Shaft) |
94511-01000 |
US $1.76 |
||
