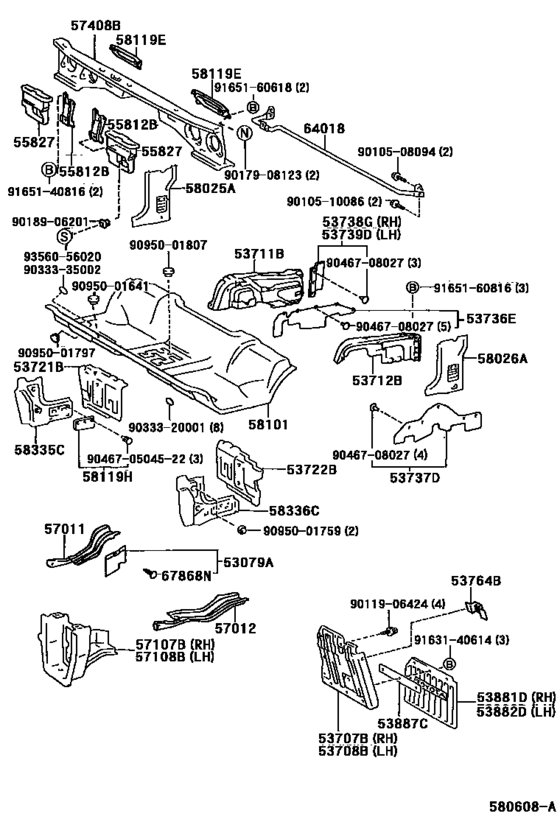

Front Floor Panel & Front Floor Member ([05.1995 - ] (9505- )T3) Diagram Toyota DYNA 100
- Year
- 1997 - 2001
- Sales region
- General
- Frame
- LY100
- ENGINE
- 2L
- DESTINATION
- GEN
- Model
- DYNA 100
- From
- 12.1997
- To
- 07.2001
- Vehicle Model
- Dyna 100
- Deck,cab
- T3
- Driver's Position
- LHD
- Building Condition
- IV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53079A
|
53079A
53079-25010 Seal Sub-Assy, Front Fender Apron, Lower[05.1995 -] LY100,YY100 |
53079-25010 |
US $13.69 |
||
|
53707B
|
53707B
53715-95A01 Apron Sub-Assy, Fender Side, Rh[05.1995 -] LY100,YY100..T3 |
53715-95A01 |
US $82.99 |
||
|
53708B
|
53708B
53716-25030 Apron Sub-Assy, Fender Side, LhFENDER SIDE, LH [12.1997 - 12.1998] LY100..LHD..GEN |
53716-25030 |
US $82.99 |
||
| replacement | |||||
|
53708B
|
53708B
53716-95A02 Apron Sub-Assy, Fender Side, Lh[12.1997 - 12.1998] LY100..LHD..GEN |
53716-95A02 |
US $82.99 |
||
|
53708B
|
53708B
53716-95A02 Apron Sub-Assy, Fender Side, Lh[12.1998 -] LY100,YY100..T3 |
53716-95A02 |
US $82.99 |
||
|
53711B
|
53711B
53711-25010 Apron, Front Fender, Front Rh[05.1995 -] LY100,YY100 |
53711-25010 |
US $82.05 |
||
|
53712B
|
53712B
53712-25010
Apron, Front Fender, Front Lh
[05.1995 -] LY100,YY100 |
53712-25010 |
— | ||
|
53721B
|
53721B
53721-37030
Apron Sub-Assy, Fender Side, Rh
[05.1995 -] LY100,YY100..LHD |
53721-37030 |
— | ||
|
53722B
|
53722B
53722-37010 Apron Sub-Assy, Fender Side, Lh[05.1995 -] LY100,YY100..LHD |
53722-37010 |
US $46.45 |
||
|
53736E
|
53736E
53736-25040 Seal, Front Fender Apron, Rh[08.1995 -] LY100,YY100 |
53736-25040 |
US $28.25 |
||
|
53737D
|
53737D
53737-25050 Seal, Front Fender Apron, Lh[08.1995 -] LY100,YY100 |
53737-25050 |
US $41.35 |
||
|
53739D
|
53739D
53739-25010 Seal, Front Fender Apron To Frame, Rear[05.1995 -] LY100 |
53739-25010 |
US $13.69 |
||
|
53764B
|
53764B
53764-25020 Bracket, Air Cleaner Inlet, No.3AIR CLEANER INLET, NO.3 [12.1997 -] LY100..LHD..GEN |
53764-25020 |
US $12.38 |
||
|
53881D
|
53881D
53881-25010 Mudguard, Front Rh[05.1995 -] LY100,YY100..T3 |
53881-25010 |
US $25.77 |
||
|
53882D
|
53882D
53881-25010 Mudguard, Front Rh[05.1995 -] LY100,YY100..T3 |
53881-25010 |
US $25.77 |
||
|
53887C
|
53887C
53887-95010 Plate, Mudguard Rubber Set, Front[05.1995 -] LY100,YY100..T3 |
53887-95010 |
US $8.59 |
||
|
55812B
|
55812B
55812-37010 Bracket, Radiator GrilleVENTILATOR DUCT [08.1997 -] LY100,YY100..GEN |
55812-37010 |
US $7.43 |
||
|
55827
|
55827
55827-37010 Duct, Ventilator Air GuideVENTILATOR AIR GUIDE [08.1997 -] LY100,YY100..GEN |
55827-37010 |
US $30.43 |
||
|
57011
|
57011
57011-25010 Member Sub-Assy, Floor, Rh[05.1995 -] LY100,YY100 |
57011-25010 |
US $122.30 |
||
| replacement | |||||
|
57011
|
57011
57011-25030 Member Sub-Assy, Floor, Rh[05.1995 -] LY100,YY100 |
57011-25030 |
US $123.76 |
||
|
57012
|
57012
57012-25010 Menber Sub-Assy[05.1995 -] LY100,YY100 |
57012-25010 |
US $122.30 |
||
| replacement | |||||
|
57012
|
57012
57012-25030 Menber Sub-Assy[05.1995 -] LY100,YY100 |
57012-25030 |
US $123.76 |
||
|
57107B
|
57107B
57107-25010 Bracket Sub-Assy, Cab Front Mounting, Rh[05.1995 -] LY100,YY100 |
57107-25010 |
US $77.17 |
||
|
57108B
|
57108B
57108-25010 Bracket Sub-Assy, Cab Front Mounting, Lh[05.1995 -] LY100,YY100 |
57108-25010 |
US $77.17 |
||
|
57408B
|
57408B
57408-25320 Member Sub-Assy, Front Floor CrossFRONT FLOOR CROSS [12.1997 -] LY100..LHD..GEN W/O(FRONT HEATER) |
57408-25320 |
US $393.12 |
||
| replacements | |||||
|
57408B
|
57408B
57408-25180 Member Sub-Assy, Front Floor CrossFRONT FLOOR CROSS [12.1997 -] LY100..LHD..GEN W/O(FRONT HEATER) |
57408-25180 |
US $393.12 |
||
|
57408B
|
57408B
90333-25001 Plug, Hole(For Hood)[12.1997 -] LY100..LHD..GEN W/O(FRONT HEATER) |
90333-25001 |
from US $1.41 |
||
|
57408B
|
57408B
57408-25330 Member Sub-Assy, Front Floor CrossFRONT FLOOR CROSS [12.1997 -] LY100..LHD..GEN W(FRONT HEATOR OR BOOSTVENTILATOR) |
57408-25330 |
US $393.12 |
||
| replacements | |||||
|
57408B
|
57408B
57408-25170 Member Sub-Assy, Front Floor CrossFRONT FLOOR CROSS [12.1997 -] LY100..LHD..GEN W(FRONT HEATOR OR BOOSTVENTILATOR) |
57408-25170 |
US $393.12 |
||
|
57408B
|
57408B
90333-25001 Plug, Hole(For Hood)[12.1997 -] LY100..LHD..GEN W(FRONT HEATOR OR BOOSTVENTILATOR) |
90333-25001 |
from US $1.41 |
||
|
58025A
|
58025A
58271-37011 Panel Sub-Assy, Floor Side Rail, Fr Rh[05.1995 -] LY100,YY100..T3 |
58271-37011 |
US $47.17 |
||
|
58026A
|
58026A
58272-37010 Panel Sub-Assy, Floor Side Rail, Fr Lh[05.1995 -] LY100,YY100..T3 |
58272-37010 |
US $47.17 |
||
|
58101
|
58101
58101-25024 Pan Sub-Assy, Front FloorFRONT FLOOR [08.1997 -] LY100,YY100..LHD |
58101-25024 |
US $612.98 |
||
| replacements | |||||
|
58101
|
58101
53724-95010 Bracket, Clamp(For Floor Panel)[08.1997 -] LY100,YY100..LHD |
53724-95010 |
US $3.20 |
||
|
58101
|
58101
58111-25024 Pan, Front Floor[08.1997 -] LY100,YY100..LHD |
58111-25024 |
US $556.19 |
||
|
58101
|
58101
58239-25010 Plate, Belt Anchor Nut[08.1997 -] LY100,YY100..LHD |
58239-25010 |
US $12.52 |
||
|
58101
|
58101
58249-95A00 Bracket, Cable Clamp, No.2[08.1997 -] LY100,YY100..LHD |
58249-95A00 |
US $10.48 |
||
|
58101
|
58101
58251-37011 Reinforcement, Front Seat, Front Rh[08.1997 -] LY100,YY100..LHD |
58251-37011 |
US $31.89 |
||
|
58101
|
58101
58252-37011 Brace, Floor Panel, Rear[08.1997 -] LY100,YY100..LHD |
58252-37011 |
US $31.89 |
||
|
58101
|
58101
58295-95A01 Footrest[08.1997 -] LY100,YY100..LHD |
58295-95A01 |
US $18.78 |
||
|
58101
|
58101
82715-95J04
Bracket, Wiring Harness Clamp
[08.1997 -] LY100,YY100..LHD |
82715-95J04 |
— | ||
|
58101
|
58101
90174-06002 New Genuine Part[08.1997 -] LY100,YY100..LHD |
90174-06002 |
US $1.12 |
||
|
58101
|
58101
90174-08008 New Genuine Part[08.1997 -] LY100,YY100..LHD |
90174-08008 |
US $1.93 |
||
|
58119E
|
58119E
50819-37020 Cover, Front Floor Side, FrontFRONT FLOOR SIDE, FRONT [08.1997 -] LY100,YY100..LHD..GEN |
50819-37020 |
US $24.17 |
||
|
58119H
|
58119H
58119-95400 Cover, Front Floor Side, Front[05.1995 -] LY100,YY100 |
58119-95400 |
US $8.30 |
||
|
58335C
|
58335C
58335-37010 Plate, Floor Side, Front Rh[05.1995 -] LY100,YY100 |
58335-37010 |
US $50.84 |
||
|
58336C
|
58336C
58336-37010 Plate, Floor Side, Front Lh[05.1995 -] LY100,YY100 |
58336-37010 |
US $52.27 |
||
|
67868N
|
67868N
67868-95401 Clip, Front Mudguard[05.1995 -] LY100,YY100 |
67868-95401 |
US $1.44 |
||
|
9010508094
|
9010508094
90105-08094 New Genuine Part |
90105-08094 |
US $1.46 |
||
|
9010510086
|
9010510086
90105-10086 Bolt, Hexagon(For Rear Caliper) |
90105-10086 |
US $3.06 |
||
|
9011906424
|
9011906424
90119-06424 New Genuine Part |
90119-06424 |
US $1.12 |
||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $0.98 |
||
|
9018906201
|
9018906201
90189-06201 New Genuine Part |
90189-06201 |
US $1.92 |
||
|
9033320001
|
9033320001
90333-20001 PLUG |
90333-20001 |
from US $1.12 |
||
|
9033335002
|
9033335002
90333-35002 Plug, Hole(For Rear Door Panel) |
90333-35002 |
US $1.28 |
||
|
9046708027
|
9046708027
90467-08027 Clip(For Hood Air Intake Duct Seal) |
90467-08027 |
US $2.56 |
||
|
9095001641
|
9095001641
90950-01641 New Genuine Part |
90950-01641 |
US $3.20 |
||
|
9095001759
|
9095001759
90950-01759 PLUG |
90950-01759 |
from US $1.92 |
||
|
9095001797
|
9095001797
90950-01797 New Genuine Part |
90950-01797 |
US $3.49 |
||
|
9095001807
|
9095001807
90950-01807 New Genuine Part |
90950-01807 |
US $2.33 |
||
|
9163140614
|
9163140614
91631-40614 БОЛТ BOLT |
91631-40614 |
US $1.28 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $1.03 |
||
|
9165160618
|
9165160618
91651-60618 Bolt(For Oil Receiver Pipe) |
91651-60618 |
US $1.44 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.07 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 Bolt |
90080-11396 |
US $3.72 |
||
|
9356056020
|
9356056020
93560-56020 SCREW |
93560-56020 |
US $2.24 |
||
|
904670504522
|
904670504522
90467-05045-22 Clip(For Front Fender Seal) |
90467-05045-22 |
US $1.44 |
||
