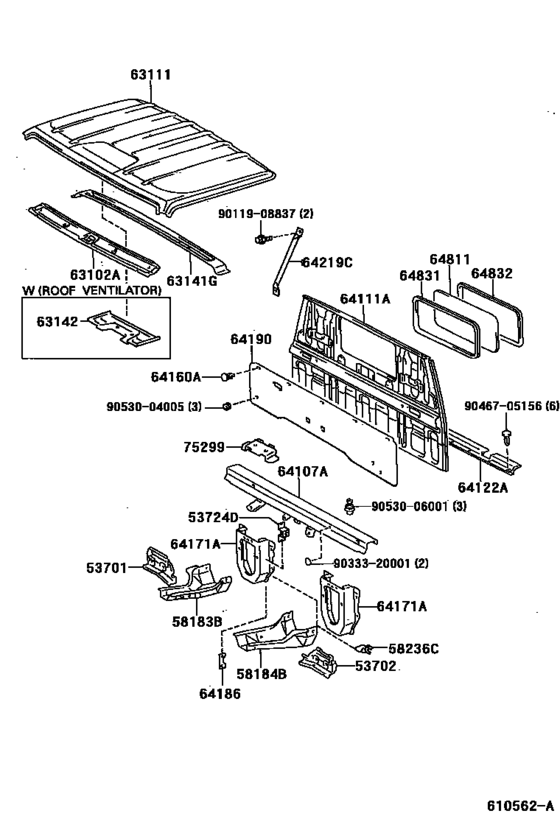

Roof Panel & Back Panel ([05.1995 - 05.2001] (9505-0105)T3) Diagram Toyota DYNA 100
- Year
- 1997 - 2001
- Sales region
- General
- Frame
- LY100
- ENGINE
- 2L
- DESTINATION
- GEN
- Model
- DYNA 100
- From
- 12.1997
- To
- 07.2001
- Vehicle Model
- Dyna 100
- Deck,cab
- T3
- Driver's Position
- LHD
- Building Condition
- IV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53701
|
53701
53717-25010
Apron Sub-Assy, Front Fender, Rh
[05.1995 -] LY100,YY100..T3 |
53717-25010 |
— | ||
|
53702
|
53702
53718-25010 Apron Sub-Assy, Front Fender, Lh[05.1995 -] LY100,YY100..T3 |
53718-25010 |
US $36.65 |
||
|
58183B
|
58183B
58102-25010 Reinforcement, Rear Mounting, Rh[05.1995 -] LY100,YY100 |
58102-25010 |
US $96.10 |
||
| replacement | |||||
|
58183B
|
58183B
58102-25020 Reinforcement, Rear Mounting, RhREAR MOUNTING, RH [05.1995 -] LY100,YY100 |
58102-25020 |
US $96.10 |
||
|
58184B
|
58184B
58103-25010 Reinforcement, Rear Mounting, Lh[05.1995 -] LY100,YY100 |
58103-25010 |
US $99.01 |
||
|
58236C
|
58236C
58236-25010 Bracket, Clutch Tube[05.1995 -] LY100,YY100..T3 |
58236-25010 |
US $11.50 |
||
|
63102A
|
63102A
63132-95418 Panel Sub-Assy, Windshield Header[05.1995 -] LY100,YY100 |
63132-95418 |
US $88.82 |
||
| replacement | |||||
|
63102A
|
63102A
63132-37010 Panel Sub-Assy, Windshield Header[05.1995 -] LY100,YY100 |
63132-37010 |
from US $85.66 |
||
|
63102A
|
63102A
63132-95420 Panel Sub-Assy, Windshield Header[05.1995 -] LY100,YY100 W(ROOF VENTILATOR) |
63132-95420 |
US $88.82 |
||
| replacement | |||||
|
63102A
|
63102A
63132-37010 Panel Sub-Assy, Windshield Header[05.1995 -] LY100,YY100 W(ROOF VENTILATOR) |
63132-37010 |
from US $85.66 |
||
|
63111
|
63111
63111-37010 Panel, Roof[05.1995 -] LY100,YY100..T3 |
63111-37010 |
US $417.87 |
||
|
63111
|
63111
63111-37020 Panel, Roof[05.1995 -] LY100,YY100..T3 W(ROOF VENTILATOR) |
63111-37020 |
US $417.87 |
||
|
63141G
|
63141G
63141-37010 Reinforcement, Roof Panel, No.1[05.1995 -] LY100,YY100..T3 |
63141-37010 |
from US $77.98 |
||
|
63142
|
63142
63142-95400 Reinforcement, Roof Panel, No.2[05.1995 -] LY100,YY100..T3 |
63142-95400 |
US $59.11 |
||
|
64107A
|
64107A
64107-25220 Frame Sub-Assy, BackBACK [12.1997 - 05.1998] LY100..LHD..GEN |
64107-25220 |
US $224.22 |
||
| replacements | |||||
|
64107A
|
64107A
64107-25221 Frame Sub-Assy, BackBACK [12.1997 - 05.1998] LY100..LHD..GEN |
64107-25221 |
US $224.22 |
||
|
64107A
|
64107A
90333-20001 PLUG[12.1997 - 05.1998] LY100..LHD..GEN |
90333-20001 |
from US $1.12 |
||
|
64107A
|
64107A
64107-25221 Frame Sub-Assy, BackBACK [05.1998 -] LY100..LHD..GEN |
64107-25221 |
US $224.22 |
||
|
64111A
|
64111A
64100-37311 Panel, BackBACK [06.1996 - 07.2000] LY100,YY100..LHD..T3 W(FRONT HEAD REST=PASSENGER SEAT) |
64100-37311 |
US $824.10 |
||
| replacements | |||||
|
64111A
|
64111A
63218-95400 Channel, Roof Drip, Rear[06.1996 - 07.2000] LY100,YY100..LHD..T3 W(FRONT HEAD REST=PASSENGER SEAT) |
63218-95400 |
US $30.87 |
||
|
64111A
|
64111A
64105-95A06 Reinforcement, Back, Upper[06.1996 - 07.2000] LY100,YY100..LHD..T3 W(FRONT HEAD REST=PASSENGER SEAT) |
64105-95A06 |
US $206.75 |
||
|
64111A
|
64111A
64111-37260 Panel, Upper BackUPPER BACK [06.1996 - 07.2000] LY100,YY100..LHD..T3 W(FRONT HEAD REST=PASSENGER SEAT) |
64111-37260 |
US $742.56 |
||
|
64111A
|
64111A
71962-95400 Bracket, Front Seat Headrest[06.1996 - 07.2000] LY100,YY100..LHD..T3 W(FRONT HEAD REST=PASSENGER SEAT) |
71962-95400 |
US $28.25 |
||
|
64111A
|
64111A
64100-37321 Panel, BackBACK [06.1996 - 07.2001] LY100,YY100..LHD..GEN |
64100-37321 |
US $824.10 |
||
| replacements | |||||
|
64111A
|
64111A
63218-95400 Channel, Roof Drip, Rear[06.1996 - 07.2001] LY100,YY100..LHD..GEN |
63218-95400 |
US $30.87 |
||
|
64111A
|
64111A
64105-95A06 Reinforcement, Back, Upper[06.1996 - 07.2001] LY100,YY100..LHD..GEN |
64105-95A06 |
US $206.75 |
||
|
64111A
|
64111A
64111-37260 Panel, Upper BackUPPER BACK [06.1996 - 07.2001] LY100,YY100..LHD..GEN |
64111-37260 |
US $742.56 |
||
|
64171A
|
64171A
64025-25011 Bracket Sub-Assy, Rear Mounting[05.1995 -] LY100,YY100..T3 |
64025-25011 |
US $104.83 |
||
|
64811
|
64811
64811-37020 Glass, Back Window[05.1995 - 05.1999] LY100,YY100..GEN *TEM,T=3.5,BRONZE |
64811-37020 |
US $91.73 |
||
|
64811
|
64811
64811-37070
Glass, Back Window
[10.1996 -] LY100,YY100..T3 *TEM,T=3.5,GREEN |
64811-37070 |
— | ||
|
64831
|
64831
64831-37050
Weatherstrip, Back Window Glass
[05.1999 -] LY100,YY100 |
64831-37050 |
— | ||
| replacement | |||||
|
64831
|
64831
64831-37051 Weatherstrip, Back Window Glass[05.1999 -] LY100,YY100 |
64831-37051 |
US $75.24 |
||
|
64831
|
64831
64831-95406 Weatherstrip, Back Window Glass[05.1995 - 05.1999] LY100,YY100 |
64831-95406 |
US $66.54 |
||
| replacement | |||||
|
64831
|
64831
64831-37051 Weatherstrip, Back Window Glass[05.1995 - 05.1999] LY100,YY100 |
64831-37051 |
US $75.24 |
||
|
64832
|
64832
64832-37040 Key, Back Window Weatherstrip[05.1999 -] LY100,YY100 |
64832-37040 |
US $11.36 |
||
|
64832
|
64832
64832-95013
Key, Back Window Weatherstrip
[05.1995 - 05.1999] LY100,YY100 |
64832-95013 |
— | ||
| replacement | |||||
|
64832
|
64832
64832-37040 Key, Back Window Weatherstrip[05.1995 - 05.1999] LY100,YY100 |
64832-37040 |
US $11.36 |
||
|
75299
|
75299
75209-25010 Base, Jack Holder[05.1995 -] LY100,YY100..T3 |
75209-25010 |
US $23.73 |
||
|
9011908837
|
9011908837
90119-08837 New Genuine Part |
90119-08837 |
US $1.60 |
||
|
9033320001
|
9033320001
90333-20001 PLUG |
90333-20001 |
from US $1.12 |
||
|
9046705156
|
9046705156
90467-05156 New Genuine Part |
90467-05156 |
US $1.44 |
||
|
9053004005
|
9053004005
90530-04005
Fastener, Pile
|
90530-04005 |
— | ||
|
9053006001
|
9053006001
90530-06001 Fastener, Hook |
90530-06001 |
US $1.76 |
||
