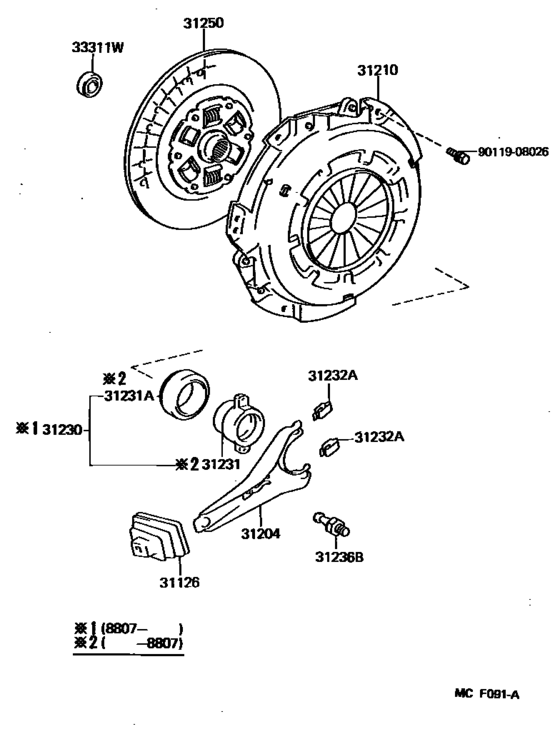

Clutch & Release Fork ([08.1987 - ] (8708- )YH81) Diagram Toyota DYNA 100
- Year
- 1987 - 1995
- Sales region
- Europe
- Frame
- YH81
- body
- T3
- ENGINE
- 2Y
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- DYNA 100
- From
- 08.1987
- To
- 05.1995
- Gear Shift Type
- 5F
- Vehicle Model
- Dyna 100
- Driver's Position
- RHD
- Building Condition
- IV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-20060 Boot, Clutch Release Fork[08.1987 - 05.1995] YH81 |
31126-20060 |
from US $15.02 |
||
|
31204
|
31204
31204-20071 Fork Sub-Assy, Clutch Release[08.1987 - 05.1995] YH81 |
31204-20071 |
from US $21.58 |
||
|
31210
|
31210
31210-14130 Cover Assy, Clutch[08.1987 - 08.1988] LH80,YH81..5F |
31210-14130 |
US $200.93 |
||
| replacement | |||||
|
31210
|
31210
31210-22101 Cover Assy, Clutch[08.1987 - 08.1988] LH80,YH81..5F |
31210-22101 |
from US $194.84 |
||
|
31210
|
31210
31210-35090
Cover Assy, Clutch
[08.1988 - 05.1995] LH80,YH81..5F |
31210-35090 |
— | ||
| replacement | |||||
|
31210
|
31210
31210-22101 Cover Assy, Clutch[08.1988 - 05.1995] LH80,YH81..5F |
31210-22101 |
from US $194.84 |
||
|
31230
|
31230
31230-35090
Bearing Assy, Clutch Release
[07.1988 - 05.1995] YH81 |
31230-35090 |
— | ||
| replacement | |||||
|
31230
|
31230
31230-35091 Bearing Assy, Clutch Release[07.1988 - 05.1995] YH81 |
31230-35091 |
from US $50.16 |
||
|
31231
|
31231
31231-36070 Hub, Clutch Release Bearing[08.1987 - 07.1988] YH81 |
31231-36070 |
from US $26.60 |
||
|
31231A
|
31231A
90363-40022 Bearing, Ball(For Clutch Release Hub)[08.1987 - 07.1988] LH80,YH81..5F |
90363-40022 |
US $41.80 |
||
|
31232A
|
31232A
31232-22010 Clip Or Spring, Release Bearing Hub[08.1987 - 07.1988] LH80,YH81..5F |
31232-22010 |
from US $0.82 |
||
|
31232A
|
31232A
31232-35020 Clip Or Spring, Release Bearing Hub[07.1988 - 05.1995] LH80,YH81..5F |
31232-35020 |
from US $2.62 |
||
|
31232A
|
31232A
31232-35040 Clip Or Spring, Release Bearing Hub[11.1989 - 05.1995] YH81 |
31232-35040 |
US $3.32 |
||
|
31236B
|
31236B
31236-30060 Ball, Release Fork[08.1987 - 05.1995] LH80,YH81..5F |
31236-30060 |
from US $10.24 |
||
|
31250
|
31250
31250-25122
Disc Assy, Clutch
[08.1987 - 05.1995] YH81 |
31250-25122 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-20242 Disc Assy, Clutch[08.1987 - 05.1995] YH81 |
31250-20242 |
from US $147.52 |
||
|
33311W
|
33311W
90363-12002
Bearing (For Input Shaft)
[08.1987 - 05.1995] LH80,YH81..5F |
90363-12002 |
— | ||
| replacement | |||||
|
33311W
|
33311W
90363-12024 Bearing, Radial Ball[08.1987 - 05.1995] LH80,YH81..5F |
90363-12024 |
from US $5.91 |
||
|
9011908026
|
9011908026
90119-08026
Bolt(For Transmission Input Damper Cover & Flywheel)
|
90119-08026 |
— | ||
| replacement | |||||
|
9011908026
|
9011908026
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.70 |
||
