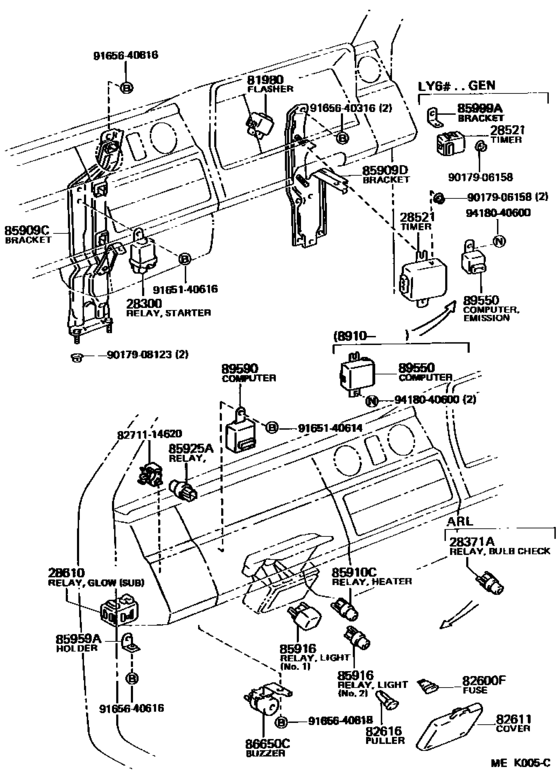

Switch & Relay & Computer ([08.1987 - ] (8708- )) Diagram Toyota DYNA 150/ TOYOACE G15
- Year
- 1988 - 1995
- Sales region
- General
- Frame
- LY61
- ENGINE
- 3L
- DESTINATION
- GEN
- Model
- DYNA 150
- From
- 08.1988
- To
- 05.1995
- Vehicle Model
- Dyna 150
- Deck,cab
- T3
- Driver's Position
- RHD
- Building Condition
- IV
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-48010 Relay Assy, Starter[08.1987 - 05.1995] 2L,3L..LY6# |
28300-48010 |
US $106.56 |
||
|
28521
|
28521
28521-54021
Timer, Preheating
[08.1987 - 06.1990] 2L,3L..LY6#..GEN |
28521-54021 |
— | ||
| replacement | |||||
|
28521
|
28521
28521-56010
Timer, Preheating
[08.1987 - 06.1990] 2L,3L..LY6#..GEN |
28521-56010 |
— | ||
|
28521
|
28521
28521-54240 Timer, PreheatingPREHEATING [06.1990 - 09.1991] 3L..LY61..GEN |
28521-54240 |
US $173.26 |
||
| replacement | |||||
|
28521
|
28521
28521-56010
Timer, Preheating
[06.1990 - 09.1991] 3L..LY61..GEN |
28521-56010 |
— | ||
|
28521
|
28521
28521-54340 Timer, Preheating[08.1988 - 10.1989] 3L..LY61..GEN..IV IRELAND SPEC |
28521-54340 |
US $631.90 |
||
| replacement | |||||
|
28521
|
28521
28521-54480
Timer, Preheating
[08.1988 - 10.1989] 3L..LY61..GEN..IV IRELAND SPEC |
28521-54480 |
— | ||
|
28521
|
28521
28521-54470 Timer, PreheatingPREHEATING [09.1991 - 05.1995] 3L..LY61..GEN |
28521-54470 |
US $171.81 |
||
|
28610
|
28610
28610-54021
Relay Assy, Glow Plug
[08.1987 - 05.1995] 2L..LY60..ARL SUB; 3L..LY61;2L..LY60..GEN |
28610-54021 |
— | ||
|
28610
|
28610
28610-64080
Relay Assy, Glow Plug
[08.1988 - 10.1989] 3L..LY61..GEN..IV IRELAND SPEC,MAIN |
28610-64080 |
— | ||
|
81980
|
81980
81980-16010 Flasher Assy, Turn Signal[08.1987 - 09.1991] LY6#,YY52,61 |
81980-16010 |
US $121.36 |
||
|
81980
|
81980
81980-37040 Flasher Assy, Turn Signal[09.1991 - 12.1991] LY61,YY61..RHD |
81980-37040 |
US $101.92 |
||
|
82600F
|
82600F
90982-09002 Fusible Link[08.1987 - 05.1995] LY6#,YY52,61 10A |
90982-09002 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[08.1987 - 05.1995] LY6#,YY52,61 15A |
90982-09003 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[08.1987 - 05.1995] LY6#,YY52,61 20A |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[08.1988 - 10.1989] LY61..GEN..IV 7.5A,IRELAND SPEC |
90982-09005 |
from US $1.09 |
||
|
82611
|
82611
82611-95013 Cover, Fuse Block[08.1988 - 05.1995] LY61,YY52,61 |
82611-95013 |
US $17.18 |
||
|
82616
|
82616
82616-12010 Lever, Fuse[08.1987 - 05.1995] LY6#,YY52,61 |
82616-12010 |
from US $3.04 |
||
|
85909C
|
85909C
85909-95400 Bracket Sub-Assy, Relay, No.1[08.1987 - 05.1995] LY6#,YY61..RHD |
85909-95400 |
US $34.94 |
||
|
85909D
|
85909D
85907-37010 Bracket Sub-Assy, Relay, No.2[09.1993 - 05.1995] LY61,YY61..RHD |
85907-37010 |
US $29.85 |
||
|
85909D
|
85909D
85907-95400 Bracket Sub-Assy, Relay, No.2[08.1987 - 09.1993] LY6#,YY61..RHD |
85907-95400 |
US $29.85 |
||
| replacement | |||||
|
85909D
|
85909D
85907-37010 Bracket Sub-Assy, Relay, No.2[08.1987 - 09.1993] LY6#,YY61..RHD |
85907-37010 |
US $29.85 |
||
|
85910C
|
85910C
90987-02004 Relay Assy, Starter[08.1987 - 10.1989] LY6# |
90987-02004 |
from US $28.70 |
||
| replacement | |||||
|
85910C
|
85910C
909870200483 [08.1987 - 10.1989] LY6# |
909870200483 |
US $53.75 |
||
|
85916
|
85916
90987-01003 Relay, Fuel Lid Opener[08.1987 - 05.1995] LY6#,YY52,61 NO.2 |
90987-01003 |
from US $35.26 |
||
|
85916
|
85916
90987-02006 Relay[08.1987 - 05.1995] LY6#,YY52,61 NO.1 |
90987-02006 |
from US $27.65 |
||
|
85959A
|
85959A
85959-36010 Holder, Relay[08.1987 - 05.1995] LY6# |
85959-36010 |
US $3.64 |
||
|
85999A
|
85999A
85999-89101 Bracket Sub-Assy, Flasher[08.1987 - 05.1995] LY6#..GEN |
85999-89101 |
US $2.77 |
||
|
86650C
|
86650C
86650-95A05 Buzzer Assy, Sedimenter WarningSEDIMENTER WARNING [08.1987 - 05.1995] LY6# |
86650-95A05 |
US $28.10 |
||
|
89590
|
89590
89590-36140
Computer Assy, Condition Indicator
[10.1989 - 08.1990] LY61,YY52;YY61..T2,T3;YY61..TW..ST |
89590-36140 |
— | ||
|
8271114620
|
8271114620
82711-14620 Bracket, Relay, No.3 |
82711-14620 |
US $5.24 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $1.03 |
||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $2.13 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.80 |
||
| replacements | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.54 |
||
|
9165140616
|
9165140616
90080-11395 New Genuine Part |
90080-11395 |
US $2.73 |
||
|
9165640316
|
9165640316
91656-40316
New Genuine Part
|
91656-40316 |
— | ||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9165640816
|
9165640816
91656-40816
New Genuine Part
|
91656-40816 |
— | ||
| replacements | |||||
|
9165640816
|
9165640816
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.88 |
||
|
9165640816
|
9165640816
90119-A0109 New Genuine Part |
90119-A0109 |
US $2.97 |
||
|
9165640818
|
9165640818
91656-40818
Clamp Or Clip, Hose(For Radiator Outlet No.1)
|
91656-40818 |
— | ||
| replacement | |||||
|
9165640818
|
9165640818
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.88 |
||
|
9418040600
|
9418040600
94180-40600 Retainer, Roof Window Hinge |
94180-40600 |
from US $1.44 |
||
