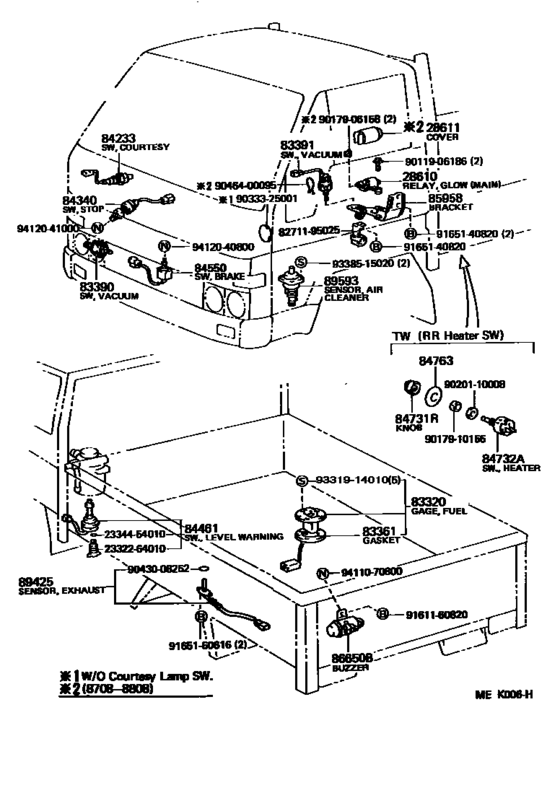

Switch & Relay & Computer ([08.1987 - ] (8708- )) Diagram Toyota DYNA 150/ TOYOACE G15
- Year
- 1988 - 1995
- Sales region
- General
- Frame
- LY61
- ENGINE
- 3L
- DESTINATION
- GEN
- Model
- DYNA 150
- From
- 08.1988
- To
- 05.1995
- Vehicle Model
- Dyna 150
- Deck,cab
- T3
- Driver's Position
- RHD
- Building Condition
- IV
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28610
|
28610
28610-54021
Relay Assy, Glow Plug
[08.1987 - 05.1995] 2L..LY60..ARL SUB; 3L..LY61;2L..LY60..GEN |
28610-54021 |
— | ||
|
28610
|
28610
28610-64080
Relay Assy, Glow Plug
[08.1988 - 10.1989] 3L..LY61..GEN..IV IRELAND SPEC,MAIN |
28610-64080 |
— | ||
|
83320
|
83320
83320-39565 Gage Assy, Fuel Sender[08.1987 - 11.1989] LY61..RHD;LY61..LHD..T3;LY60,YY61..T2,T3 |
83320-39565 |
US $56.61 |
||
|
83361
|
83361
83361-20030 Gasket, Fuel Tank Vent[08.1987 - 08.1990] LY6#,YY52;YY61..T2,T3;YY61..TW..ST |
83361-20030 |
from US $5.12 |
||
|
83390
|
83390
83390-60010
Switch Assy, Vacuum Warning
[08.1987 - 05.1995] LY6# |
83390-60010 |
— | ||
|
84233
|
84233
84231-28020 Switch, Courtesy Lamp[07.1988 - 05.1995] LY6#,YY52;YY61..T2,T3;YY61..TW..ST |
84231-28020 |
US $14.41 |
||
| replacement | |||||
|
84233
|
84233
84231-28010 Switch Assy, Courtesy Lamp[07.1988 - 05.1995] LY6#,YY52;YY61..T2,T3;YY61..TW..ST |
84231-28010 |
from US $16.26 |
||
|
84340
|
84340
84340-22072 Switch Assy, Stop Lamp[08.1987 - 09.1991] LY6#,YY52,61 |
84340-22072 |
from US $27.22 |
||
|
84340
|
84340
84340-36050 Switch Assy, Stop Lamp[09.1991 - 05.1995] LY61,YY52,61 MATSUSHITA |
84340-36050 |
from US $29.90 |
||
|
84461
|
84461
84461-26030 Switch, Level Warning[08.1988 - 10.1988] LY61..T2,T3;LY61..TW..GEN |
84461-26030 |
US $71.49 |
||
| replacement | |||||
|
84461
|
84461
84461-36040 Switch, Level Warning[08.1988 - 10.1988] LY61..T2,T3;LY61..TW..GEN |
84461-36040 |
US $71.64 |
||
|
84461
|
84461
84461-60040 Switch, Level Warning[09.1993 - 05.1995] LY61..T2,T3 |
84461-60040 |
US $79.92 |
||
|
84550
|
84550
84380-35010 Switch Assy, Courtesy Lamp (For Parking Brake)[08.1987 - 05.1995] LY6#,YY52,61 |
84380-35010 |
US $15.66 |
||
|
85958
|
85958
85958-25010 Bracket, Main Relay[09.1993 - 05.1995] LY61,YY61..(T2,T3)..GEN |
85958-25010 |
US $20.68 |
||
|
85958
|
85958
85958-95010 Bracket, Main Relay[08.1987 - 09.1993] LY6#,YY61..T2,T3 |
85958-95010 |
US $23.30 |
||
|
86650B
|
86650B
86650-95A04 Buzzer Assy, Reverse Warning[08.1987 - 05.1995] LY61..T2,T3;LY60,YY52,61;LY61..TW..ST |
86650-95A04 |
US $88.82 |
||
|
89593
|
89593
89593-26010
Sensor, Air Cleaner Warning
[08.1987 - 05.1995] LY6# |
89593-26010 |
— | ||
|
2332264010
|
2332264010
23322-64010 Drain Plug (For a Level Warning Switch) |
23322-64010 |
from US $11.20 |
||
|
2334454010
|
2334454010
23344-54010 O-Ring (For Drain Plug) |
23344-54010 |
from US $1.70 |
||
|
8271195025
|
8271195025
82711-95025 Wire, Fuse To Fuse(for Combustion Heater) |
82711-95025 |
US $12.67 |
||
|
9011906186
|
9011906186
90119-06186
BOLT
|
90119-06186 |
— | ||
| replacement | |||||
|
9011906186
|
9011906186
90119-06420 BOLT WWASHER |
90119-06420 |
from US $1.38 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $1.03 |
||
|
9017910155
|
9017910155
90179-10155 Nut, Heater Blower Switch |
90179-10155 |
US $8.59 |
||
|
9020110008
|
9020110008
90201-10008 Washer, No.2 (For Center Support Bearing) |
90201-10008 |
US $1.76 |
||
|
9033325001
|
9033325001
90333-25001 Plug, Hole(For Hood) |
90333-25001 |
from US $1.41 |
||
|
9043008252
|
9043008252
90430-08252 Gasket(For Catalytic Converter Sensor Guide) |
90430-08252 |
US $3.84 |
||
|
9046400095
|
9046400095
90464-00095 New Genuine Part |
90464-00095 |
US $1.31 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.31 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $1.06 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.47 |
||
|
9331914010
|
9331914010
93319-14010 SCREW |
93319-14010 |
from US $0.90 |
||
|
9338515020
|
9338515020
93385-15020 New Genuine Part |
93385-15020 |
US $1.49 |
||
|
9411070800
|
9411070800
94110-70800
Nut, No.1 (For Center Support Bearing)
|
94110-70800 |
— | ||
| replacement | |||||
|
9411070800
|
9411070800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.03 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.44 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.80 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
