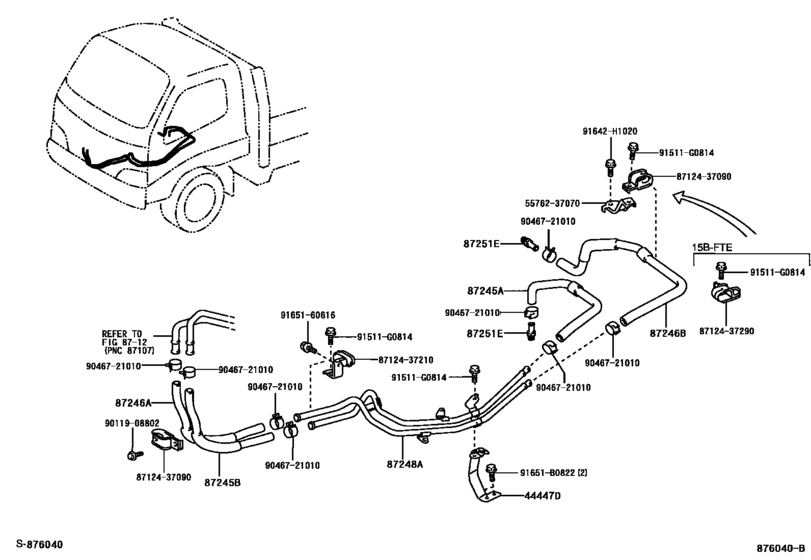

Heating & Air Conditioning - Water Piping ([12.2002 - 10.2006] (0212-0610)BU303,343,XZU300,320,330,340..LHD) Diagram Toyota DYNA/ TOYOACE
- Year
- 2002 - 2006
- Sales region
- General
- Frame
- BU303
- ENGINE
- 14B
- DESTINATION
- GEN
- DECK
- TS
- From
- 12.2002
- To
- 10.2006
- Loading Capacity
- 48T
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Building Condition
- CBU
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44447D
|
44447D
44447-37060 Bracket, Hose Support No.2[12.2002 - 05.2003] BU303,343,WU300,340..LHD |
44447-37060 |
US $17.91 |
||
| replacement | |||||
|
44447D
|
44447D
44447-37061 Bracket, Hose Support No.2[12.2002 - 05.2003] BU303,343,WU300,340..LHD |
44447-37061 |
US $11.07 |
||
|
44447D
|
44447D
44447-37061 Bracket, Hose Support No.2[05.2003 - 10.2006] BU303,343,WU300,340..LHD |
44447-37061 |
US $11.07 |
||
|
87245A
|
87245A
87246-37310 Hose, Heater Water, Inlet AHEATER WATER, INLET A [12.2002 - 10.2006] BU30#,34#,XZU300,320,330,340..ARL,GEN,TAIW |
87246-37310 |
US $29.12 |
||
|
87245B
|
87245B
87245-3V120 Hose, Heater Water, Inlet BHEATER WATER, INLET B [12.2002 - 10.2006] BU303,343,WU300,340,XZU300,320,330,340..LHD L=490 |
87245-3V120 |
US $16.02 |
||
|
87246A
|
87246A
87245-3V120 Hose, Heater Water, Inlet BHEATER WATER, INLET B [12.2002 - 10.2006] BU303,343,WU300,340,XZU300,320,330,340..LHD L=490 |
87245-3V120 |
US $16.02 |
||
|
87246B
|
87246B
87245-3V361 Hose, Heater Water, Outlet BHEATER WATER, OUTLET B [12.2002 - 10.2006] BU30#,34#,XZU300,320,330,340..ARL,GEN,TAIW |
87245-3V361 |
US $45.43 |
||
|
87248A
|
87248A
87248-37281
Pipe, Heater Water Inlet, A
[12.2002 - 10.2006] BU303,343,XZU300,320,330,340..LHD |
87248-37281 |
— | ||
|
87251E
|
87251E
87251-30200 Union(For Water By-Pass Hose)[12.2002 - 10.2006] BU30#,34#,XZU300,320,330,340..ARL,GEN,TAIW |
87251-30200 |
from US $5.24 |
||
|
91511G0814
|
91511G0814
91511-G0814 New Genuine Part |
91511-G0814 |
US $2.33 |
||
|
91642H1020
|
91642H1020
91642-H1020
New Genuine Part
|
91642-H1020 |
— | ||
|
91651B0822
|
91651B0822
91651-B0822 BOLT WWASHER |
91651-B0822 |
from US $0.92 |
||
|
5576237070
|
5576237070
55762-37070 Hose, Cowl Ventilator Drain, Lh |
55762-37070 |
US $12.23 |
||
|
8712437090
|
8712437090
87124-37090
Clamp, No.1 (For Transmission Control Cable)
|
87124-37090 |
— | ||
|
8712437210
|
8712437210
87124-37210
Clamp, Heater
|
87124-37210 |
— | ||
|
8712437290
|
8712437290
87124-37290
Clamp, Heater
|
87124-37290 |
— | ||
|
9011908802
|
9011908802
90119-08802 BOLT WWASHER |
90119-08802 |
US $1.61 |
||
|
9046721010
|
9046721010
90467-21010 Clip(For Ventilation Hose No.2) |
90467-21010 |
from US $2.54 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.94 |
||
