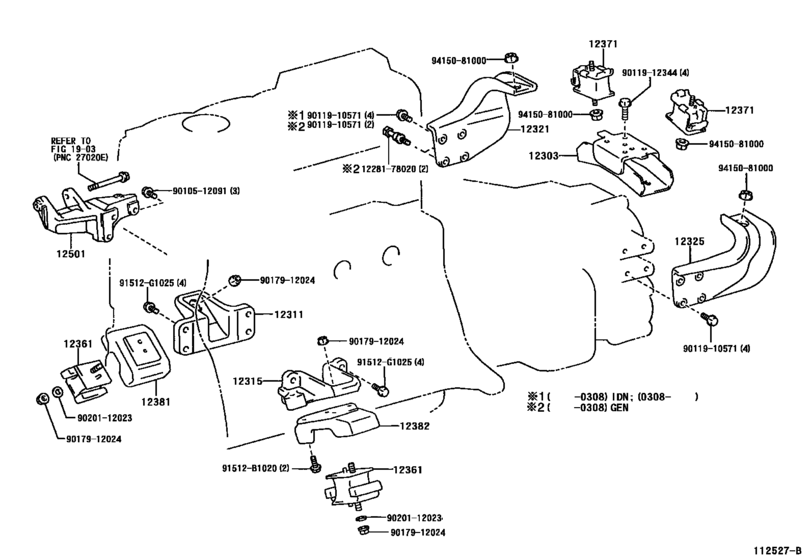

Mounting ([09.2002 - ] (0209- )14B) Diagram Toyota DYNA/ TOYOACE
- Year
- 2002 - 2006
- Sales region
- General
- Frame
- BU303
- ENGINE
- 14B
- DESTINATION
- GEN
- DECK
- TS
- From
- 12.2002
- To
- 10.2006
- Loading Capacity
- 48T
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Building Condition
- IV3
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12303
|
12303
12303-78010
Bracket Sub-Assy, Engine Mounting, Rear
[12.2002 - 10.2006] 14B..BU303,343..GEN; W04D..WU300,340..GCC |
12303-78010 |
— | ||
| replacement | |||||
|
12303
|
12303
12303-78011 Bracket Sub-Assy, Engine Mounting, Rear[12.2002 - 10.2006] 14B..BU303,343..GEN; W04D..WU300,340..GCC |
12303-78011 |
US $51.02 |
||
|
12311
|
12311
12311-58110 Bracket, Engine Mounting, Front No.1 Rh[09.2002 - 12.2006] 14B,15BFTE..BU30#,34# |
12311-58110 |
US $42.52 |
||
|
12315
|
12315
12315-58070 Bracket, Engine Mounting, Front No.1 Lh[09.2002 - 12.2006] 14B,15BFTE..BU30#,34# |
12315-58070 |
US $46.30 |
||
|
12321
|
12321
12321-58230 Bracket, Engine Mounting, Rear, No.1[12.2002 - 10.2006] 14B..BU303,343..GEN; W04D..WU300,340..GCC |
12321-58230 |
US $74.26 |
||
|
12325
|
12325
12325-58190 Bracket, Engine Mounting, No.3[12.2002 - 10.2006] 14B..BU303,343..GEN; W04D..WU300,340..GCC |
12325-58190 |
US $74.26 |
||
|
12361
|
12361
12361-78110 Insulator, Engine Mounting, FrontENGINE MOUNTING, FRONT [09.2002 - 12.2006] 14B..BU303,343; W04D..WU300,340..IDN |
12361-78110 |
US $80.08 |
||
| replacement | |||||
|
12361
|
12361
12361-78111 Insulator, Engine Mounting, Front[09.2002 - 12.2006] 14B..BU303,343; W04D..WU300,340..IDN |
12361-78111 |
US $79.15 |
||
|
12371
|
12371
12371-78010
Insulator, Engine Mounting, Rear No.1
[09.2002 - 12.2006] 14B,15BFTE..BU30#,34#; W04D..WU300,340..IDN; N04C,S05C,15BFTE..XZU300,305,320,330,340,342,345 |
12371-78010 |
— | ||
| replacement | |||||
|
12371
|
12371
12371-78060 INSULATOR ENGINE[09.2002 - 12.2006] 14B,15BFTE..BU30#,34#; W04D..WU300,340..IDN; N04C,S05C,15BFTE..XZU300,305,320,330,340,342,345 |
12371-78060 |
from US $36.96 |
||
|
12381
|
12381
12381-58011 Stabilizer, Engine Mounting[09.2002 - 12.2006] 14B,15BFTE..BU30#,34#; W04D..WU300,340..IDN |
12381-58011 |
from US $21.66 |
||
|
12382
|
12382
12382-58040 Stabilizer, Engine Mounting, Lh[12.2002 - 10.2006] 15BFTE..XZU300,320,330,340; 14B,15BFTE..BU30#,34#..ARL,GEN |
12382-58040 |
US $46.01 |
||
|
12501
|
12501
12501-56010 Bracket Sub-Assy, Alternator[09.2002 - 12.2006] 14B..BU303,343 |
12501-56010 |
US $90.85 |
||
|
91512B1020
|
91512B1020
91512-B1020 Bolt(For Front Transaxle Case Cover) |
91512-B1020 |
US $1.89 |
||
| replacement | |||||
|
91512B1020
|
91512B1020
90105-A0050 Bolt(For Front Transaxle Case Cover) |
90105-A0050 |
US $3.96 |
||
|
91512G1025
|
91512G1025
91512-G1025 BOLTFLANGE |
91512-G1025 |
from US $0.96 |
||
|
1228178020
|
1228178020
12281-78020 Hanger, Engine, No.1 |
12281-78020 |
US $3.20 |
||
|
9010512091
|
9010512091
90105-12091 New Genuine Part |
90105-12091 |
US $1.22 |
||
|
9011910571
|
9011910571
90119-10571 New Genuine Part |
90119-10571 |
US $2.15 |
||
|
9011912344
|
9011912344
90119-12344 New Genuine Part |
90119-12344 |
US $4.02 |
||
|
9017912024
|
9017912024
90179-12024 NUT |
90179-12024 |
from US $1.09 |
||
|
9020112023
|
9020112023
90201-12023 New Genuine Part |
90201-12023 |
US $4.95 |
||
|
9415081000
|
9415081000
94150-81000 NUT FLANGE |
94150-81000 |
US $1.79 |
||
