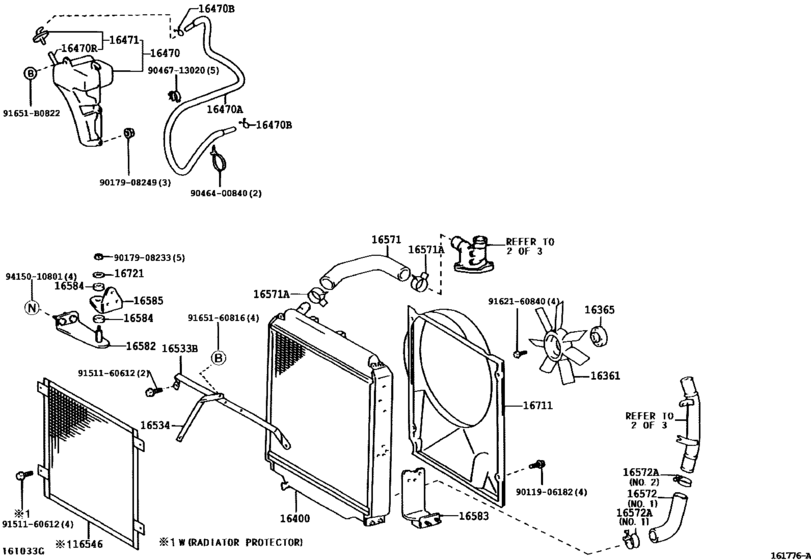

Radiator & Water Outlet ([12.2002 - ] (0212- )14B..RHD..GEN) Diagram Toyota DYNA/ TOYOACE
- Year
- 2002 - 2006
- Sales region
- General
- Frame
- BU303
- ENGINE
- 14B
- DESTINATION
- GEN
- DECK
- TS
- From
- 12.2002
- To
- 10.2006
- Loading Capacity
- 48T
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- CBU
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16361
|
16361
16361-58020 Fan[12.2002 - 10.2006] 14B..BU303,343..GEN |
16361-58020 |
US $104.83 |
||
|
16365
|
16365
16365-56022 Spacer, FanFAN [12.2002 - 10.2006] 14B..BU303,343..GEN |
16365-56022 |
US $47.90 |
||
|
16400
|
16400
16400-58780 Radiator Assy[12.2002 - 10.2006] 14B..BU303,343..RHD..GEN |
16400-58780 |
US $579.49 |
||
|
16470
|
16470
16470-78010 Tank Assy, Radiator Reserve[09.2002 - 12.2006] 14B,15BFTE..BU30#,34#; W04D..WU300,340..IDN; N04C,S05C,15BFTE..XZU300,305,320,330,340,342,345 |
16470-78010 |
US $68.54 |
||
|
16470A
|
16470A
16567-58080 Hose Or Pipe(For Radiator Reserve Tank)[12.2002 - 10.2006] 14B..BU303,343..RHD..GEN L=1660; W04D..WU300,340..GCC L=1660 |
16567-58080 |
US $23.88 |
||
| replacement | |||||
|
16470A
|
16470A
16567-78570 Hose Or Pipe(For Radiator Reserve Tank)[12.2002 - 10.2006] 14B..BU303,343..RHD..GEN L=1660; W04D..WU300,340..GCC L=1660 |
16567-78570 |
US $30.91 |
||
|
16470B
|
16470B
90467-11085 Clamp Or Clip(For Radiator Breather Hose)[09.2002 - 12.2006] 14B,15BFTE..BU30#,34#; W04D..WU300,340..IDN; N04C,S05C,15BFTE..XZU300,305,320,330,340,342,345 |
90467-11085 |
from US $0.72 |
||
|
16470R
|
16470R
90445-12078 Hose(For Radiator Breather)[09.2002 - 12.2006] 14B,15BFTE..BU30#,34# L=315; W04D..WU300,340..IDN L=315; N04C,S05C,15BFTE..XZU300,305,320,330,340,342,345 L=315 |
90445-12078 |
from US $6.75 |
||
|
16471
|
16471
16405-78010
Cap Sub-Assy, Reserve Tank
[09.2002 - 12.2006] 14B,15BFTE..BU30#,34#; W04D..WU300,340..IDN; N04C,S05C,15BFTE..XZU300,305,320,330,340,342,345 |
16405-78010 |
— | ||
|
16533B
|
16533B
16533-78010 Support, Radiator, No.1[12.2002 - 10.2006] 14B..BU303,343..RHD..GEN |
16533-78010 |
US $28.54 |
||
|
16534
|
16534
16534-78020 Support, Radiator, No.2[12.2002 - 10.2006] 14B..BU303,343..RHD..GEN |
16534-78020 |
US $16.02 |
||
|
16546
|
16546
16546-78020 Protector, RadiatorRADIATOR [12.2002 - 10.2006] 14B..BU303,343..GEN; W04D..WU300,340..GCC |
16546-78020 |
US $132.50 |
||
|
16571
|
16571
16571-58160
Hose, Radiator, Inlet
[12.2002 - 10.2006] 14B,15BFTE..BU30#,34#..RHD..(ARL,GEN) |
16571-58160 |
— | ||
| replacement | |||||
|
16571
|
16571
16571-58161 Hose, Radiator, Inlet[12.2002 - 10.2006] 14B,15BFTE..BU30#,34#..RHD..(ARL,GEN) |
16571-58161 |
US $30.91 |
||
|
16571A
|
16571A
16581-58010 Clamp, Sub Radiator Inlet Hose[12.2002 - 10.2003] 15BFTE..XZU300,320,330,340; 14B..BU303,343..GEN; W04D..WU300,340..GCC |
16581-58010 |
US $4.30 |
||
|
16571A
|
16571A
16581-78140 Clamp, Sub Radiator Inlet Hose[08.2006 - 10.2006] 14B..BU303,343..GEN; W04D..WU300,340..GCC; N04C,15BFTE..XZU30#,320,330,340,345 |
16581-78140 |
US $15.58 |
||
| replacement | |||||
|
16571A
|
16571A
16581-78191 Clamp, Sub Radiator Inlet Hose[08.2006 - 10.2006] 14B..BU303,343..GEN; W04D..WU300,340..GCC; N04C,15BFTE..XZU30#,320,330,340,345 |
16581-78191 |
from US $7.59 |
||
|
16571A
|
16571A
90460-52003 Clamp, Sub Radiator Inlet Hose[10.2003 - 12.2003] 15BFTE..XZU300,320,330,340; 14B..BU303,343..GEN; W04D..WU300,340..GCC,SA |
90460-52003 |
US $4.30 |
||
|
16571A
|
16571A
90460-55014 Clamp, Sub Radiator Inlet Hose[12.2003 - 07.2006] 14B..BU303,343..GEN; W04D..WU300,340..GCC,SA; N04C,15BFTE..XZU30#,320,330,340,345 |
90460-55014 |
US $5.53 |
||
| replacement | |||||
|
16571A
|
16571A
16581-78191 Clamp, Sub Radiator Inlet Hose[12.2003 - 07.2006] 14B..BU303,343..GEN; W04D..WU300,340..GCC,SA; N04C,15BFTE..XZU30#,320,330,340,345 |
16581-78191 |
from US $7.59 |
||
|
16572
|
16572
16572-56091 Hose, Radiator, Outlet[12.2002 - 10.2006] 14B..BU303,343..GEN NO.2 |
16572-56091 |
from US $10.39 |
||
|
16572
|
16572
16572-58170 Hose, Radiator, Outlet[12.2002 - 10.2006] 14B..BU303,343..RHD..GEN NO.1 |
16572-58170 |
US $29.27 |
||
| replacement | |||||
|
16572
|
16572
16572-58171 Hose, Radiator, Outlet[12.2002 - 10.2006] 14B..BU303,343..RHD..GEN NO.1 |
16572-58171 |
US $24.17 |
||
|
16572A
|
16572A
16581-58010 Clamp, Sub Radiator Inlet Hose[12.2002 - 10.2003] 15BFTE..XZU300,320,330,340 NO.1; 14B..BU303,343..GEN NO.2 |
16581-58010 |
US $4.30 |
||
|
16572A
|
16572A
16581-78050 Clamp, Sub Radiator Inlet Hose[12.2002 - 10.2003] 15BFTE..XZU300,320,330,340 NO.2; 14B..BU303,343..GEN NO.1 |
16581-78050 |
US $5.02 |
||
|
16572A
|
16572A
16581-78140 Clamp, Sub Radiator Inlet Hose[08.2006 - 10.2006] N04C..XZU305,345; 15BFTE..XZU300,320,330,340 NO.1 & NO.2; W04D..WU300,340..GCC NO.1; 14B..BU303,343..GEN NO.1 & NO.2 |
16581-78140 |
US $15.58 |
||
| replacement | |||||
|
16572A
|
16572A
16581-78191 Clamp, Sub Radiator Inlet Hose[08.2006 - 10.2006] N04C..XZU305,345; 15BFTE..XZU300,320,330,340 NO.1 & NO.2; W04D..WU300,340..GCC NO.1; 14B..BU303,343..GEN NO.1 & NO.2 |
16581-78191 |
from US $7.59 |
||
|
16572A
|
16572A
90460-52003 Clamp, Sub Radiator Inlet Hose[10.2003 - 12.2003] 15BFTE..XZU300,320,330,340 NO.1 & NO.2; 14B..BU303,343..GEN NO.1 & NO.2; W04D..WU300,340..GCC,SA NO.1 |
90460-52003 |
US $4.30 |
||
|
16572A
|
16572A
90460-55014 Clamp, Sub Radiator Inlet Hose[12.2003 - 07.2006] N04C..XZU305,345; 15BFTE..XZU300,320,330,340 NO.1 & NO.2; W04D..WU300,340..GCC,SA NO.1; 14B..BU303,343..GEN NO.1 & NO.2 |
90460-55014 |
US $5.53 |
||
| replacement | |||||
|
16572A
|
16572A
16581-78191 Clamp, Sub Radiator Inlet Hose[12.2003 - 07.2006] N04C..XZU305,345; 15BFTE..XZU300,320,330,340 NO.1 & NO.2; W04D..WU300,340..GCC,SA NO.1; 14B..BU303,343..GEN NO.1 & NO.2 |
16581-78191 |
from US $7.59 |
||
|
16582
|
16582
16582-78020 Bracket, Radiator, No.1[12.2002 - 10.2006] 14B,15BFTE..BU30#,34#..RHD..(ARL,GEN) |
16582-78020 |
US $33.05 |
||
|
16583
|
16583
16583-78010
Bracket, Radiator, No.2
[12.2002 - 10.2003] 14B..BU303,343..RHD..GEN |
16583-78010 |
— | ||
| replacement | |||||
|
16583
|
16583
16583-78012 Bracket, Radiator, No.2[12.2002 - 10.2003] 14B..BU303,343..RHD..GEN |
16583-78012 |
US $49.62 |
||
|
16583
|
16583
16583-78011
Bracket, Radiator, No.2
[10.2003 - 04.2006] 14B..BU303,343..RHD..GEN; W04D..WU300,340..SA |
16583-78011 |
— | ||
| replacement | |||||
|
16583
|
16583
16583-78012 Bracket, Radiator, No.2[10.2003 - 04.2006] 14B..BU303,343..RHD..GEN; W04D..WU300,340..SA |
16583-78012 |
US $49.62 |
||
|
16583
|
16583
16583-78012 Bracket, Radiator, No.2[05.2006 - 10.2006] 14B..BU303,343..RHD..GEN |
16583-78012 |
US $49.62 |
||
|
16584
|
16584
16584-78010 Insulator, Radiator Mounting[12.2002 - 10.2006] 14B,15BFTE..BU30#,34#..RHD..(ARL,GEN) |
16584-78010 |
US $3.93 |
||
|
16585
|
16585
16585-78020 Bracket, Radiator, No.3[12.2002 - 10.2006] 14B,15BFTE..BU30#,34#..RHD..(ARL,GEN) |
16585-78020 |
US $28.83 |
||
|
16711
|
16711
16711-58290 Shroud, Fan[12.2002 - 10.2006] 14B..BU303,343..RHD..GEN |
16711-58290 |
US $70.18 |
||
|
16721
|
16721
16721-78010 Plate, Holder[12.2002 - 10.2006] 14B,15BFTE..BU30#,34#..RHD..(ARL,GEN) |
16721-78010 |
US $6.63 |
||
|
91651B0822
|
91651B0822
91651-B0822 BOLT WWASHER |
91651-B0822 |
from US $0.92 |
||
|
9011906182
|
9011906182
90119-06182 Bolt, W/washer (For Floor Shift) |
90119-06182 |
US $1.61 |
||
|
9017908233
|
9017908233
90179-08233 NUT |
90179-08233 |
from US $1.31 |
||
|
9017908249
|
9017908249
90179-08249 New Genuine Part |
90179-08249 |
US $1.79 |
||
|
9046400840
|
9046400840
90464-00840 New Genuine Part |
90464-00840 |
US $2.15 |
||
|
9046713020
|
9046713020
90467-13020 Clamp Or Clip(For Radiator Reserve Tank Hose No.2) |
90467-13020 |
from US $1.70 |
||
|
9151160612
|
9151160612
91511-60612 BOLT |
91511-60612 |
US $1.97 |
||
|
9162160840
|
9162160840
91621-60840 Bolt(For Rocker Support Set) |
91621-60840 |
from US $0.96 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.01 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 BOLT |
90080-11396 |
US $3.32 |
||
|
9415010801
|
9415010801
94150-10801 New Genuine Part |
94150-10801 |
US $1.79 |
||
