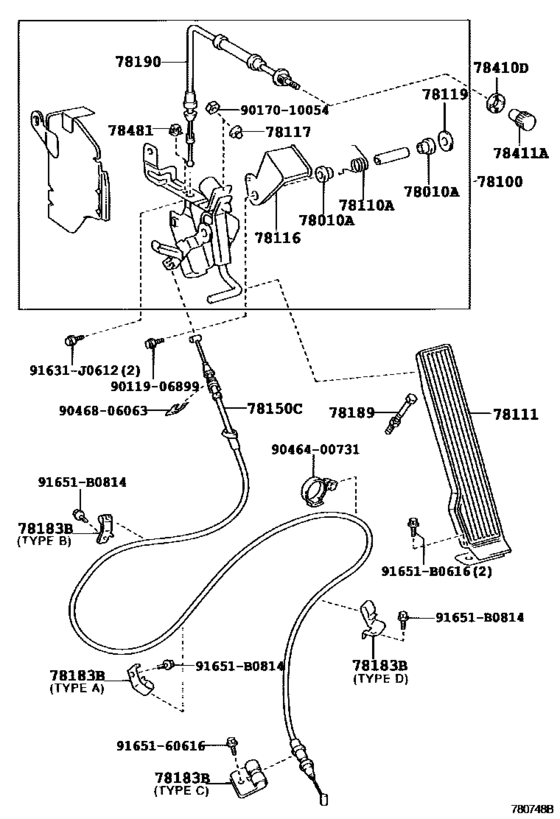

Accelerator Link ([12.2002 - ] (0212- )BU303,343..RHD..GEN) Diagram Toyota DYNA/ TOYOACE
- Year
- 2002 - 2006
- Sales region
- General
- Frame
- BU303
- ENGINE
- 14B
- DESTINATION
- GEN
- DECK
- TS
- From
- 12.2002
- To
- 10.2006
- Loading Capacity
- 55T
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78010A
|
78010A
90386-08065 Bush (For Accelerator Link)[09.2002 - 10.2006] BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW |
90386-08065 |
US $1.31 |
||
|
78100
|
78100
78100-37600 Link Assy, Accelerator[09.2002 - 10.2006] BU303,343..RHD..GEN |
78100-37600 |
US $113.57 |
||
|
78110A
|
78110A
90959-03243 Spring (For Accelerator Pedal Rod)[09.2002 - 10.2006] BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW |
90959-03243 |
US $2.18 |
||
|
78111
|
78111
78110-95410 Pedal, Accelerator[09.2002 - 10.2006] BU303,343,XZU305,345..RHD..(ARL,GEN) |
78110-95410 |
from US $22.01 |
||
|
78116
|
78116
78116-37010 Cover, Accelerator Pedal Rod[09.2002 - 10.2006] BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW |
78116-37010 |
US $5.82 |
||
|
78117
|
78117
90541-06038 Cushion(For Parking Brake Pedal)[09.2002 - 10.2006] BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW |
90541-06038 |
US $2.15 |
||
|
78119
|
78119
78119-95J00 Stopper, Accelerator Pedal Rod[09.2002 - 10.2006] BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW |
78119-95J00 |
US $2.62 |
||
| replacement | |||||
|
78119
|
78119
78119-37010 Stopper, Accelerator Pedal Rod[09.2002 - 10.2006] BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW |
78119-37010 |
US $0.58 |
||
|
78150C
|
78150C
78150-37600 Wire Assy, Accelerator FlexibleACCELERATOR FLEXIBLE [12.2002 - 10.2006] BU303,343..RHD..GEN |
78150-37600 |
US $72.80 |
||
|
78183B
|
78183B
78183-37260 Clamp, Accelerator Control Cable[09.2002 - 10.2006] BU303,343..GEN TYPE A:REFER ILLUST. |
78183-37260 |
US $3.20 |
||
|
78183B
|
78183B
78183-37300 Clamp, Accelerator Control Cable[09.2002 - 10.2006] BU303,343..RHD..GEN TYPE B:REFER ILLUST. |
78183-37300 |
US $3.93 |
||
|
78183B
|
78183B
78183-37330 Clamp, Accelerator Control Cable[12.2002 - 10.2006] BU303,343..GEN TYPE C:REFER ILLUST.; WU300,340..GCC |
78183-37330 |
US $3.64 |
||
|
78183B
|
78183B
78183-37380 Clamp, Accelerator Control CableACCELERATOR CONTROL CABLE [12.2002 - 10.2006] BU303,343..RHD..GEN TYPE D:REFER ILLUST. |
78183-37380 |
US $5.24 |
||
|
78189
|
78189
78208-37060 Bolt, Accelerator Pedal Stopper[09.2002 - 10.2006] BU303,343..RHD..GEN |
78208-37060 |
US $2.33 |
||
|
78190
|
78190
78190-37010 Cable Assy, Accel Control W/throttle[09.2002 - 10.2006] BU303,343..RHD..GEN |
78190-37010 |
US $19.22 |
||
|
78410D
|
78410D
78314-95010 Nut, Choke[09.2002 - 10.2006] BU303,343,WU300,340..GCC,GEN |
78314-95010 |
from US $1.88 |
||
|
78411A
|
78411A
78411-95J01 Knob, Throttle Cable[09.2002 - 10.2006] BU303,343,WU300,340,XZU305,345..ARL,GCC,GEN |
78411-95J01 |
from US $4.95 |
||
|
78481
|
78481
78481-37010 Clamp, Throttle Wire[09.2002 - 10.2006] BU303,343,WU300,340..GCC,GEN |
78481-37010 |
US $1.10 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.72 |
||
|
91651B0616
|
91651B0616
91651-B0616 BOLT WWASHER |
91651-B0616 |
from US $0.84 |
||
|
91651B0814
|
91651B0814
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.86 |
||
|
9011906899
|
9011906899
90119-06899 New Genuine Part |
90119-06899 |
US $1.31 |
||
|
9017010054
|
9017010054
90170-10054
Nut, Hexagon
|
90170-10054 |
— | ||
|
9046400731
|
9046400731
90464-00731 Clamp Or Clip(For Water Hose) |
90464-00731 |
US $2.48 |
||
|
9046806063
|
9046806063
90468-06063 CLIP |
90468-06063 |
US $1.61 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.94 |
||
