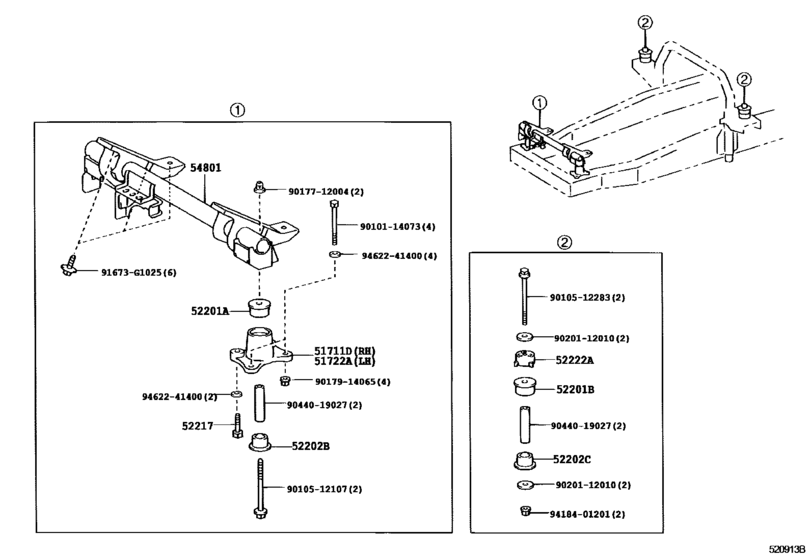

Cab Mounting & Body Mounting ([09.2002 - ] FIXED CAB (0209- )BU303,343,WU302..IDN) Diagram Toyota DYNA/ TOYOACE
- Year
- 2002 - 2006
- Sales region
- General
- Frame
- BU303
- ENGINE
- 14B
- DESTINATION
- IDN
- DECK
- T3
- From
- 09.2002
- To
- 12.2006
- Loading Capacity
- 48T
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- IV3
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51711D
|
51711D
51711-0W020
Bracket, Cab Front Mounting
[03.2005 - 12.2006] BU303,343..IDN |
51711-0W020 |
— | ||
|
51711D
|
51711D
51711-37240 Bracket, Cab Front Mounting[09.2002 - 02.2005] BU303,343..IDN |
51711-37240 |
US $94.64 |
||
| replacement | |||||
|
51711D
|
51711D
51711-0W020
Bracket, Cab Front Mounting
[09.2002 - 02.2005] BU303,343..IDN |
51711-0W020 |
— | ||
|
51722A
|
51722A
51712-0W020
Bracket Sub-Assy, Cab Front Mounting, Lh
[03.2005 - 12.2006] BU303,343..IDN |
51712-0W020 |
— | ||
|
51722A
|
51722A
51712-37240 Bracket Sub-Assy, Cab Front Mounting, Lh[09.2002 - 02.2005] BU303,343..IDN |
51712-37240 |
US $94.64 |
||
| replacement | |||||
|
51722A
|
51722A
51712-0W020
Bracket Sub-Assy, Cab Front Mounting, Lh
[09.2002 - 02.2005] BU303,343..IDN |
51712-0W020 |
— | ||
|
52201A
|
52201A
52201-0W010
Cushion Sub-Assy, Cab Front Mounting
[09.2002 - 12.2006] BU303,343..IDN |
52201-0W010 |
— | ||
|
52201B
|
52201B
52201-0W010
Cushion Sub-Assy, Cab Front Mounting
[09.2002 - 12.2006] BU303,343..IDN |
52201-0W010 |
— | ||
|
52202B
|
52202B
52202-0W010
Cushiion Sub-Assy, Cab Mounting, No.1 Lower
[09.2002 - 12.2006] BU303,343..IDN |
52202-0W010 |
— | ||
|
52202C
|
52202C
52202-0W010
Cushiion Sub-Assy, Cab Mounting, No.1 Lower
[09.2002 - 12.2006] BU303,343..IDN |
52202-0W010 |
— | ||
|
52217
|
52217
52217-37020 Bolt, Body MountingBODY MOUNTING [09.2002 - 12.2006] BU303,343,WU300,340,XZU342..IDN |
52217-37020 |
US $2.77 |
||
|
52222A
|
52222A
52222-0W020
Spacer, Cab Rear Mounting, Upper
[09.2002 - 12.2006] BU303,343..IDN |
52222-0W020 |
— | ||
|
54801
|
54801
54801-0W040
Tube Sub-Assy, Tilt Cab, No.1
[09.2002 - 12.2006] BU303,343..IDN |
54801-0W040 |
— | ||
|
91673G1025
|
91673G1025
91673-G1025 New Genuine Part |
91673-G1025 |
US $2.51 |
||
|
9010114073
|
9010114073
90101-14073 Bolt, Hexagon(For Cab Mounting Baracket) |
90101-14073 |
US $6.55 |
||
|
9010512107
|
9010512107
90105-12107 New Genuine Part |
90105-12107 |
US $4.22 |
||
|
9010512283
|
9010512283
90105-12283 New Genuine Part |
90105-12283 |
US $5.39 |
||
|
9017712004
|
9017712004
90177-12004 NUT LOCK |
90177-12004 |
US $1.79 |
||
|
9017914065
|
9017914065
90179-14065 NUT |
90179-14065 |
US $3.05 |
||
|
9020112010
|
9020112010
90201-12010 Washer(For Front Lateral Control Rod) |
90201-12010 |
US $6.99 |
||
|
9044019027
|
9044019027
90440-19027 New Genuine Part |
90440-19027 |
US $5.53 |
||
|
9418401201
|
9418401201
94184-01201 NUT |
94184-01201 |
from US $0.96 |
||
|
9462241400
|
9462241400
94622-41400 WASHER PLATE |
94622-41400 |
from US $1.40 |
||
