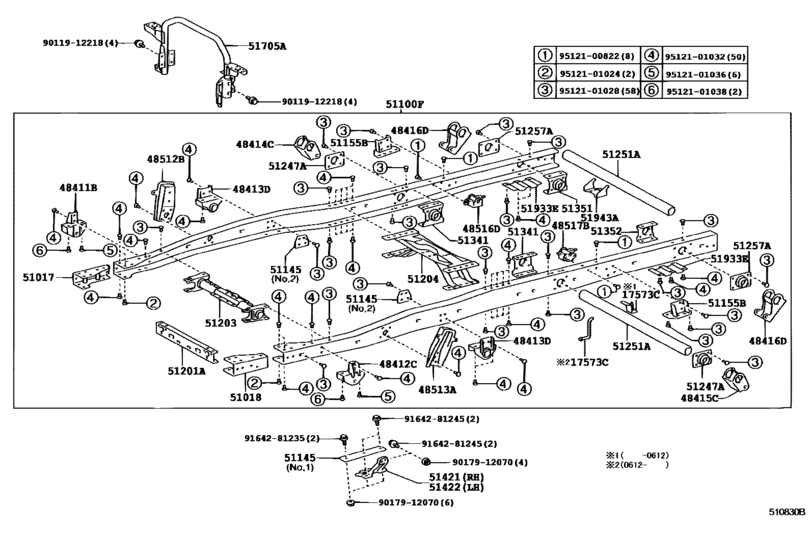

Frame ([09.2002 - 12.2007] (0209-0712)BU303,WU30#..T3) Diagram Toyota DYNA/ TOYOACE
- Year
- 2002 - 2006
- Sales region
- General
- Frame
- BU303
- ENGINE
- 14B
- DESTINATION
- IDN
- DECK
- T3
- From
- 09.2002
- To
- 12.2006
- Loading Capacity
- 48T
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- IV3
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17573C
|
17573C
17573-78170
Bracket, Exhaust Pipe Support, No.3
[09.2002 - 12.2006] W04D,14B..BU303,WU300..T3 |
17573-78170 |
— | ||
|
48411B
|
48411B
48411-37100
Bracket, Spring, No.1 Rh
[09.2002 - 12.2006] BU303,343,WU300,340,XZU342..IDN |
48411-37100 |
— | ||
|
48412C
|
48412C
48412-37090
Bracket, Spring, No.1 Lh
[09.2002 - 12.2006] BU303,343,WU300,340,XZU342..IDN |
48412-37090 |
— | ||
|
48413D
|
48413D
48413-37100
Bracket, Spring, No.2
[09.2002 - 12.2006] BU303,343,WU300,340,XZU342..IDN |
48413-37100 |
— | ||
|
48414C
|
48414C
48414-25070 Bracket, Spring, No.3 Rh[09.2002 - 07.2003] BU303,WU300..T3 |
48414-25070 |
US $57.51 |
||
| replacement | |||||
|
48414C
|
48414C
48414-25071 Bracket, Spring, No.3 Rh[09.2002 - 07.2003] BU303,WU300..T3 |
48414-25071 |
US $47.76 |
||
|
48414C
|
48414C
48414-25071 Bracket, Spring, No.3 Rh[07.2003 - 12.2006] BU303,WU300..T3 |
48414-25071 |
US $47.76 |
||
|
48415C
|
48415C
48414-25070 Bracket, Spring, No.3 Rh[09.2002 - 07.2003] BU303,WU300..T3 |
48414-25070 |
US $57.51 |
||
| replacement | |||||
|
48415C
|
48415C
48414-25071 Bracket, Spring, No.3 Rh[09.2002 - 07.2003] BU303,WU300..T3 |
48414-25071 |
US $47.76 |
||
|
48415C
|
48415C
48414-25071 Bracket, Spring, No.3 Rh[07.2003 - 12.2006] BU303,WU300..T3 |
48414-25071 |
US $47.76 |
||
|
48416D
|
48416D
48416-36080 Bracket Sub-Assy, Rear Spring, Rear Rh[09.2002 - 12.2006] BU303,WU300..T3 |
48416-36080 |
US $48.78 |
||
|
48512B
|
48512B
48512-37110 Bracket, Front Shock Absorber, Upper RhFRONT SHOCK ABSORBER, UPPER RH [09.2002 - 12.2006] BU303,343,WU300,340,XZU342..IDN |
48512-37110 |
US $72.80 |
||
|
48513A
|
48513A
48512-37110 Bracket, Front Shock Absorber, Upper RhFRONT SHOCK ABSORBER, UPPER RH [09.2002 - 12.2006] BU303,343,WU300,340,XZU342..IDN |
48512-37110 |
US $72.80 |
||
|
48516D
|
48516D
48516-36020 Bracket, Rear Shock Absorber, Upper RhREAR SHOCK ABSORBER, UPPER RH [09.2002 - 12.2006] BU303,WU300..T3 |
48516-36020 |
US $24.46 |
||
|
48517B
|
48517B
48516-36020 Bracket, Rear Shock Absorber, Upper RhREAR SHOCK ABSORBER, UPPER RH [09.2002 - 12.2006] BU303,WU300..T3 |
48516-36020 |
US $24.46 |
||
|
51017
|
51017
51017-37110
Reinforcement Sub-Assy, Side Rail, No.1 Rh
[09.2002 - 12.2006] BU303,343,WU300,340,XZU342..IDN |
51017-37110 |
— | ||
|
51100F
|
51100F
51001-3V330
Frame Sub-Assy
[09.2002 - 12.2006] BU303,WU300..T3 |
51001-3V330 |
— | ||
|
51145
|
51145
51145-37080
Stiffener, Frame Side Rail
[09.2002 - 12.2006] BU303,343,WU300,340,XZU342..IDN NO.1 |
51145-37080 |
— | ||
|
51145
|
51145
51145-37130
Stiffener, Frame Side Rail
[09.2002 - 12.2006] BU303,343,WU300,340,XZU342..IDN NO.2 |
51145-37130 |
— | ||
|
51155B
|
51155B
51155-37100
Stiffener, Frame Side Rail, Rear No.2
[09.2002 - 12.2006] BU303,WU300..T3 |
51155-37100 |
— | ||
|
51201A
|
51201A
51211-37150
Crossmember Sub-Assy, Frame, Front
[09.2002 - 12.2006] BU303,WU300..T3 |
51211-37150 |
— | ||
|
51203
|
51203
51202-37110
Crossmember Sub-Assy, Frame, No.2
[09.2002 - 12.2006] BU303,343,WU300,340,XZU342..IDN |
51202-37110 |
— | ||
|
51204
|
51204
51203-37180
Crossmember Sub-Assy, Frame, No.3
[09.2002 - 12.2006] BU303,WU300..T3 |
51203-37180 |
— | ||
|
51247A
|
51247A
51247-37010 Reinforcement, Frame No.4 Crossmember[09.2002 - 12.2006] BU303,WU300..T3 |
51247-37010 |
US $22.42 |
||
|
51251A
|
51251A
51251-36050 Crossmember Sub-Assy, Frame, No.5[09.2002 - 12.2006] BU303,WU300..T3 |
51251-36050 |
US $202.38 |
||
|
51257A
|
51257A
51257-25010 Reinforcement, Frame No.5 CrossmemberFRAME NO.5 CROSS MEMBER [09.2002 - 12.2006] BU303,WU300..T3 |
51257-25010 |
US $35.53 |
||
|
51341
|
51341
51341-37040
Gusset, Frame No.4 Crossmember, Rh
[09.2002 - 12.2006] BU303,WU300..T3 |
51341-37040 |
— | ||
|
51351
|
51351
51351-37080
Gusset, Crossmember, No.5 Rh
[09.2002 - 12.2006] BU303,WU300..T3 |
51351-37080 |
— | ||
|
51352
|
51352
51351-37080
Gusset, Crossmember, No.5 Rh
[09.2002 - 12.2006] BU303,WU300..T3 |
51351-37080 |
— | ||
|
51421
|
51421
51421-0W030
Bracket, Engine Front Mounting, Rh
[09.2002 - 12.2006] BU303,WU300..T3 |
51421-0W030 |
— | ||
|
51422
|
51422
51422-0W030
Bracket, Engine Front Mounting, Lh
[09.2002 - 12.2006] BU303,WU300..T3 |
51422-0W030 |
— | ||
|
51705A
|
51705A
51705-0W020
Bracket Sub-Assy, Cab Mounting, No.3
[09.2002 - 12.2006] BU303,343..IDN |
51705-0W020 |
— | ||
|
51933E
|
51933E
51933-37060
Stopper, Spare Wheel, No.1
[09.2002 - 12.2006] BU303,WU300..T3 |
51933-37060 |
— | ||
|
51943A
|
51943A
51941-37120
Bracket, Spare Wheel Carrier
[09.2002 - 12.2006] BU303,WU300..T3 |
51941-37120 |
— | ||
|
9011912218
|
9011912218
90119-12218 New Genuine Part |
90119-12218 |
US $1.49 |
||
|
9017912070
|
9017912070
90179-12070 Nut (For Front Lower Ball Joint Setting) |
90179-12070 |
from US $1.93 |
||
|
9164281235
|
9164281235
91642-81235 BOLT WWASHER |
91642-81235 |
US $5.56 |
||
|
9164281245
|
9164281245
91642-81245 New Genuine Part |
91642-81245 |
US $2.48 |
||
|
9512100822
|
9512100822
95121-00822 New Genuine Part |
95121-00822 |
US $3.49 |
||
|
9512101024
|
9512101024
95121-01024 New Genuine Part |
95121-01024 |
US $4.95 |
||
|
9512101028
|
9512101028
95121-01028 RIVET |
95121-01028 |
from US $2.67 |
||
|
9512101032
|
9512101032
95121-01032 RIVET |
95121-01032 |
US $4.30 |
||
|
9512101036
|
9512101036
95121-01036 RIVET |
95121-01036 |
US $4.08 |
||
|
9512101038
|
9512101038
95121-01038 New Genuine Part |
95121-01038 |
US $3.20 |
||
