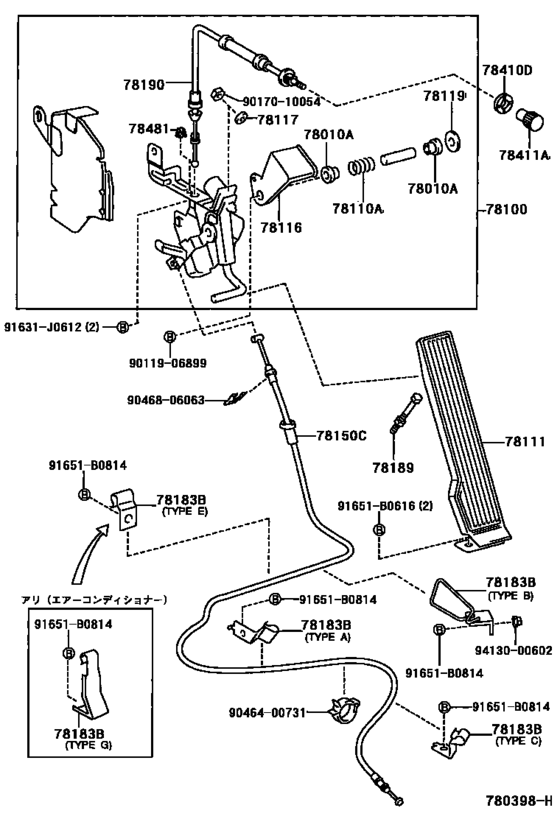

Accelerator Link ([05.1999 - 06.2004] (9905-0406)BU30#,346) Diagram Toyota DYNA/ TOYOACE
- Year
- 1999 - 2004
- Sales region
- Japan
- Frame
- BU306
- ENGINE
- 4B
- TRANSMISSION
- MTM
- DECK
- T4
- CAB
- DCB
- Model
- DYNA/TOYOACE
- From
- 05.1999
- To
- 06.2004
- Gear Shift Type
- 5F
- Body Shape
- 4NO
- Loading Capacity
- 20T
- Fuel Induction
- DSL
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78010A
|
78010A
90386-08065 Bush (For Accelerator Link)[05.1999 - 06.2004] XZU301,302,341,342..CNG,LPG;BU30#,346,BZU300,340,RZU30#,340,XZU300,320,330,340,350 |
90386-08065 |
US $1.31 |
||
|
78100
|
78100
78100-37600 Link Assy, Accelerator[05.1999 - 06.2004] BU30#,346 |
78100-37600 |
US $113.57 |
||
|
78110A
|
78110A
90959-03243 Spring (For Accelerator Pedal Rod)[05.1999 - 05.2000] BU30#,346,XZU300,320,330,340,350 |
90959-03243 |
US $2.18 |
||
|
78111
|
78111
78110-95410 Pedal, Accelerator[05.1999 - 06.2004] BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346 ,347,35#,362,37#,382 |
78110-95410 |
from US $22.01 |
||
|
78116
|
78116
78116-37010 Cover, Accelerator Pedal Rod[06.1999 - 06.2004] XZU301,302,341,342..CNG,LPG;BU30#,346,BZU300,340,RZU30#,340,XZU300,320,330,340,350 |
78116-37010 |
US $5.82 |
||
|
78117
|
78117
90541-06036 Cushion, No.1(For Clutch Pedal)[05.1999 - 07.2000] BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
90541-06036 |
from US $0.90 |
||
| replacement | |||||
|
78117
|
78117
90541060361
CUSHION
[05.1999 - 07.2000] BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
90541060361 |
— | ||
|
78117
|
78117
90541-06038 Cushion(For Parking Brake Pedal)[07.2000 - 06.2004] BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346 ,347,35#,362,37#,382 |
90541-06038 |
US $2.15 |
||
|
78119
|
78119
78119-95J00 Stopper, Accelerator Pedal Rod[06.1999 - 06.2004] XZU301,302,341,342..CNG,LPG;BU30#,346,BZU300,340,RZU30#,340,XZU300,320,330,340,350 |
78119-95J00 |
US $2.62 |
||
| replacement | |||||
|
78119
|
78119
78119-37010 Stopper, Accelerator Pedal Rod[06.1999 - 06.2004] XZU301,302,341,342..CNG,LPG;BU30#,346,BZU300,340,RZU30#,340,XZU300,320,330,340,350 |
78119-37010 |
US $0.58 |
||
|
78150C
|
78150C
78150-37470
Wire Assy, Accelerator Flexible
[05.1999 - 04.2000] BU30#,346 |
78150-37470 |
— | ||
| replacement | |||||
|
78150C
|
78150C
78150-37472
Wire Assy, Accelerator Flexible
[05.1999 - 04.2000] BU30#,346 |
78150-37472 |
— | ||
|
78150C
|
78150C
78150-37471 Wire Assy, Accelerator Flexible[04.2000 - 04.2002] BU30#,346 |
78150-37471 |
US $75.71 |
||
| replacement | |||||
|
78150C
|
78150C
78150-37472
Wire Assy, Accelerator Flexible
[04.2000 - 04.2002] BU30#,346 |
78150-37472 |
— | ||
|
78150C
|
78150C
78150-37472
Wire Assy, Accelerator Flexible
[04.2002 - 06.2004] BU30#,346 |
78150-37472 |
— | ||
|
78183B
|
78183B
78183-37260 Clamp, Accelerator Control Cable[05.1999 - 06.2004] BU30#,346,RZU30#,340 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
78183-37260 |
US $3.20 |
||
|
78183B
|
78183B
78183-37290 Clamp, Accelerator Control Cable[05.1999 - 06.2004] BU306,346;BU301..DM6,T1,T5 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
78183-37290 |
US $4.95 |
||
|
78183B
|
78183B
78183-37300 Clamp, Accelerator Control Cable[05.1999 - 06.2002] BU30#,346,RZU300,340;XZU301,302,341,342..CNG,LPG TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
78183-37300 |
US $3.93 |
||
|
78189
|
78189
78208-37060 Bolt, Accelerator Pedal Stopper[05.1999 - 06.2004] XZU301,302,341,342..CNG,LPG;BU30#,346,BZU300,340,RZU30#..CNG,DSL,LPG |
78208-37060 |
US $2.33 |
||
|
78190
|
78190
78190-37010 Cable Assy, Accel Control W/throttle[05.1999 - 06.2004] XZU301,302,341,342..CNG,LPG;BU30#,346,BZU300,340,RZU30#,XZU300,320,330,340,350..CN G,DSL,LPG |
78190-37010 |
US $19.22 |
||
|
78410D
|
78410D
78314-95010 Nut, Choke[05.1999 - 06.2004] XZU301,302,341,342..CNG,LPG;BU30#,346,BZU300,340,RZU30#,XZU300,320,330,340,350..CN G,DSL,LPG |
78314-95010 |
from US $1.88 |
||
|
78411A
|
78411A
78411-95J01 Knob, Throttle Cable[05.1999 - 06.2004] XZU301,302,341,342..CNG,LPG;BU30#,346,BZU300,340,RZU30#,XZU300,320,330,340,350..CN G,DSL,LPG |
78411-95J01 |
from US $4.95 |
||
|
78481
|
78481
78481-37010 Clamp, Throttle Wire[06.1999 - 06.2004] XZU301,302,341,342..CNG,LPG;BU30#,346,BZU300,340,RZU30#,XZU300,320,330,340,350..CN G,DSL,LPG |
78481-37010 |
US $1.10 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.72 |
||
|
91651B0616
|
91651B0616
91651-B0616 BOLT WWASHER |
91651-B0616 |
from US $0.84 |
||
|
91651B0814
|
91651B0814
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.86 |
||
|
9011906899
|
9011906899
90119-06899 New Genuine Part |
90119-06899 |
US $1.31 |
||
|
9017010054
|
9017010054
90170-10054
Nut, Hexagon
|
90170-10054 |
— | ||
|
9046400731
|
9046400731
90464-00731 Clamp Or Clip(For Water Hose) |
90464-00731 |
US $2.48 |
||
|
9046806063
|
9046806063
90468-06063 CLIP |
90468-06063 |
US $1.61 |
||
|
9413000602
|
9413000602
94130-00602 New Genuine Part |
94130-00602 |
US $0.87 |
||
