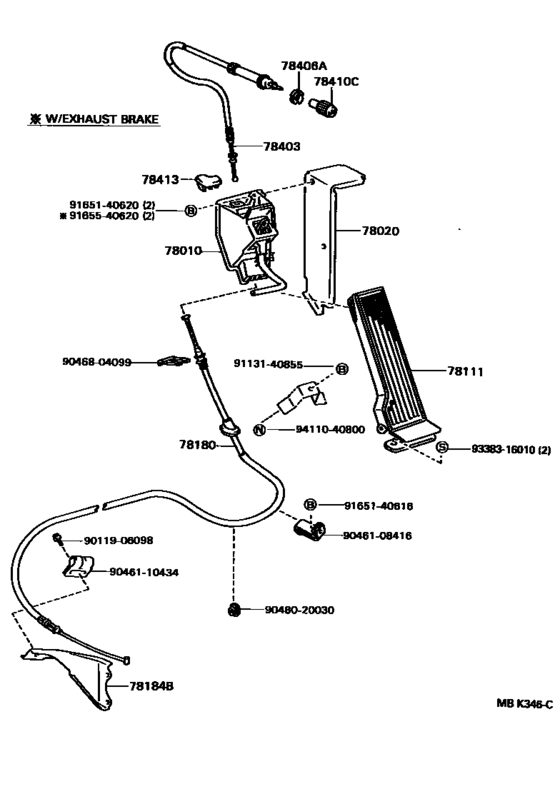

Accelerator Link ([01.1986 - ] (8601- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 1986 - 1995
- Sales region
- Japan
- Frame
- BU60
- grade
- N
- ENGINE
- B
- Model
- DYNA/ TOYOACE QUICK
- From
- 01.1986
- To
- 05.1995
- Gear Shift Type
- 5H
- No.of Doors
- 3D
- Vehicle Model
- DYN
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78010
|
78010
78202-90D00 Link, Accelerator[10.1989 - 05.1995] BU60 |
78202-90D00 |
US $113.57 |
||
|
78010
|
78010
78202-95010 Link, Accelerator[01.1986 - 10.1989] BU60 |
78202-95010 |
US $113.57 |
||
|
78010
|
78010
78202-95400 Link, Accelerator[01.1986 - 05.1988] BU60 W/EXHAUST BRAKE |
78202-95400 |
US $106.40 |
||
|
78020
|
78020
78114-90D03 Bracket Assy, Accelerator Control[01.1986 - 05.1995] BU60 |
78114-90D03 |
US $170.35 |
||
|
78111
|
78111
78110-95410 Pedal, Accelerator[01.1986 - 05.1995] BU60 |
78110-95410 |
from US $22.01 |
||
|
78180
|
78180
78150-90F00 Wire Assy, Accelerator[01.1986 - 08.1988] BU60 |
78150-90F00 |
US $75.71 |
||
|
78180
|
78180
78150-90F01 Wire Assy, Accelerator[08.1988 - 05.1995] BU60 |
78150-90F01 |
US $68.14 |
||
|
78180
|
78180
78150-90F02 Wire Assy, Accelerator[04.1989 -] BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ |
78150-90F02 |
US $68.72 |
||
|
78184B
|
78184B
78184-90B02 Bracket Sub-Assy, Accelerator Control Cable[01.1986 - 05.1995] BU60 |
78184-90B02 |
US $26.94 |
||
|
78403
|
78403
78404-90D00 Cable Sub-Assy, Throttle Control[01.1986 - 05.1995] BU60 |
78404-90D00 |
US $33.49 |
||
|
78406A
|
78406A
78314-95010 Nut, Choke[01.1986 - 05.1995] BU60 |
78314-95010 |
from US $1.88 |
||
|
78410C
|
78410C
78411-22010 Knob, Throttle Cable[01.1986 - 05.1995] BU60 |
78411-22010 |
US $8.91 |
||
|
78413
|
78413
78413-95701 Cover, Throttle Control Cable[10.1989 - 05.1995] BU60 |
78413-95701 |
US $2.18 |
||
|
9011906098
|
9011906098
90119-06098 BOLT |
90119-06098 |
US $1.43 |
||
|
9046108416
|
9046108416
90461-08416
New Genuine Part
|
90461-08416 |
— | ||
|
9046110434
|
9046110434
90461-10434 Clamp (For Accelerator Wire Set) |
90461-10434 |
US $3.06 |
||
|
9046804099
|
9046804099
90468-04099 New Genuine Part |
90468-04099 |
US $1.22 |
||
|
9048020030
|
9048020030
90480-20030 Grommet(For Instrument Panel) |
90480-20030 |
US $2.18 |
||
|
9113140855
|
9113140855
91131-40855 Bolt, Accelerator Pedal Stopper |
91131-40855 |
US $3.49 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.72 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.43 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
from US $0.84 |
||
|
9165540620
|
9165540620
91655-40620
Bolt(For Oil Receiver Pipe)
|
91655-40620 |
— | ||
| replacement | |||||
|
9165540620
|
9165540620
91651-60618 Bolt(For Oil Receiver Pipe) |
91651-60618 |
from US $1.16 |
||
|
9338316010
|
9338316010
93383-16010 New Genuine Part |
93383-16010 |
US $1.51 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.82 |
||
