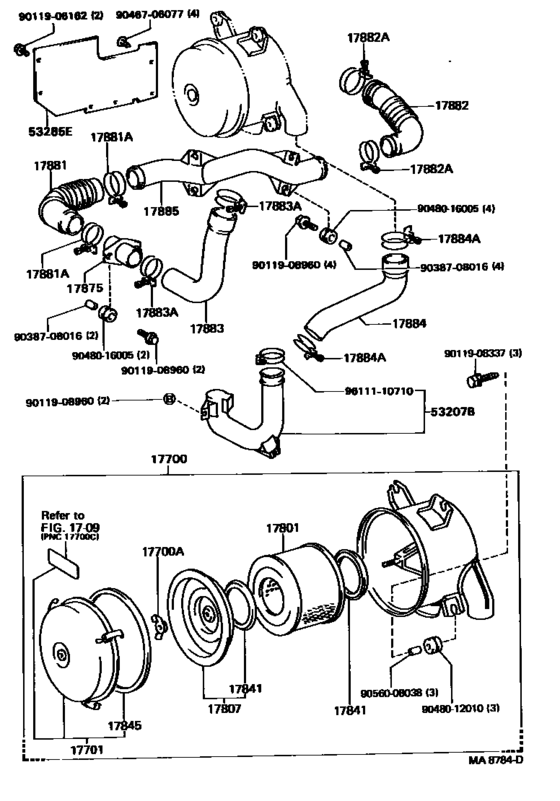

Air Cleaner ([01.1986 - ] (8601- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 1986 - 1995
- Sales region
- Japan
- Frame
- BU60
- grade
- N
- ENGINE
- B
- Model
- DYNA/ TOYOACE QUICK
- From
- 01.1986
- To
- 05.1995
- Gear Shift Type
- 5H
- No.of Doors
- 3D
- Vehicle Model
- DYN
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-54410 Cleaner Assy, Air[01.1986 - 05.1995] B..BU60 |
17700-54410 |
US $423.70 |
||
|
17700A
|
17700A
90175-08008 Nut, Wing(For Air Cleaner)[01.1986 - 05.1995] B..BU60 |
90175-08008 |
from US $2.45 |
||
|
17701
|
17701
17701-54210
Case Sub-Assy, Air Cleaner
[05.1988 - 05.1995] B..BU60 |
17701-54210 |
— | ||
|
17801
|
17801
17801-56020 Element Sub-Assy, Air Cleaner Filter[01.1986 - 05.1988] B..BU60 |
17801-56020 |
from US $33.72 |
||
|
17807
|
17807
17807-56011 Plate Sub-Assy, Air Cleaner Filter Set[01.1986 - 05.1995] B..BU60 |
17807-56011 |
US $40.07 |
||
|
17841
|
17841
17841-44030 Gasket, Filter Element[01.1986 - 05.1995] B..BU60 |
17841-44030 |
US $4.54 |
||
|
17845
|
17845
17845-56020 Gasket, Air Cleaner Cap[01.1986 - 05.1995] B..BU60 |
17845-56020 |
US $19.08 |
||
|
17875
|
17875
53297-90D00 Pipe, Intake Air Connector[01.1986 - 05.1995] B..BU60 |
53297-90D00 |
US $45.72 |
||
|
17881
|
17881
17881-56060 Hose, Air Cleaner, No.1[01.1986 - 05.1995] B..BU60 |
17881-56060 |
US $75.71 |
||
|
17881A
|
17881A
96111-10690 Clamp, Hose[01.1986 - 05.1988] B..BU60 MANIFOLD SIDE |
96111-10690 |
from US $2.87 |
||
|
17881A
|
17881A
96111-10780 Clamp, Hose(For Air Connector)[11.1986 - 05.1988] B..BU60 PIPE SIDE |
96111-10780 |
from US $3.44 |
||
|
17881A
|
17881A
96111-10800 Clamp, Hose(For Air Cleaner Duct)[01.1986 - 11.1986] B..BU60 PIPE SIDE |
96111-10800 |
from US $2.87 |
||
|
17882
|
17882
17881-56060 Hose, Air Cleaner, No.1[01.1986 - 05.1995] B..BU60 |
17881-56060 |
US $75.71 |
||
|
17882A
|
17882A
96111-10710 Clamp(For Air Cleaner Inlet Duct)[01.1986 - 05.1988] B..BU60 AIR CLEANER SIDE |
96111-10710 |
from US $2.87 |
||
|
17882A
|
17882A
96111-10750 Clamp, Hose(For Air Cleaner Duct)[08.1988 - 11.1988] B..BU60 エンジン側 |
96111-10750 |
from US $3.34 |
||
|
17882A
|
17882A
96111-10780 Clamp, Hose(For Air Connector)[11.1986 - 05.1988] B..BU60 ENGINE SIDE |
96111-10780 |
from US $3.44 |
||
|
17882A
|
17882A
96111-10800 Clamp, Hose(For Air Cleaner Duct)[01.1986 - 11.1986] B..BU60 ENGINE SIDE |
96111-10800 |
from US $2.87 |
||
|
17883
|
17883
59131-90D00 Hose, Air Cleaner, No.3[01.1986 - 12.1989] B..BU60 |
59131-90D00 |
US $60.72 |
||
| replacement | |||||
|
17883
|
17883
59131-90D01 Hose, Air Cleaner, No.3[01.1986 - 12.1989] B..BU60 |
59131-90D01 |
US $60.13 |
||
|
17883
|
17883
59131-90D01 Hose, Air Cleaner, No.3[12.1989 - 05.1995] B..BU60 |
59131-90D01 |
US $60.13 |
||
|
17883A
|
17883A
96111-10730 Clamp(For Air Cleaner Inlet, No.1)[01.1986 - 05.1988] B..BU60 PIPE SIDE |
96111-10730 |
US $2.87 |
||
|
17883A
|
17883A
96111-10750 Clamp, Hose(For Air Cleaner Duct)[12.1989 - 05.1995] B..BU60 PIPE SIDE |
96111-10750 |
from US $3.34 |
||
|
17883A
|
17883A
96111-10780 Clamp, Hose(For Air Connector)[11.1986 - 05.1988] B..BU60 AIR CLEANER SIDE |
96111-10780 |
from US $3.44 |
||
|
17883A
|
17883A
96111-10800 Clamp, Hose(For Air Cleaner Duct)[01.1986 - 11.1986] B..BU60 AIR CLEANER SIDE |
96111-10800 |
from US $2.87 |
||
|
17884
|
17884
59132-90D00 Hose, Air Cleaner, No.4[01.1986 - 09.1988] B..BU60 |
59132-90D00 |
US $67.85 |
||
|
17884A
|
17884A
96111-10710 Clamp(For Air Cleaner Inlet Duct)[01.1986 - 05.1988] B..BU60 AIR INLET SIDE |
96111-10710 |
from US $2.87 |
||
|
17884A
|
17884A
96111-10750 Clamp, Hose(For Air Cleaner Duct)[09.1988 - 05.1995] B..BU60 |
96111-10750 |
from US $3.34 |
||
|
17884A
|
17884A
96111-10780 Clamp, Hose(For Air Connector)[11.1986 - 05.1988] B..BU60 AIR CLEANER SIDE |
96111-10780 |
from US $3.44 |
||
|
17884A
|
17884A
96111-10800 Clamp, Hose(For Air Cleaner Duct)[01.1986 - 11.1986] B..BU60 AIR CLEANER SIDE |
96111-10800 |
from US $2.87 |
||
|
17885
|
17885
59111-90F00 Pipe, Air Cleaner[01.1986 - 05.1995] B..BU60 |
59111-90F00 |
US $116.48 |
||
|
53207B
|
53207B
53207-90D00 Duct Sub-Assy, Cool Air[09.1988 - 05.1995] BU60 |
53207-90D00 |
US $68 |
||
|
53285E
|
53285E
53285-26010 Guard, Cool Air[09.1993 - 05.1995] BU60 |
53285-26010 |
US $34.94 |
||
|
53285E
|
53285E
53285-90D00 Guard, Cool Air[09.1988 - 03.1989] BU60 |
53285-90D00 |
US $34.94 |
||
|
53285E
|
53285E
53285-90D01 Guard, Cool Air[03.1989 - 09.1993] BU60 |
53285-90D01 |
US $34.65 |
||
| replacement | |||||
|
53285E
|
53285E
53285-26010 Guard, Cool Air[03.1989 - 09.1993] BU60 |
53285-26010 |
US $34.94 |
||
|
9011906162
|
9011906162
90119-06162 New Genuine Part |
90119-06162 |
US $3.49 |
||
| replacement | |||||
|
9011906162
|
9011906162
90119-06361 BOLT WWASHER |
90119-06361 |
US $1.43 |
||
|
9011908337
|
9011908337
90119-08337 New Genuine Part |
90119-08337 |
US $2.04 |
||
|
9011908960
|
9011908960
90119-08960 New Genuine Part |
90119-08960 |
US $2.62 |
||
|
9038708016
|
9038708016
90387-08016 Collar(For Intake Air Connector) |
90387-08016 |
US $4.30 |
||
|
9046706077
|
9046706077
90467-06077 Clip(For Floor Carpet, Rear) |
90467-06077 |
US $2.15 |
||
|
9048012010
|
9048012010
90480-12010
Washer, Seal(For Air Cleaner)
|
90480-12010 |
— | ||
|
9048016005
|
9048016005
90480-16005 Grommet(For Air Cleaner Bracket) |
90480-16005 |
US $11.11 |
||
|
9056008038
|
9056008038
90560-08038 Spacer(For Air Cleaner) |
90560-08038 |
US $1.16 |
||
|
9611110710
|
9611110710
96111-10710 Clamp(For Air Cleaner Inlet Duct) |
96111-10710 |
from US $2.87 |
||
