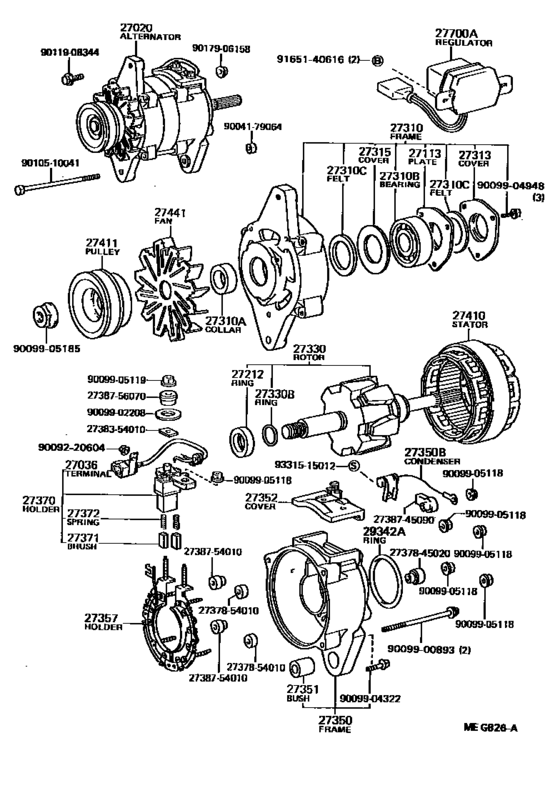

Alternator ([01.1986 - 08.1988] 24V 25A (8601-8808)) Diagram Toyota DYNA/ TOYOACE
- Year
- 1986 - 1995
- Sales region
- Japan
- Frame
- BU60
- grade
- N
- ENGINE
- B
- Model
- DYNA/ TOYOACE QUICK
- From
- 01.1986
- To
- 05.1995
- Gear Shift Type
- 5H
- No.of Doors
- 3D
- Vehicle Model
- DYN
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27020-56360 Alternator Assy[01.1986 - 05.1988] B..BU60 ２４Ｖ ２５Ａ,24V 25A |
27020-56360 |
US $1,099.28 |
||
|
27020
|
27020
27020-56431 Alternator Assy[10.1987 - 08.1988] B..BU60..N..3D ２４Ｖ ４０Ａ,ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
27020-56431 |
US $1,834.56 |
||
| replacement | |||||
|
27020
|
27020
27020-56433 Alternator Assy[10.1987 - 08.1988] B..BU60..N..3D ２４Ｖ ４０Ａ,ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
27020-56433 |
US $1,288.56 |
||
|
27020
|
27020
27060-58030 Alternator Assy[08.1988 - 09.1993] B..BU60..N ２４Ｖ ５０Ａ |
27060-58030 |
US $1,805.44 |
||
|
27020
|
27020
27060-58230 Alternator Assy[09.1993 - 05.1995] B..BU60..N ２４Ｖ ５０Ａ |
27060-58230 |
US $1,820 |
||
|
27036
|
27036
27036-56390
Terminal Sub-Assy, Lead Wire, Alternator
[10.1987 - 08.1988] B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
27036-56390 |
— | ||
|
27036
|
27036
27036-57080
Terminal Sub-Assy, Lead Wire, Alternator
[01.1986 - 05.1988] B..BU60 24V 25A |
27036-57080 |
— | ||
| replacement | |||||
|
27036
|
27036
27036-57060
Terminal Sub-Assy, Lead Wire, Alternator
[01.1986 - 05.1988] B..BU60 24V 25A |
27036-57060 |
— | ||
|
27113
|
27113
27312-42010
Plate, Bearing Retainer, Alternator
[08.1988 - 05.1995] B..BU60..N |
27312-42010 |
— | ||
|
27113
|
27113
27312-56070
Plate, Bearing Retainer, Alternator
[10.1987 - 08.1988] B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
27312-56070 |
— | ||
|
27113
|
27113
27312-57060
Plate, Bearing Retainer, Alternator
[01.1986 - 05.1988] B..BU60 24V 25A |
27312-57060 |
— | ||
|
27212
|
27212
27333-57060
Ring, Space(For Alternator Rotor)
[01.1986 - 05.1988] B..BU60 24V 25A |
27333-57060 |
— | ||
|
27310
|
27310
27310-54300
Frame Assy, Drive End, Alternator
[10.1987 - 08.1988] B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
27310-54300 |
— | ||
|
27310
|
27310
27310-56110
Frame Assy, Drive End, Alternator
[01.1986 - 05.1988] B..BU60 24V 25A |
27310-56110 |
— | ||
|
27310
|
27310
27310-58050
Frame Assy, Drive End, Alternator
[08.1988 - 05.1995] B..BU60..N |
27310-58050 |
— | ||
|
27310A
|
27310A
27412-57060
Collar Or Nut(For Alternator Drive End Frame)
[01.1986 - 05.1988] B..BU60 24V 25A |
27412-57060 |
— | ||
|
27310A
|
27310A
90099-19251
Collar Or Nut(For Alternator Drive End Frame)
[10.1987 - 08.1988] B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
90099-19251 |
— | ||
|
27310B
|
27310B
90099-10120
Bearing(For Alternator Drive End Frame)
[10.1987 - 08.1988] B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
90099-10120 |
— | ||
|
27310B
|
27310B
90099-10137 Bearing(For Alternator Drive End Frame)[01.1986 - 05.1988] B..BU60 24V 25A |
90099-10137 |
US $12.58 |
||
|
27310B
|
27310B
90099-10160
Bearing(For Alternator Drive End Frame)
[08.1988 - 05.1995] B..BU60..N |
90099-10160 |
— | ||
| replacement | |||||
|
27310B
|
27310B
90099-10219 Bearing(For Alternator Drive End Frame)[08.1988 - 05.1995] B..BU60..N |
90099-10219 |
from US $14.82 |
||
|
27310C
|
27310C
90099-02207
Felt(For Alternator Drive End Frame)
[10.1987 - 08.1988] B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
90099-02207 |
— | ||
|
27310C
|
27310C
90099-02209
Felt(For Alternator Drive End Frame)
[01.1986 - 05.1988] B..BU60 24V 25A |
90099-02209 |
— | ||
|
27313
|
27313
27313-57060
Cover, Alternator Felt, Inner No.2
[01.1986 - 05.1988] B..BU60 24V 25A |
27313-57060 |
— | ||
|
27315
|
27315
27315-56070
Cover, Alternator Felt, Inner No.1
[10.1987 - 08.1988] B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
27315-56070 |
— | ||
|
27315
|
27315
27315-57060
Cover, Alternator Felt, Inner No.1
[01.1986 - 05.1988] B..BU60 24V 25A |
27315-57060 |
— | ||
|
27330
|
27330
27330-56360
Rotor Assy, Alternator
[01.1986 - 05.1988] B..BU60 24V 25A |
27330-56360 |
— | ||
|
27330
|
27330
27330-56430
Rotor Assy, Alternator
[10.1987 - 08.1988] B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
27330-56430 |
— | ||
| replacement | |||||
|
27330
|
27330
27330-56433
Rotor Assy, Alternator
[10.1987 - 08.1988] B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
27330-56433 |
— | ||
|
27330
|
27330
27330-58050
Rotor Assy, Alternator
[08.1988 - 05.1995] B..BU60..N |
27330-58050 |
— | ||
|
27330B
|
27330B
90099-07103
Ring, Snap(For Alternator Rotor)
[01.1986 - 05.1988] B..BU60 24V 25A |
90099-07103 |
— | ||
|
27330B
|
27330B
90099-07108
Ring, Snap(For Alternator Rotor)
[10.1987 - 08.1988] B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
90099-07108 |
— | ||
|
27350
|
27350
27350-56110
Frame Assy, Rectifier End
[01.1986 - 05.1988] B..BU60 24V 25A |
27350-56110 |
— | ||
|
27350
|
27350
27350-56431
Frame Assy, Rectifier End
[10.1987 - 08.1988] B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
27350-56431 |
— | ||
|
27350B
|
27350B
90099-52066
Condenser, Alternator
[01.1986 - 05.1988] B..BU60 24V 25A |
90099-52066 |
— | ||
| replacement | |||||
|
27350B
|
27350B
90099-52035 Condenser, AlternatorRECTIFIER END [01.1986 - 05.1988] B..BU60 24V 25A |
90099-52035 |
US $13.11 |
||
|
27350B
|
27350B
90099-52082 Condenser, Alternator[10.1987 - 08.1988] B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
90099-52082 |
US $10.19 |
||
|
27350B
|
27350B
90099-52094 Condenser, Alternator[08.1988 - 12.1989] B..BU60..N |
90099-52094 |
US $15.29 |
||
|
27350B
|
27350B
90099-52103 Condenser, Alternator[12.1989 - 05.1995] B..BU60..N |
90099-52103 |
US $16.31 |
||
|
27351
|
27351
27351-56013
Bush(For Alternator Rectifier End Frame)
[01.1986 - 05.1988] B..BU60 24V 25A |
27351-56013 |
— | ||
|
27352
|
27352
27388-56430
Cover, Frame Brush
[10.1987 - 08.1988] B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
27388-56430 |
— | ||
|
27352
|
27352
27388-57060
Cover, Frame Brush
[01.1986 - 05.1988] B..BU60 24V 25A |
27388-57060 |
— | ||
| replacement | |||||
|
27352
|
27352
27388-56100
Cover, Frame Brush
[01.1986 - 05.1988] B..BU60 24V 25A |
27388-56100 |
— | ||
|
27357
|
27357
27357-54190
Holder, Alternator, W/rectifier
[01.1986 - 05.1988] B..BU60 24V 25A |
27357-54190 |
— | ||
|
27357
|
27357
27357-58050
Holder, Alternator, W/rectifier
[08.1988 - 05.1995] B..BU60..N |
27357-58050 |
— | ||
| replacement | |||||
|
27357
|
27357
27357-58160
Holder, Alternator, W/rectifier
[08.1988 - 05.1995] B..BU60..N |
27357-58160 |
— | ||
|
27370
|
27370
27370-42010
Holder Assy, Alternator Brush
[08.1988 - 05.1991] B..BU60..N |
27370-42010 |
— | ||
| replacement | |||||
|
27370
|
27370
27370-75060 Holder Assy, Alternator Brush[08.1988 - 05.1991] B..BU60..N |
27370-75060 |
from US $15.22 |
||
|
27370
|
27370
27370-57080
Holder Assy, Alternator Brush
[01.1986 - 05.1988] B..BU60 24V 25A |
27370-57080 |
— | ||
| replacement | |||||
|
27370
|
27370
27370-56210
Holder Assy, Alternator Brush
[01.1986 - 05.1988] B..BU60 24V 25A |
27370-56210 |
— | ||
|
27370
|
27370
27370-75060 Holder Assy, Alternator Brush[05.1991 - 05.1995] B..BU60..N |
27370-75060 |
from US $15.22 |
||
|
27370
|
27370
27373-57120
Holder Assy, Alternator Brush
[10.1987 - 08.1988] B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
27373-57120 |
— | ||
| replacement | |||||
|
27370
|
27370
27373-57121
Holder Assy, Alternator Brush
[10.1987 - 08.1988] B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
27373-57121 |
— | ||
|
27371
|
27371
27371-56070
Brush, Alternator
[01.1986 - 05.1988] B..BU60 24V 25A |
27371-56070 |
— | ||
| replacement | |||||
|
27371
|
27371
27371-54412 Brush, Alternator[01.1986 - 05.1988] B..BU60 24V 25A |
27371-54412 |
from US $3.32 |
||
|
27372
|
27372
27372-56070
Spring, Alternator Brush
[01.1986 - 05.1988] B..BU60 24V 25A |
27372-56070 |
— | ||
|
27410
|
27410
27410-56110
Stator Assy, Alternator
[01.1986 - 05.1988] B..BU60 24V 25A |
27410-56110 |
— | ||
|
27410
|
27410
27410-68150
Stator Assy, Alternator
[10.1987 - 08.1988] B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
27410-68150 |
— | ||
| replacement | |||||
|
27410
|
27410
27410-56430
Stator Assy, Alternator
[10.1987 - 08.1988] B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
27410-56430 |
— | ||
|
27411
|
27411
27411-57060
Pulley, Alternator
[01.1986 - 05.1988] B..BU60 24V 25A |
27411-57060 |
— | ||
|
27411
|
27411
27411-57061
Pulley, Alternator
[10.1987 - 08.1988] B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
27411-57061 |
— | ||
|
27411
|
27411
27411-58050
Pulley, Alternator
[08.1988 - 05.1995] B..BU60..N |
27411-58050 |
— | ||
|
27441
|
27441
27441-54070
Fan, Alternator
[10.1987 - 08.1988] B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
27441-54070 |
— | ||
|
27441
|
27441
27441-56090
Fan, Alternator
[01.1986 - 05.1988] B..BU60 24V 25A |
27441-56090 |
— | ||
|
27700A
|
27700A
27700-57040 Regulator Assy, Generator[01.1986 - 05.1988] B..BU60 24V 25A |
27700-57040 |
US $206.75 |
||
|
27700A
|
27700A
27700-57051
Regulator Assy, Generator
[10.1987 - 08.1988] B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
27700-57051 |
— | ||
|
27700A
|
27700A
27700-58020
Regulator Assy, Generator
[08.1988 - 09.1993] B..BU60 |
27700-58020 |
— | ||
|
27700A
|
27700A
27700-58040
Regulator Assy, Generator
[09.1993 - 05.1995] B..BU60 |
27700-58040 |
— | ||
| replacement | |||||
|
27700A
|
27700A
27700-58060 Regulator Assy, Generator[09.1993 - 05.1995] B..BU60 |
27700-58060 |
from US $127.36 |
||
|
29342A
|
29342A
90099-14055
Packing, Vacuum Pump
[01.1986 - 05.1988] B..BU60 24V 25A |
90099-14055 |
— | ||
|
2737845020
|
2737845020
27378-45020
Insulator, Alternator, No.1
|
27378-45020 |
— | ||
|
2737854010
|
2737854010
27378-54010
Insulator, Alternator, No.2
|
27378-54010 |
— | ||
|
2738354010
|
2738354010
27383-54010
Washer, Alternater Terminal Insulator, No.1
|
27383-54010 |
— | ||
|
2738745090
|
2738745090
27387-45090
Insulator, Terminal
|
27387-45090 |
— | ||
|
2738754010
|
2738754010
27387-54010
Insulator, Terminal
|
27387-54010 |
— | ||
|
2738756070
|
2738756070
27387-56070
Insulator, Terminal
|
27387-56070 |
— | ||
|
9004179064
|
9004179064
90041-79064
New Genuine Part
|
90041-79064 |
— | ||
|
9009220604
|
9009220604
90092-20604
Nut, Wire Adjusting, No.1
|
90092-20604 |
— | ||
| replacement | |||||
|
9009220604
|
9009220604
94120-40600 Nut, Wire Adjusting, No.1 |
94120-40600 |
US $3.05 |
||
|
9009900893
|
9009900893
90099-00893
BOLT
|
90099-00893 |
— | ||
|
9009902208
|
9009902208
90099-02208
New Genuine Part
|
90099-02208 |
— | ||
|
9009904322
|
9009904322
90099-04322
New Genuine Part
|
90099-04322 |
— | ||
|
9009904948
|
9009904948
90099-04948
New Genuine Part
|
90099-04948 |
— | ||
|
9009905118
|
9009905118
90099-05118
New Genuine Part
|
90099-05118 |
— | ||
|
9009905119
|
9009905119
90099-05119
New Genuine Part
|
90099-05119 |
— | ||
|
9009905185
|
9009905185
90099-05185 NUT |
90099-05185 |
US $1.67 |
||
|
9010510041
|
9010510041
90105-10041
New Genuine Part
|
90105-10041 |
— | ||
|
9011908344
|
9011908344
90119-08344 New Genuine Part |
90119-08344 |
US $1.40 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.95 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.72 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.43 |
||
|
9331515012
|
9331515012
93315-15012 SCREWWWASHER |
93315-15012 |
from US $0.74 |
||
